Mcl 24B

Request a Quote

About this product

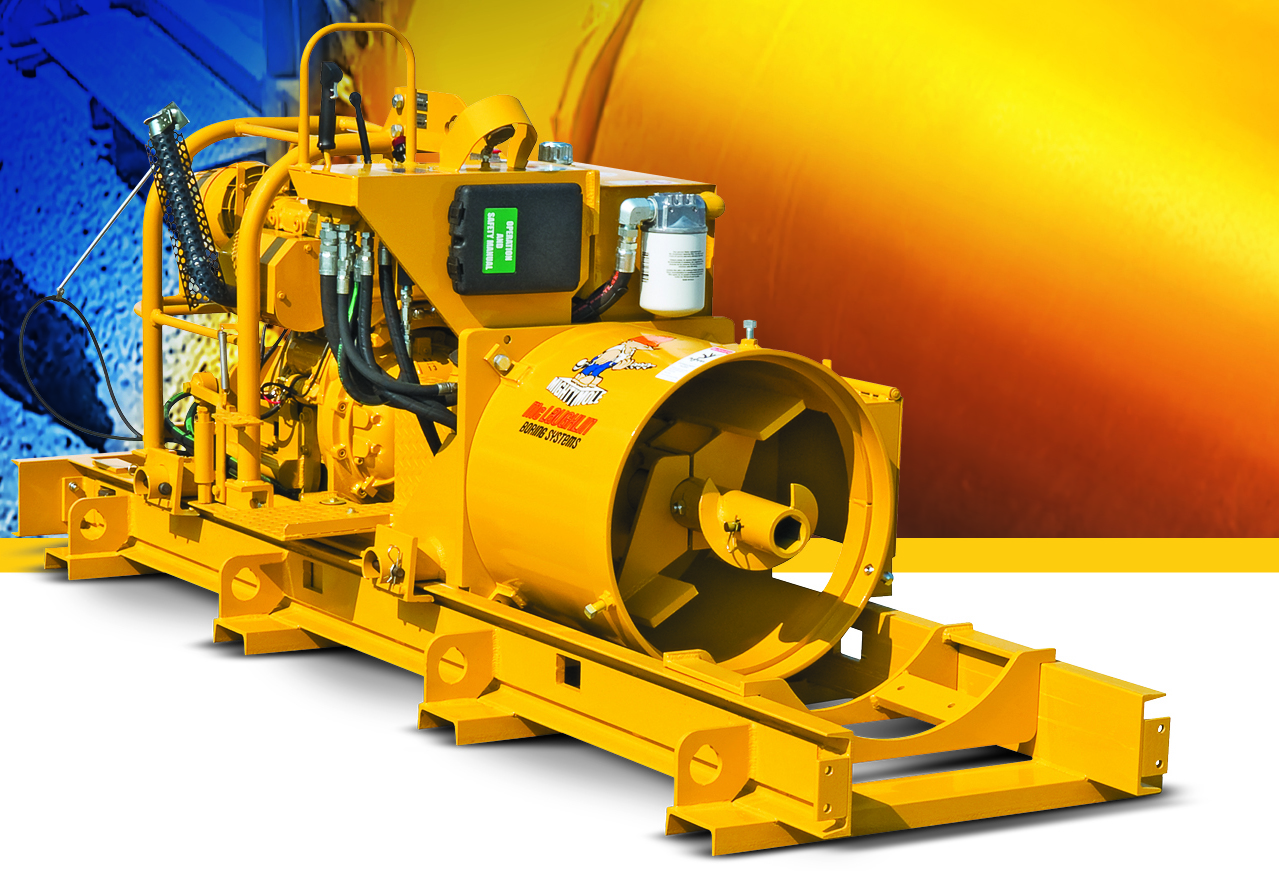

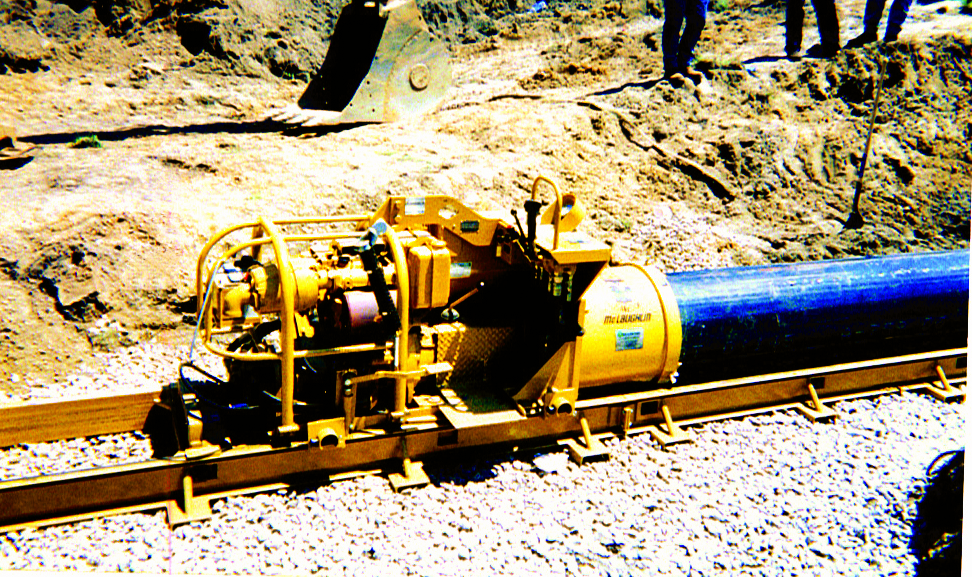

The McL-24B is a case auger boring machine for your (4”-24”) projects. This proven machine has stood the test of time and installed casing for years around the Globe. You can count on the 24B to deliver 115,000lbs of thrust—day in and day out.

Product Videos

Key Features

SAFETY

Operator Presence Control – Hydraulic Clutch combined with Operator control station located on the RIGHT side of machine keeps operator out of the danger area.

MORE THRUST

Dual hydraulic rams offer long 42” stoke and deliver 115,000 lb of thrust—37% more than the competitive models.

PROVEN DEPENDABILITY

High-torque air-cooled Deutz diesel engine keeps the 24B on the job with proven dependability.

Proven Dependability. High-torque air-cooled Deutz diesel engine keeps the 24B on the job with proven dependability.
Protection from Debris. Tubular steel cage design protects components from damage and the hydraulic dog plate cylinder is shielded from debris.

PROTECTION FROM DEBRIS

Tubular steel cage design protects components from damage and the hydraulic dog plate cylinder is shielded from debris.

LOW ON WEAR AND TEAR

Low-vibration mounts on the engine and transmission save wear and tear.

Efficient Design. Extended casing pusher and paddle design increases spoil ejection, moving it farther out of your way. Safety Operator Presence Control
Efficient Design MCL24B

EFFICIENT DESIGN

Extended casing pusher and paddle design increases spoil ejection, moving it farther out of your way.
SAFETY Operator Presence Control – Hydraulic Clutch

Available Options

On Target Steering System

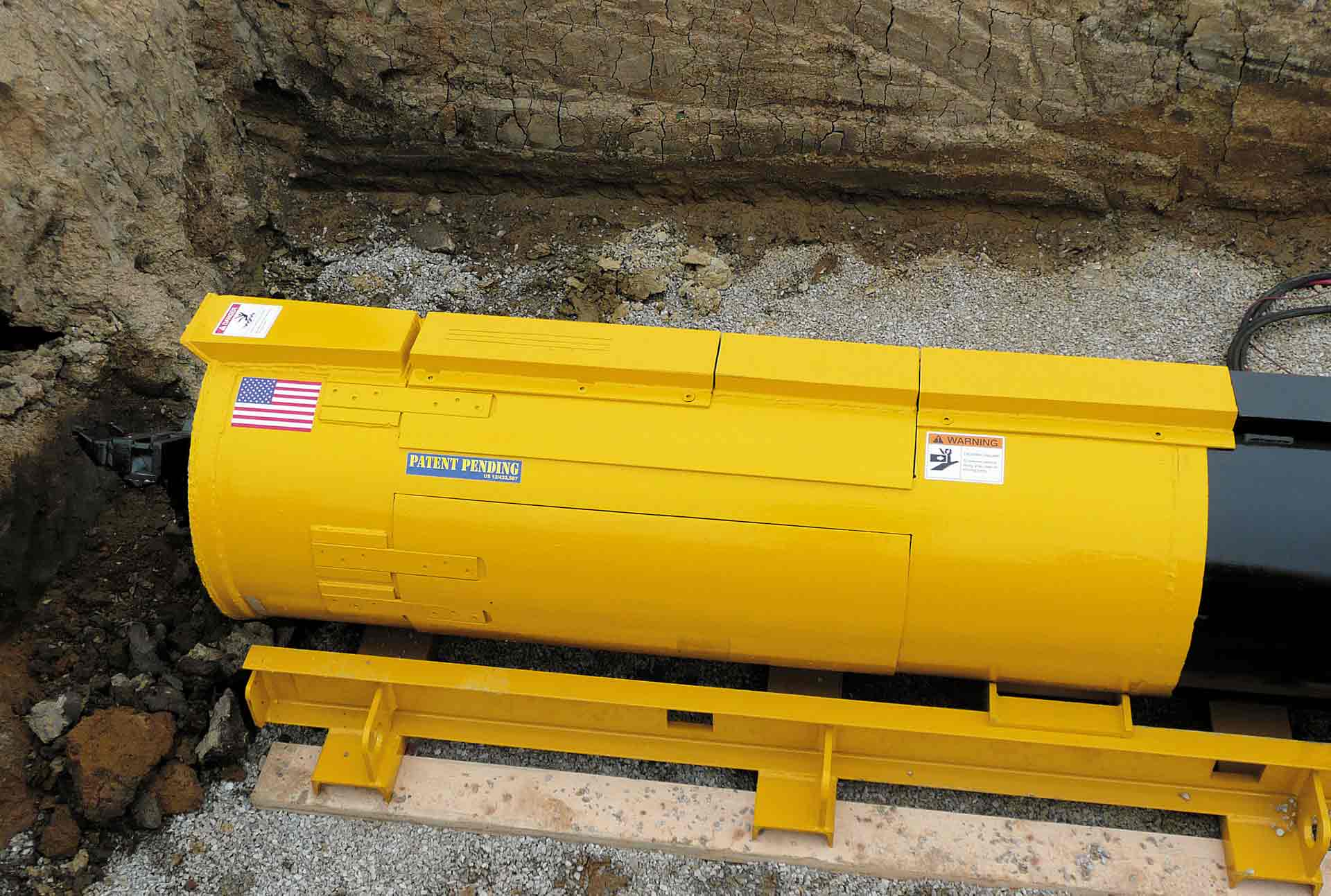

On Target Steering Head

The ON TARGET system allows contractors to also control the direction of the bore in a lateral movement, providing more accuracy for difficult on-grade bores ranging from 16 to 60 inches in diameter.

MCL54/60

MCL54/60

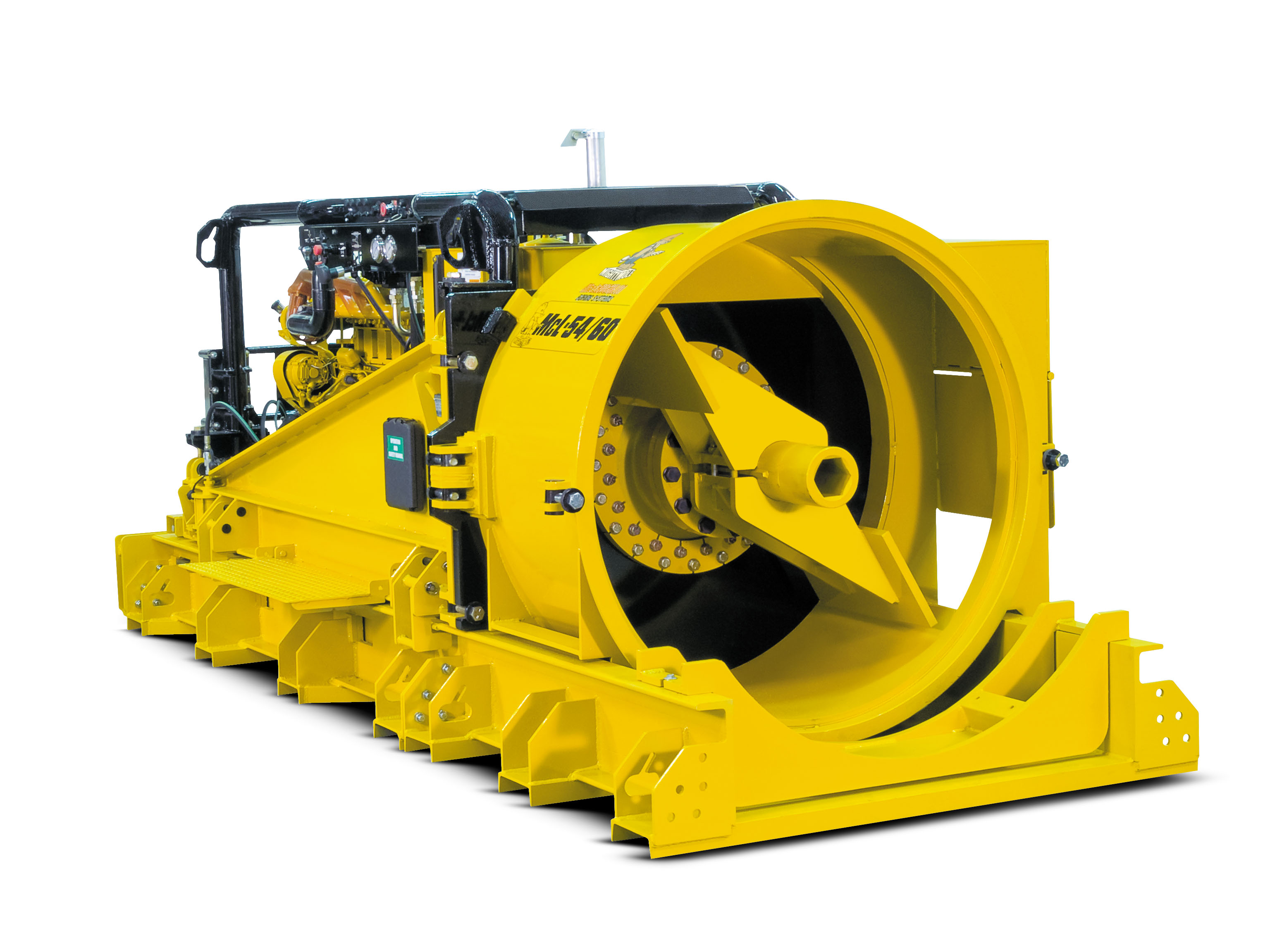

The McLaughlin McL-54/60 is a turbo charged diesel auger boring machine (for 16”—60” casing installations). With nearly 1,000,000 lbs of thrust this machine is capable of doing your longer bores in tough conditions.

MCL30/36B

MCL30/36B

The McL-30/36B is a case auger boring machine (10”-36”) that is equipped to handle the toughest job, and you can count on it to deliver 230,000 foot pounds of pushing power with every thrust—day in and day out.

Literature

Literature

Specifications

McL-24B
 Boring Range 4″ – 24″ (10.2 – 61 cm) cased bore
 Engine Deutz diesel, air-cooled, 31 hp (22.8 kw) @ 2800 RPM
 Transmission 3 Forward Speeds, Reverse
 Clutch OPC hydraulic clutch (Pat. # 4,976,321)
 Final Drive Dual Planetary, 2.25″ (5.7 cm) hex
 Auger Torque 8,512 ft/lb (11,540.7 Nm) peak torque in 1st gear
 Forward Thrust 115,000 lb (57.5 tons) @ 3000 psi (207 bar), hydraulic
 Dog Plate Hydraulically activated from control console
 Hydraulic Parameters Gear ump max pressure 3000 psi (206.8 bar), 14.5 gpm (54.9 L/min @ 2,800 RPM
 Hydraulic Filtration Spin-on filter (10 micron)
 Fuel Tank 5.2 gal (19.7 L)
 Machine 39″ (99.1 cm) W x 93.25″ (236.9 cm) L x 51.5″ (130.8 cm) H
 Centerline 16.875″ (42.9 cm)
 Carriage 2,900 lbs (1,315.4 kg)
 Track 63.8″ (162.1 cm) W x 120″ (304.8 cm) L x 9.25″ (23.5 cm) H – 565 lbs (257 kg)
 Options Available Control Mole™ water level steering kits for grade bores
