Mcl 36/42C

Request a Quote

About this product

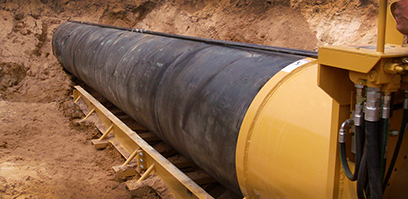

The McLaughlin McL-36/42C auger boring machine (12″-42″) is equipped to handle the toughest jobs with power-train construction and a heavy gear box and OPC hydraulic clutch for increased speed and safety.

Product Videos

Key Features

EASY CONTROL

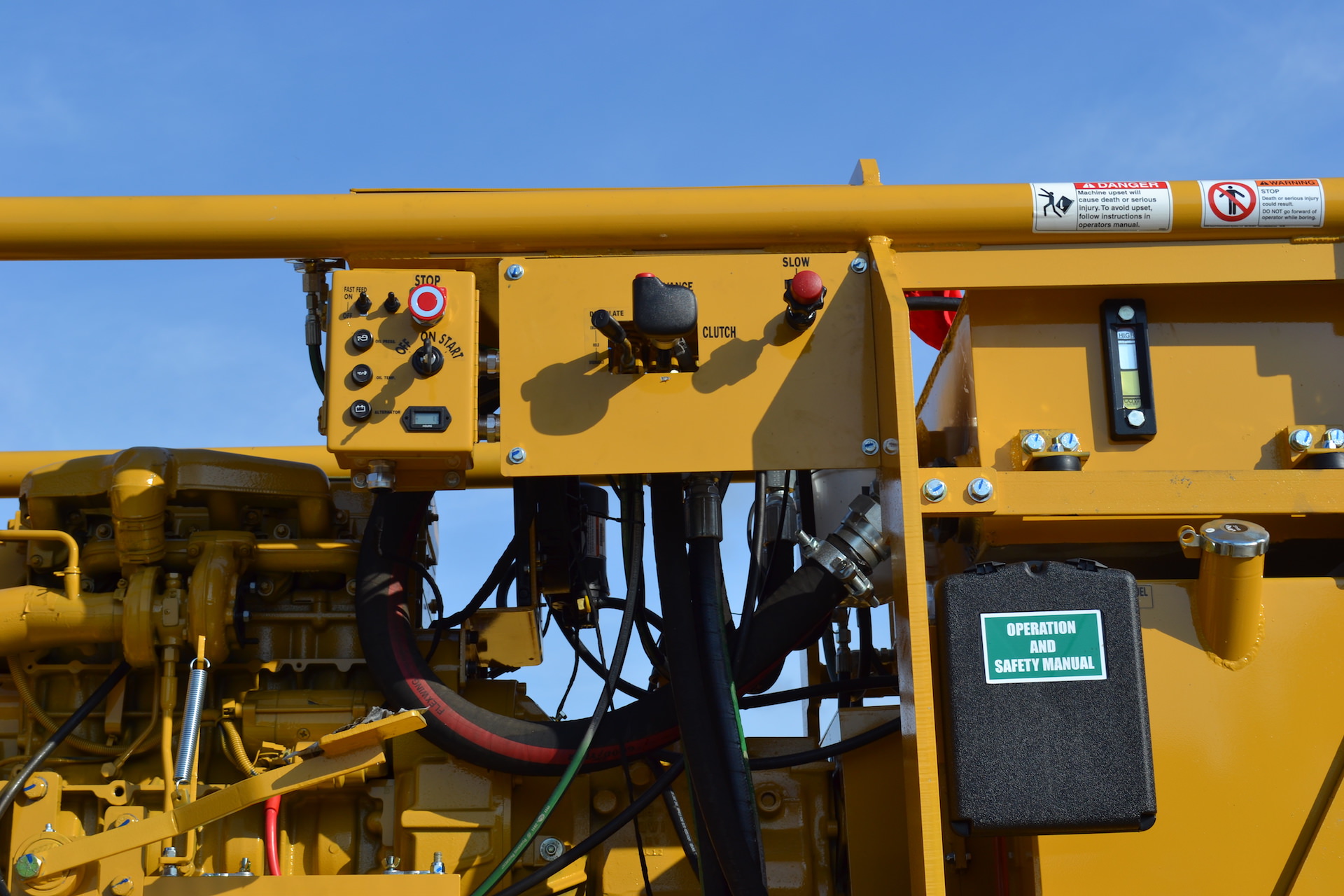

Pistol-grip control is designed for convenient operation of OPC hydraulic clutch, auger rotation and machine thrust. Guard protects controls from accidental engagement.

MORE POWER

Three hydraulic rams with extended stroke and 400,000 thrust work to increase drilling time and crew productivity.

MACHINE LONGEVITY

The exclusive gear box cooling system features larger differential planetary gear box and forced air cooling system that extends the gear box life.

Available Options

MCL 24B

The McL-24B is a case auger boring machine for your (4”-24”) projects. This proven machine has stood the test of time and installed casing for years around the Globe.

Cradle Boring Machine

The McLaughlin CBM48 is a cradle boring machine for cased auger boring from 16” to 48”.

On Target Auger Boring Steering System

The operator friendly screen at a glance shows the accuracy of peak mode combined with the speed of null mode.

Literature

Literature

Specifications

Boring range
  • 12″ to 42″ (30.5 cm to 106.7 cm)
Engine
  • 75 hp ISO max (55.9 kW) turbocharged, air-cooled Deutz diesel engine with 12V electric start
Transmission
  • 4 forward speeds, 1 reverse with Operator Presence Control (OPC) hydraulic clutch
Auger drive

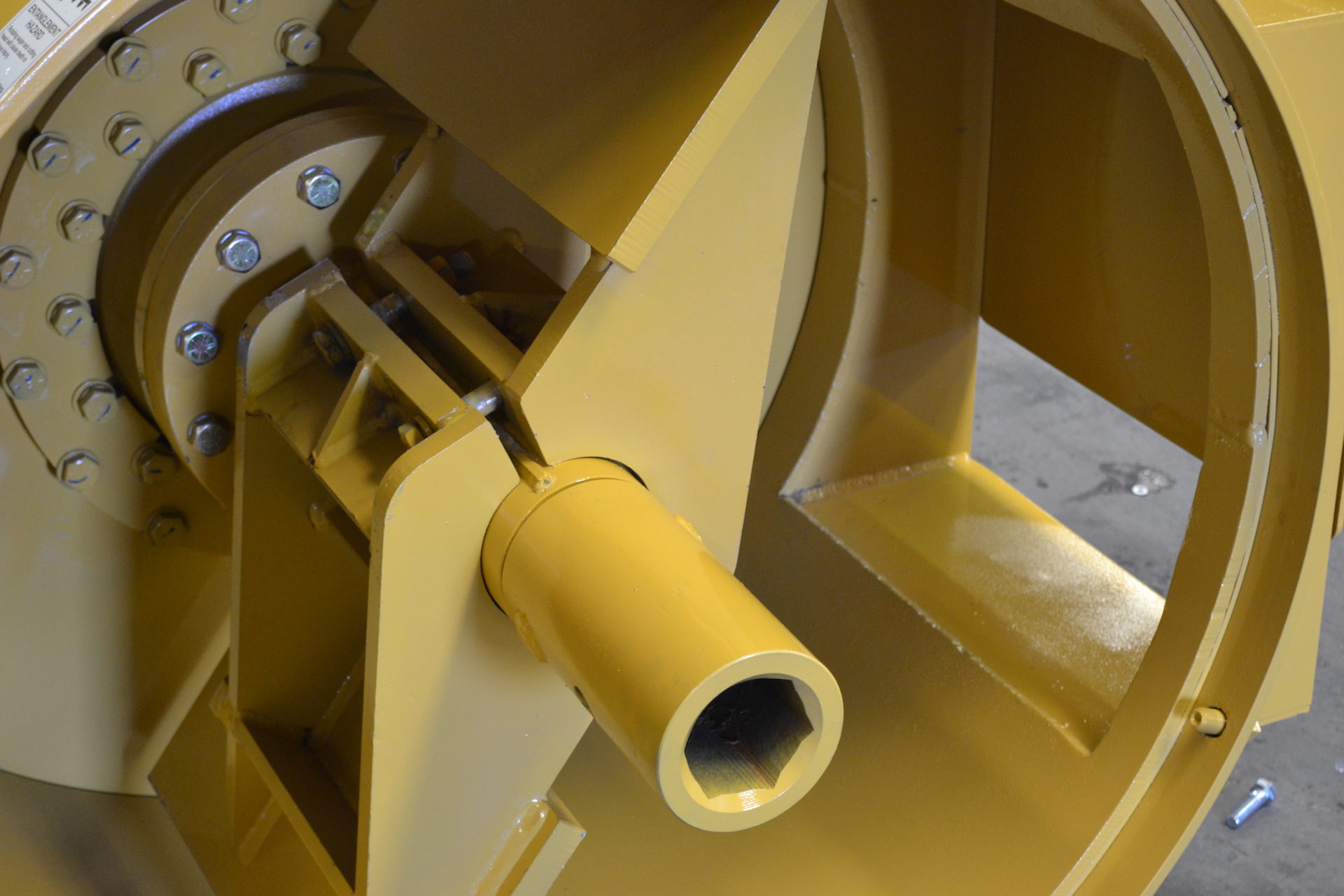

  • 3″ (7.6 cm) hex
Auger torque
  • 47,000 ft./lbs. (63,723.4 Nm) in first gear
Forward thrust
  • 400,000 lbs (1,779.3 kN) @ 3,500 psi (241.3 bar)
Dog plate
  • Hydraulically actuated
Bore centerline
  • 26.25″ (66.7 mm)
Carriage dimensions
  • 62″ W x 117.25″ L x 54.75″ H (157.5 cm x 297.8 cm x 139.1 cm)
Carriage weight
  • With 36″ (91.4 cm) master pusher: 7,400 lbs (3356.6 kg); With 42″ (106.7 cm) master pusher: 7,500 lbs (3,401.9 kg)
