Mcl 54/60

Request a Quote

About this product

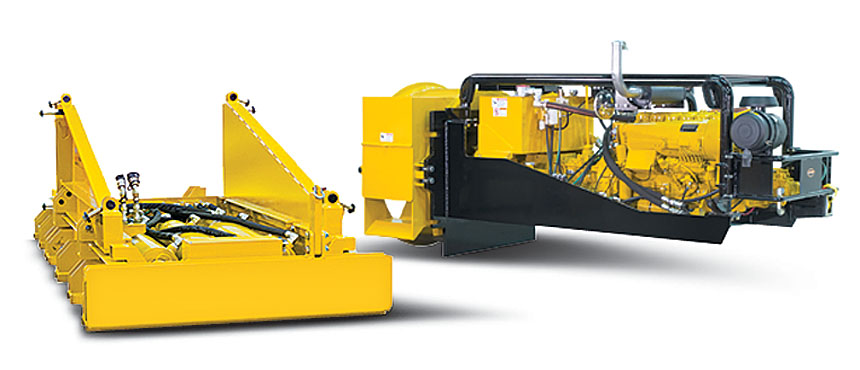

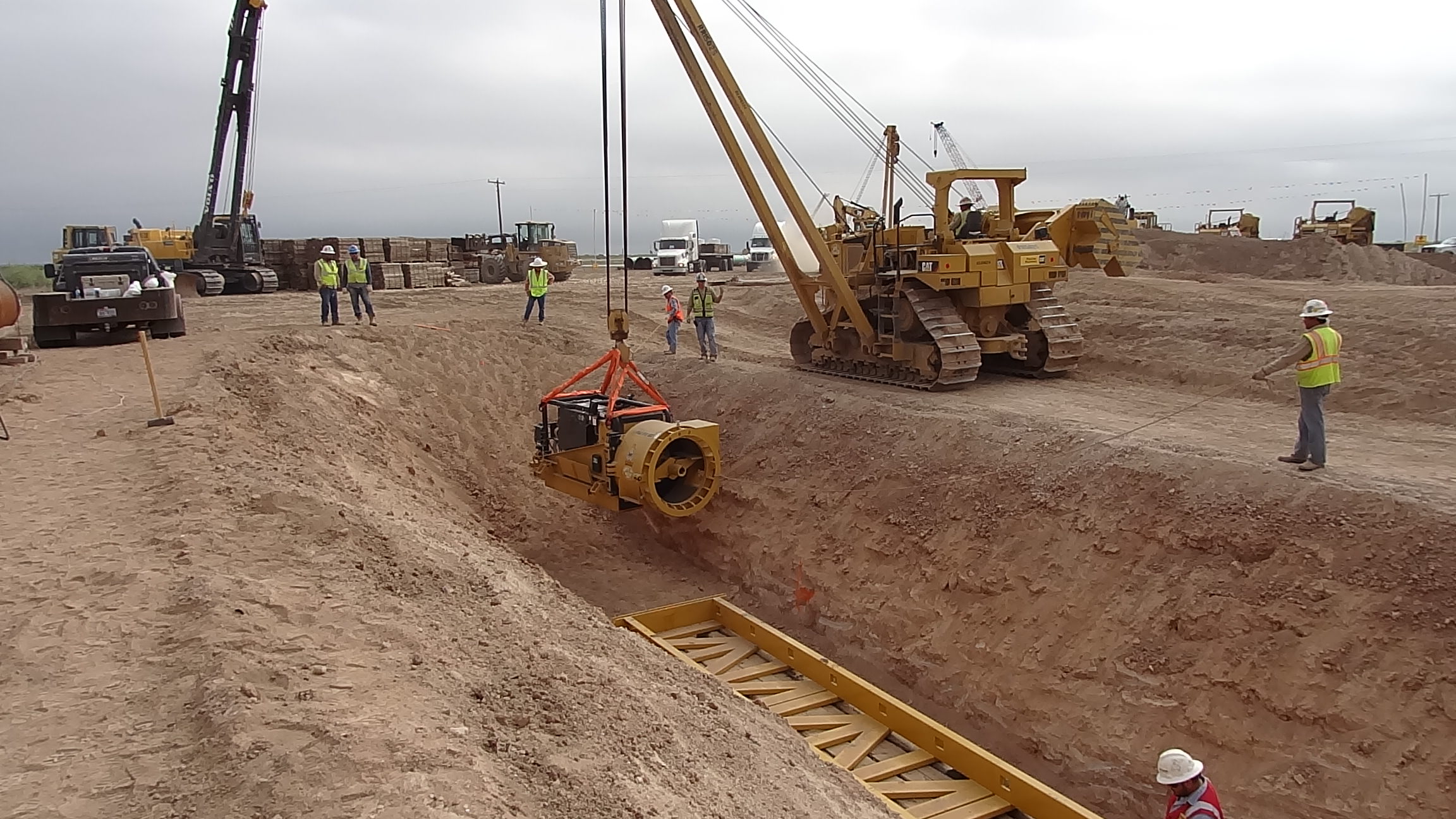

The McLaughlin McL-54/60 is a turbo charged diesel auger boring machine (for 16”—60” casing installations). With nearly 1,000,000 lbs of thrust this machine is capable of doing your longer bores in tough conditions. With over 30 years this machine has proven itself in the field. Count on McLaughlin and the 54/60 for your next big project.

Product Videos

Key Features

FASTER EXECUTION

Fast Feed ™ allows hydraulic fluid to be diverted to one cylinder allowing for faster dog plate repositioning and machine retraction.

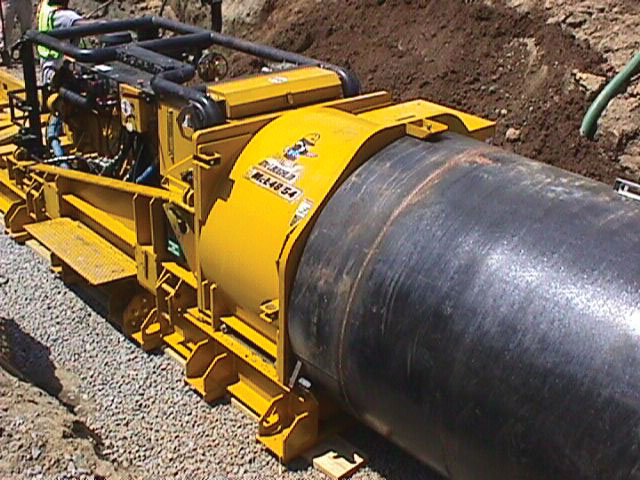

MCL-54/60
MCL-54/60

REDUCED RISK OF ROLLOVER

Patented Operator Presence Control (OPC) clutch and the low machine profile greatly reduce the risk of rollover, which is critical for high-torque auger machines.

INCREASE SPEED

Long-stroke triple cylinders and an auto hydraulic dog plate help increase efficiency and speed.

ADJUSTABLE THRUST

Three hydraulic rams with auto thrust control and infinitely adjustable speed provide 950,000 lbs of Thrust!

OPERATOR SAFETY

Operator control station located on the RIGHT side of machine for reduced role over risk and to keep operator out of spoil piles.

MCL-54/60

WEIGHT REDUCTION

Split design reduces weight when moving machine in and out of excavations.

Related Products

On-Target Steering System

The self-contained control station controls the movement of the steering head and includes charged grade indicator. Control station also maintains all hydraulic, water and electrical lines.

Cradle Boring Machine

The McLaughlin CBM48 is a cradle boring machine for cased auger boring from 16” to 48”.

MCL-24B

The McL-24B is a case auger boring machine for your (4”-24”) projects. You can count on the 24B to deliver 115,000lbs of thrust—day in and day out.

Literature

Literature

Specifications

Boring Range
  • 16″ to 60″ (40.6 cm to 152.4 cm) cased bore
Engine
  • Air-cooled, in-line 6-cylinder diesel, turbo charged; 12 VDC electric system; 174 hp Gross Int. (ISO) (127 kW) @ 2300 RPM; and 168 hp Gross Cont. (ISO) (123.6 kW) @ 2300 RPM
Transmission
  • 4 forward speeds, 1 reverse
Clutch
  • Hydraulic clutch with OPC
Final Drive
  • Planetary reduction, 4” (10.2 cm) hex chuck
Auger Torque
  • 108,000 ft/lb peak (146,428.3 Nm) in low gear
Forward Thrust
  • 950,000 lb (475 tons) max. @ 5000 psi (344.7 bar) with infinitely adjustable thrust speed
Dog Plate
  • Hydraulically activated with dog pin indicators and fast feed
Hydraulic Parameters
  • 5000 psi (344.7 bar) max. system; Pressure comp. pump with load sense; 48 gpm (181.7 lpm) @ 2500 RPM; Hydraulic tank capacity 58 gallon (219.6 L); and Oil level sight gauge and temp. cleanout ports
Hydraulic Filtration
  • Suction strainer—100 mesh in-tank return filter—12 micron replaceable element
Fuel Tank
  • 15 gallon (56.8 L) capacity with sight gauge
Machine
  • 74” (188 cm) W x 12’6” (381 cm) L x 64” (162.6 cm) H
Centerline
  • 32.5” (82.6 cm)
Carriage
  • 7560 lb (3429.2 kg)
Track
  • 66” (167.6 cm) W x 9′ (274.3 cm) L x 14.5” (36.8 cm) H—1500 lb (680.4 kg)
Track Extension
  • 5′ (152.4 cm) – 950 lb (430.9 kg)
Push Plate
  • 420 lb (190.5 kg)
Options Availabile
  • Control Mole™ water level steering kits for grade bores
