About this product

The On-Target Steering System (OTS) is designed to work with any auger boring system ranging from 16 to 60 inches in diameter. The OTS features a 50 gallon water tank and 6500 psi hydraulic pump to provide easy maintenance of all hydraulic, water and electrical lines.

OnTarget2
OnTarget3
OnTarget4
OnTarget5
OnTarget6
OnTarget8

Product Videos

Key Features

ONE PASS INSTALL

Installs on-grade/on-line casings in one pass compared to the multiple passes required with pilot tube guided boring.

Efficiency on the Job. Completes longer on-grade bores compared to other methods, at a reduced cost, while helping contractors complete more bores in a time-efficient manner.

CHECKING LINE & GRADE

No need to pull augers to check line and grade, saving time and money.

REAL TIME STEERING

Steering adjustments are made from the from the safety from the launch pit.

Efficiency on the Job. Completes longer on-grade bores compared to other methods, at a reduced cost, while helping contractors complete more bores in a time-efficient manner.
Self-Contained Control Station. Self- contained control station controls the movement of the steering head and all hydraulic, water and electrical lines.

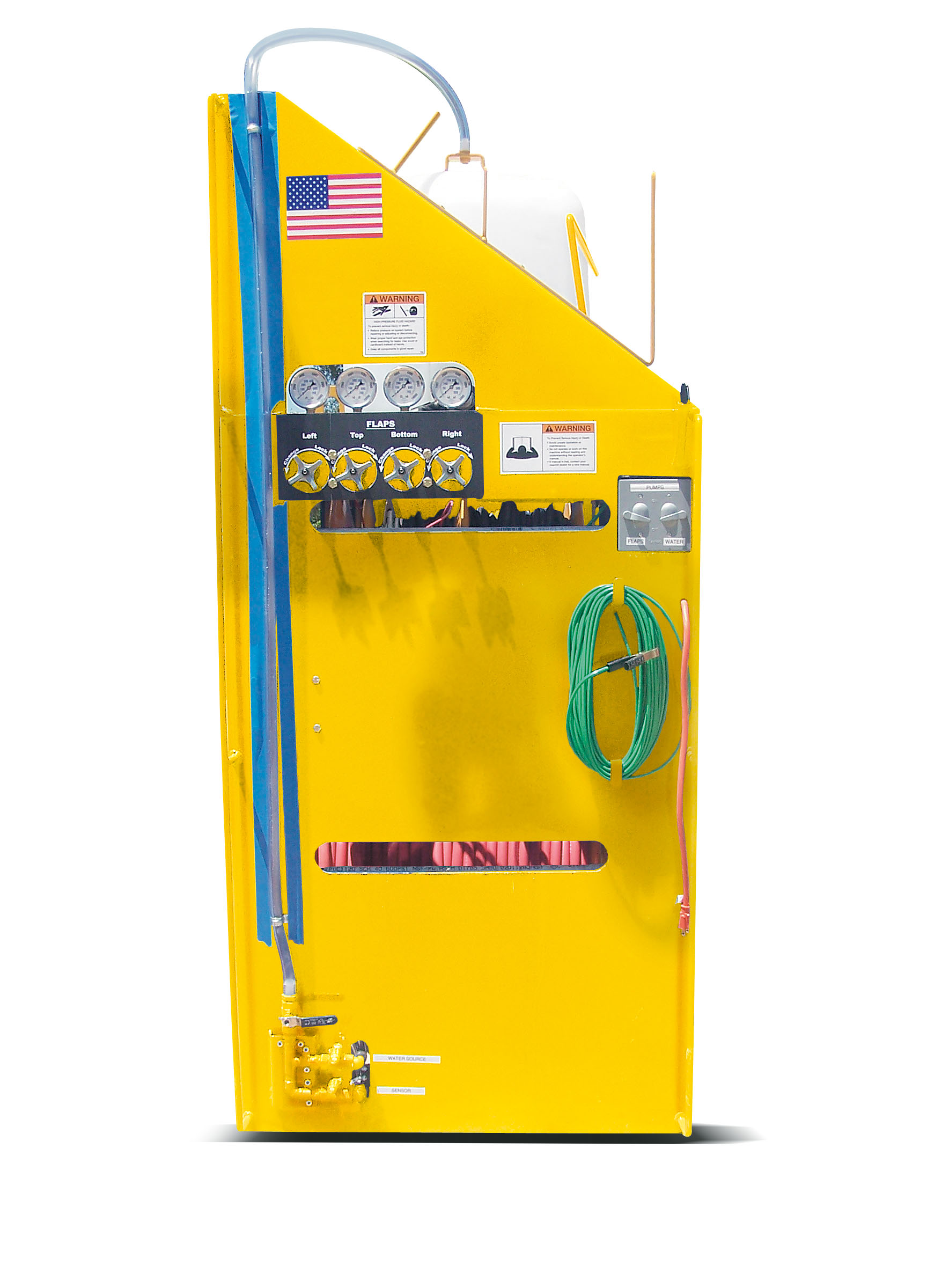

CONTROL STATION

Works for all OTS heads, fully self contained, recirculating tank for water level including charge pump, self-contained lubricating system, set up for fluid/bentonite injection, pitch indicator ready, easy to operate.

BENTONITE INJECTION PORT

A means to pump bentonite around the steering head and casing, to reduce friction, as the pipe goes through the ground.

Efficiency on the Job. Completes longer on-grade bores compared to other methods, at a reduced cost, while helping contractors complete more bores in a time-efficient manner.
Self-Contained Control Station. Self- contained control station controls the movement of the steering head and all hydraulic, water and electrical lines.

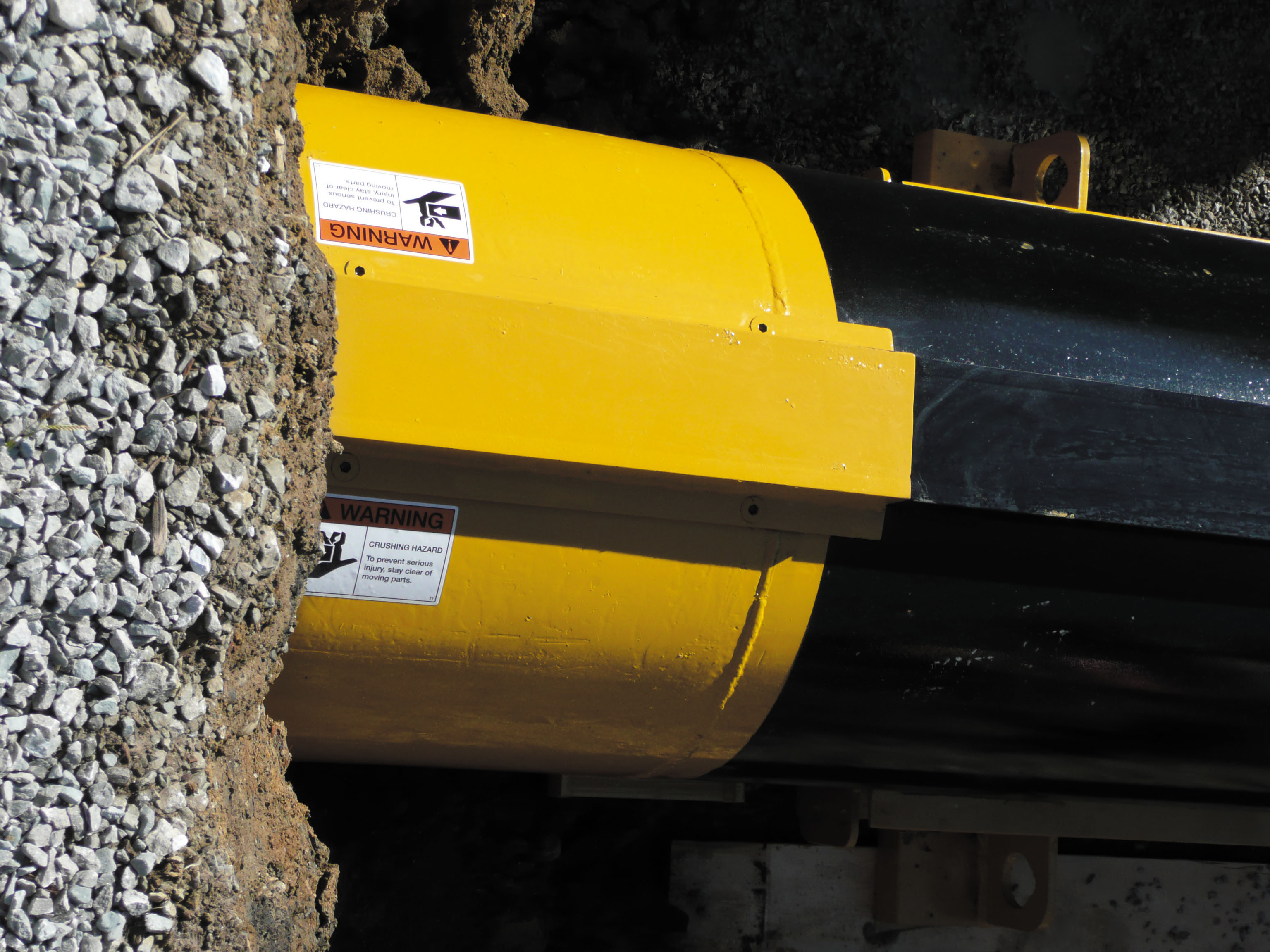

ON-LINE, ON-GRADE PIPE

The OTS heads are designed to complete crossings on-line and grade in many ground conditions including sand, clay, shale, above or below the water table.

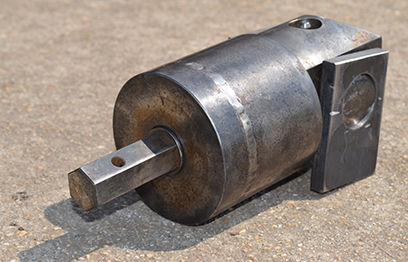

Auger Accessories

Auger Flight

Auger Flight

McLaughlin offers both wound flight for smaller diameter auger as well as pressed flight for diameters from 3” to 60” Diameter.

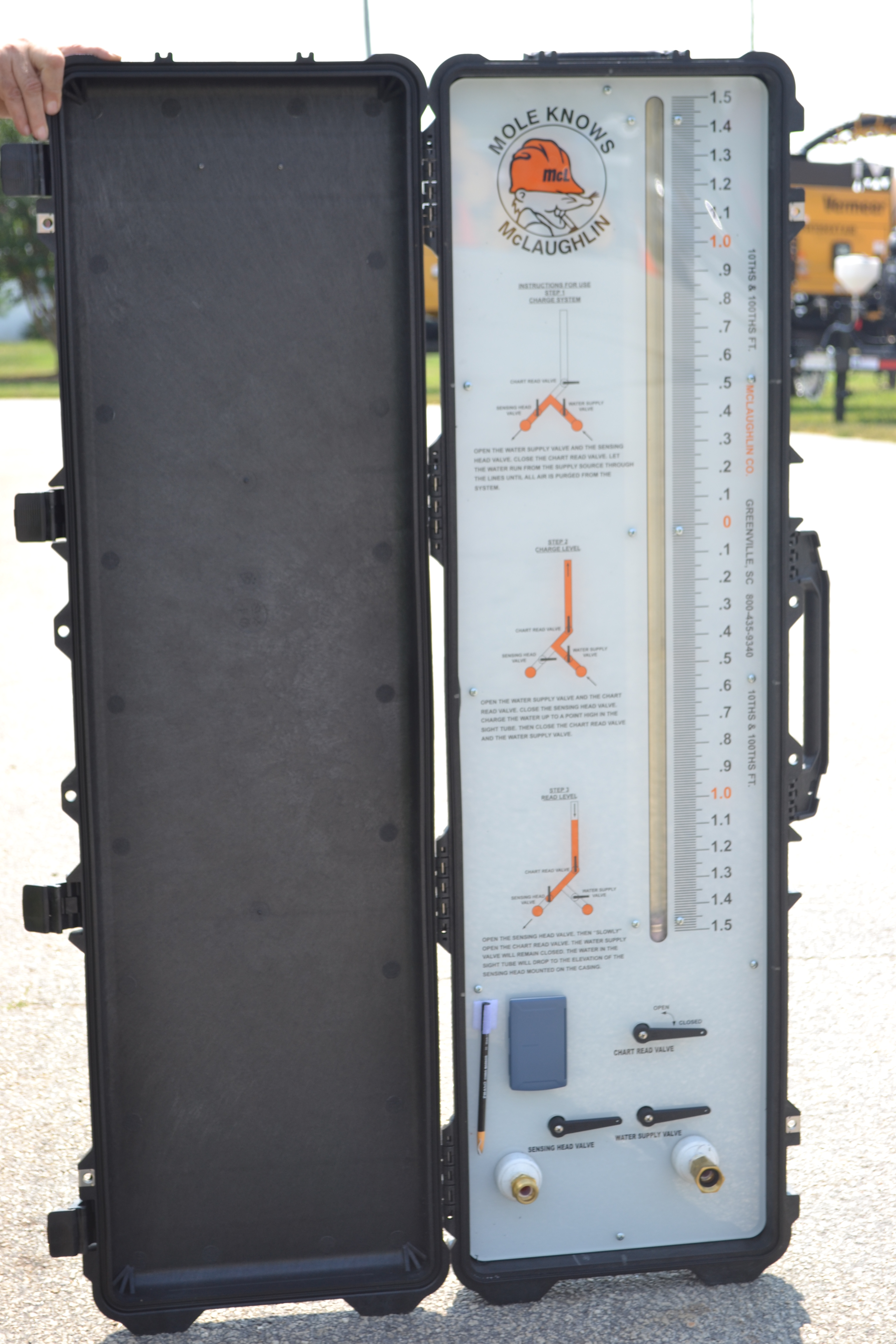

McLaughlin Grade Indicator

McLaughlin Grade Indicator

The McLaughlin grade indicator includes a calibrated site tube and valve controls for purging, charging and topping off the system. All are housed in a high-impact padded case with carrying handle to protect the instuments.

Grade Maintenance Kit

Grade Maintenance Kit

Grade Maintenance Kit can be built with a hinged lead casing section which can be raised or lowered via a screw adjustment from the boring pit. The McLaughlin kit includes; turnbuckle, two hinges and mounting hardware

Literature

Literature

Specifications

Weight
  • 2800 lb (1270.1 kg)
Width
  • 32″ (81.3 cm)
Length
  • 95” (241.3 cm)
Height
  • 78” (198.1 cm)
Hose Length
  • 400’ (121.9 m)
Hydraulic Pressure
  • 6500 psi (448.1 bar)
Water Pump
  • 1/4 hp (.2 kW)
Water Capacity
  • 50 gal (189.3 L)
Battery
  • 12 volt for alignment lights
Power Source Required
  • 120 volt

Steering Head Diameter and Weight

16" (40.6 cm)
  • 1200 lb (544.3 kg)*
24" (60 cm)
  • 2300 lb (1043.3 kg)
30" (76.2 cm)
  • 4200 lb (1905.1 kg)
36" (91.4 cm)
  • 5300 lb (2404 kg)
42" (106.7 cm)
  • 6200 lb (2812.3 kg)*
48" (121.9 cm)
  • 7000 lb (3175.1 kg)*
60" (152.4 cm)
  • 8700 lb (3946.3 kg)*
