About this product

The Vermeer CS418B core saw is designed to cut 4 – 18 inch (10 – 46 cm) diameter holes in hard surfaces, like asphalt and concrete, to help utility contractors safely locate and excavate underground utilities. The core saw is built on a portable, compact trailer measuring 137 inches (348 cm) long and 69 inches (175 cm) wide for easy jobsite access and can be towed with a ½ ton pickup truck. Core sawing creates less disruption to traffic, less manual labor and preserves the road integrity when compared to saw cutting. Powered by a 25 HP Kohler EFI engine, the core saw has a two speed operation that can generate up to 380 RPM for varying job site conditions. The CS418B features an on-board water tank to cool the saw bit and can be easily moved into position with the telescoping and pivoting arm.

Product Videos

Key Features

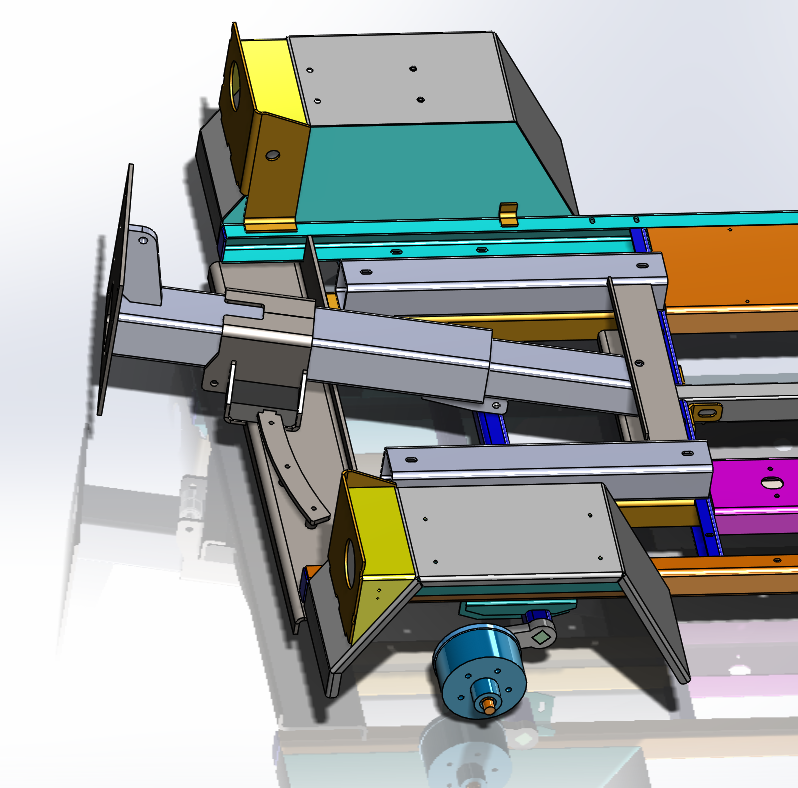

PIVOT BASE

Telescoping boom sits on pivot table and covers an infinite range of positions within left to right sweep and 16″ range in and out.

pivot base

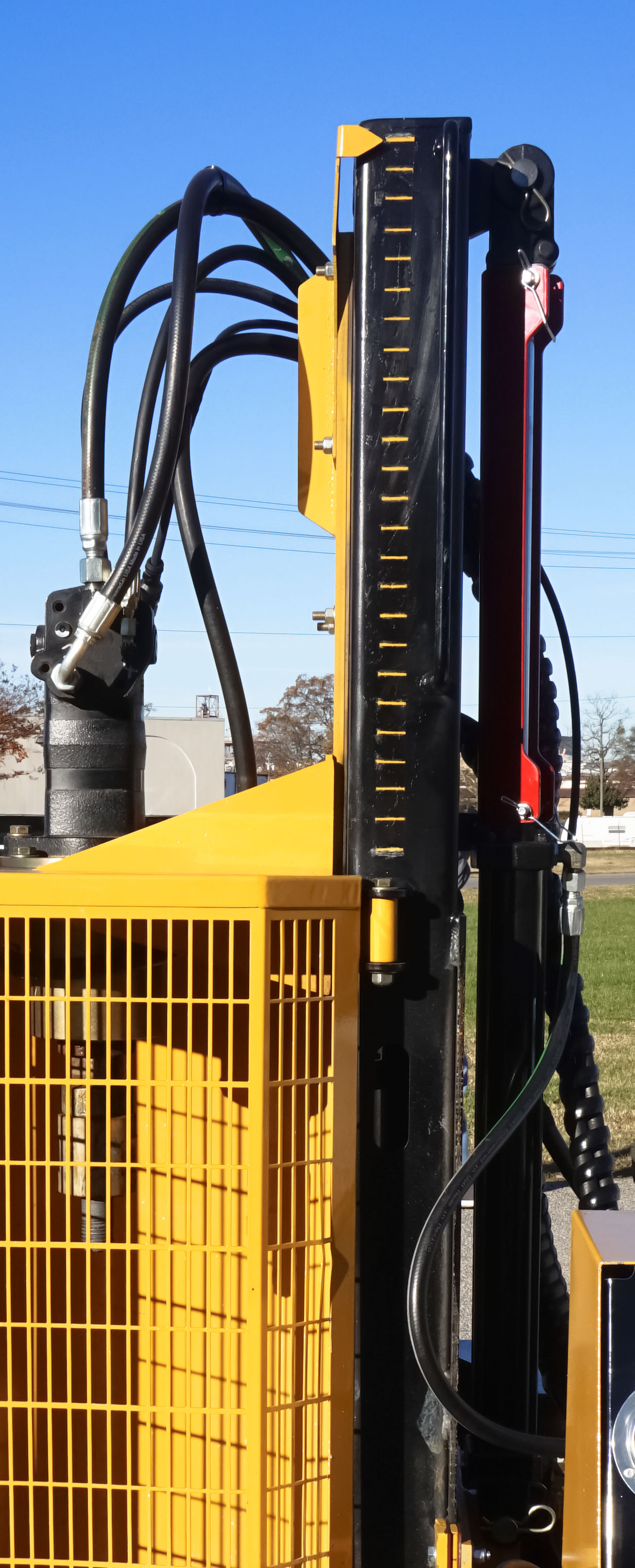

depth gauge tape

DEPTH GAUGE TAPE

Bit can move 24″ depending on construction of bit. Digging depth is a function of the drill bit height and depth of the bits inside cavity.

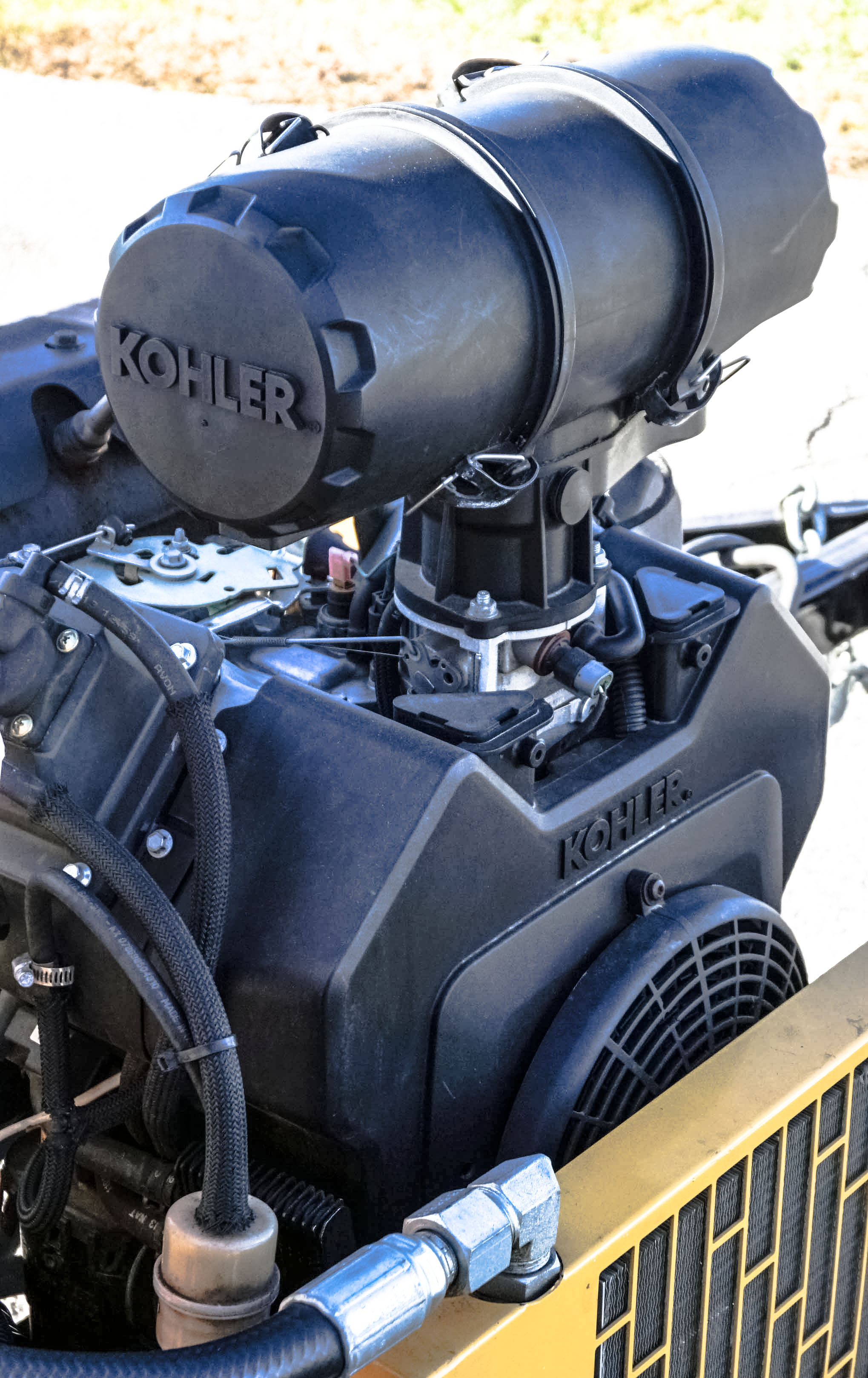

POWERFUL

Kohler 25 HP EFI engine for improved cold weather starting.

Power
Safety Cage

SAFETY CAGE

Protects operator from high torque bit rotation.

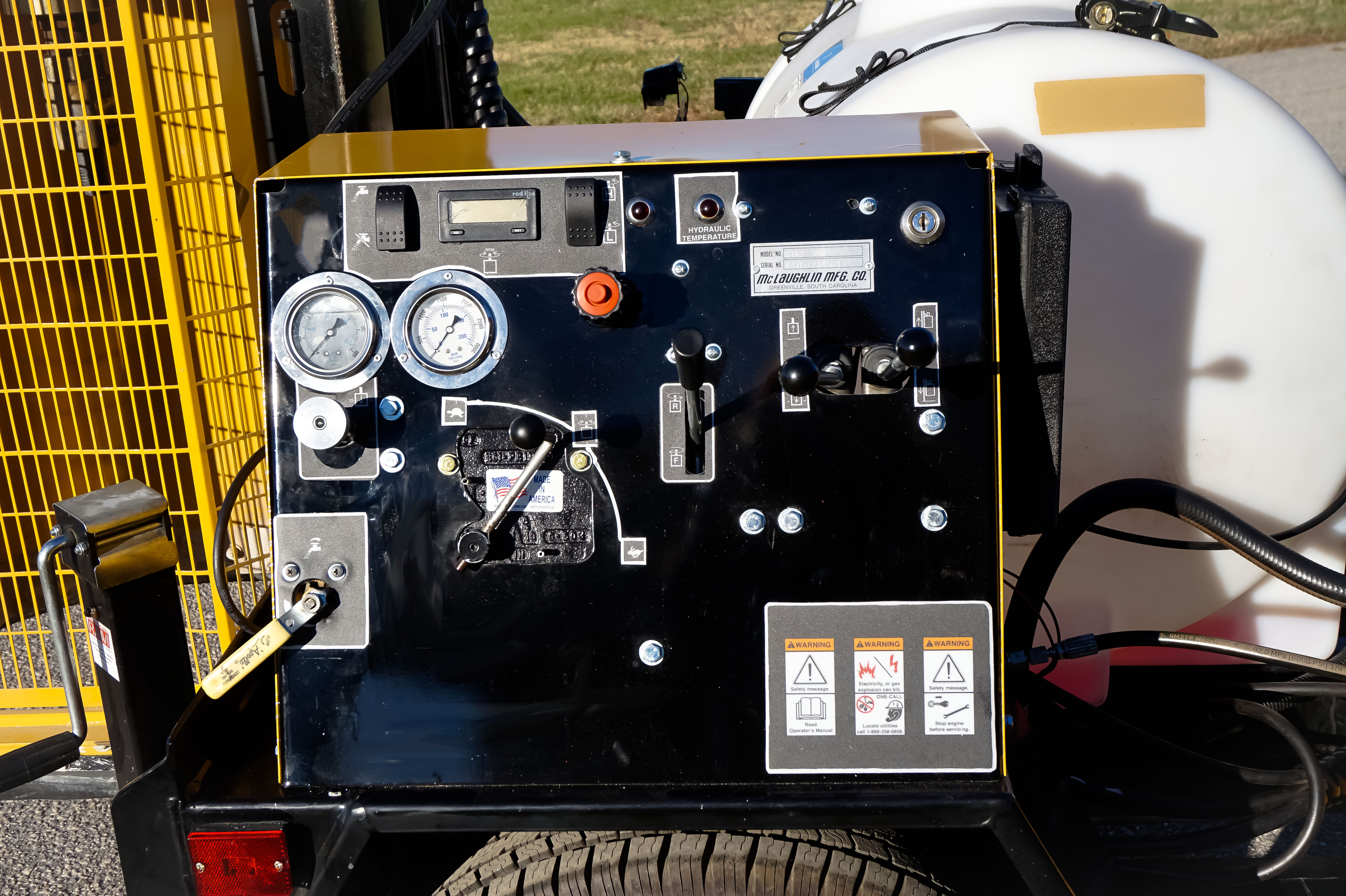

CONTROL

Variable speed and reversible rotation with 2 speed RPM, switch allows for appropriate bit speed selection.

Control Panel

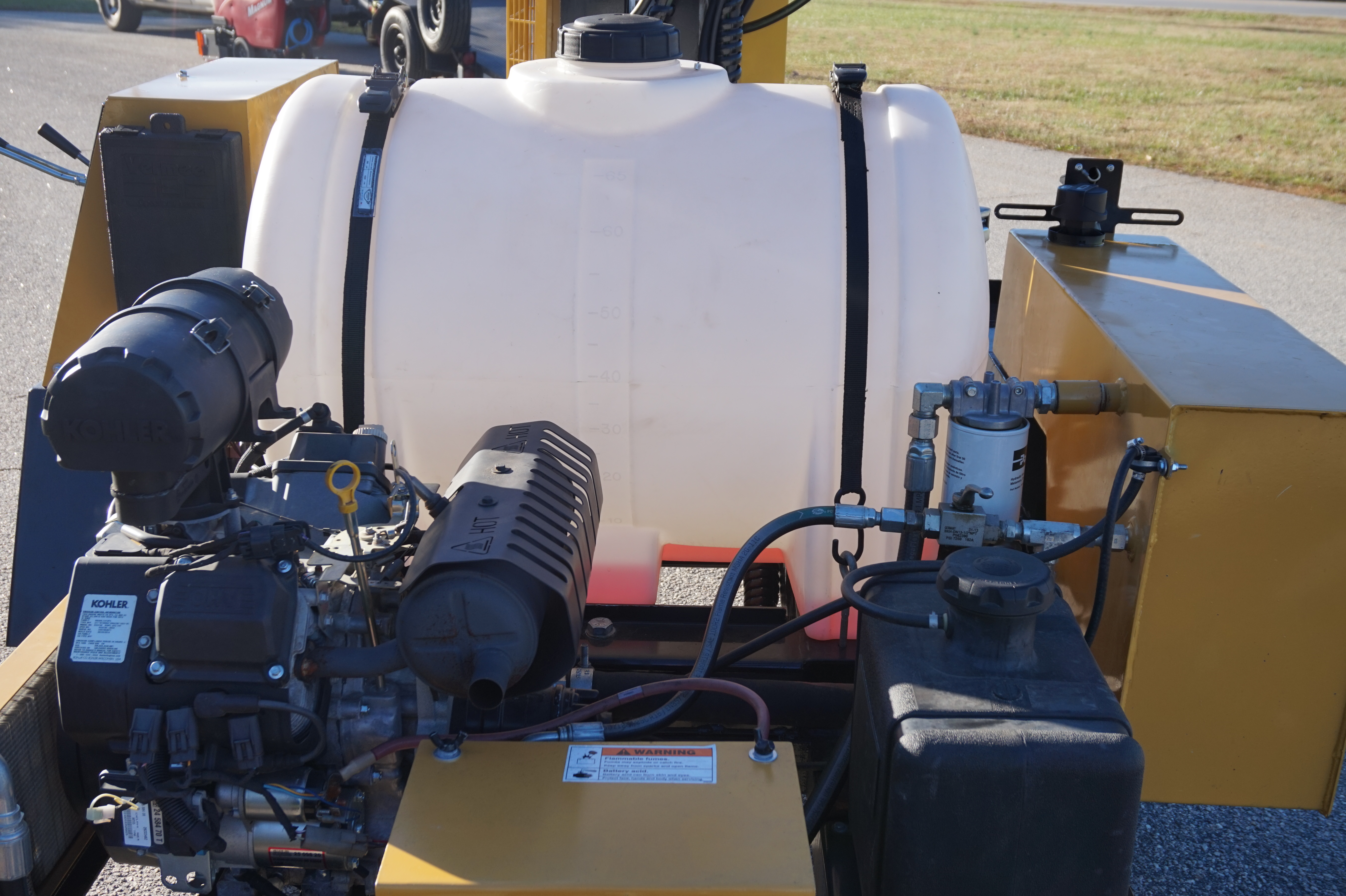

WATER SYSTEM

65 gallons for cooling the bit with variable flow from 0-2.8 gallons per minute.

Available Options

G3 Utility Locator

McLaughlin is introducing a new utility locator, Vermeer Verifier™ G3 by McLaughlin that combines trusted precision with a simple, user-friendly interface.

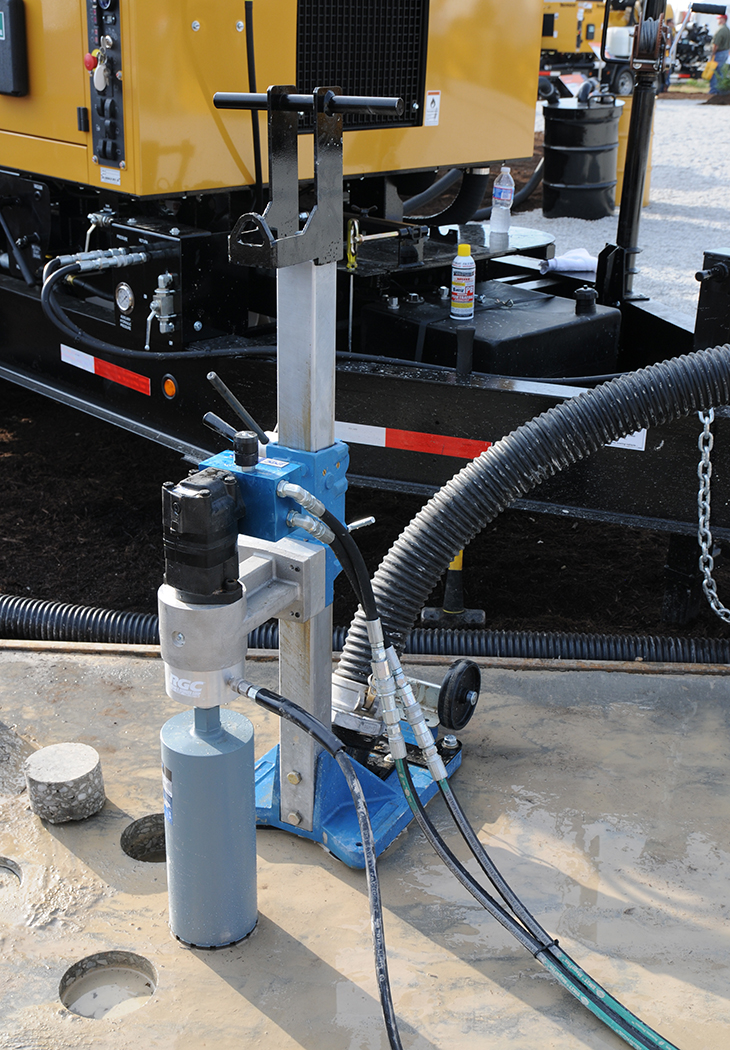

Compact Core Saw

McLaughlin has designed a core drill attachment for use with its -250, 500-, 800- and 1,200-gallon (1892.7, 3028.3 and 4542.5 L) vacuum excavators.

VX50 Gen 3

VX50 Gen 3

The Vermeer VX50 series is a powerful and productive vacuum excavator, equipped with a 4″ suction hose and 1,025 cfm blower it is extremely useful for production pothole applications and drill fluid management.

Literature

Literature

Specifications

General Weights and Dimensions
 Width  69″ (175 cm)
 Height  81″ (206 cm)
 Length  137″ (348 cm)
 Weight (Dry)  1,700 lbs (771 kg)
 Weight (Wet)  2,200 lbs (997 kg)
 Axle Capacity  3,500 lb (1,586 kg)

Power Source
 Engine   Kohler ECH740 Command Pro EFI, 3600 RPM
 Gross HP  25 hp (18.6 kw)

Water System
 Tank Capacity  100 gal (379 L)
 Pump Type  2.8 gpm (10.6 L/min) Sure Flow
 Diaphragm Pump Electrical System  12 volt
 On/Off Switch  Yes
 Variable Flow  Yes

Operational
 Rotation Motor  2-Speed
 Rotation Speed  0-180 RPM,0-360 RPM
 Feed Pressure  0-2500 psi
 Mast Vertical Travel  24″ (61 cm) Trailer-mounted
 Trailer-Mounted Mast Offset  48″ (121 cm) left/right
 Core Bit Diameters  4″-18″ (10.2 cm- 45.7 cm)

Controls
 Mast Raise  Hydraulic
 Mast Offset  Manual

Hydraulic System
 Rotation Pump  13.1 gpm/3000 psi (207 bar)
 Auxiliary Pump  5 gpm/2500 psi (172 bar)
