Pit Launch Drill

Request a Quote

About this Product

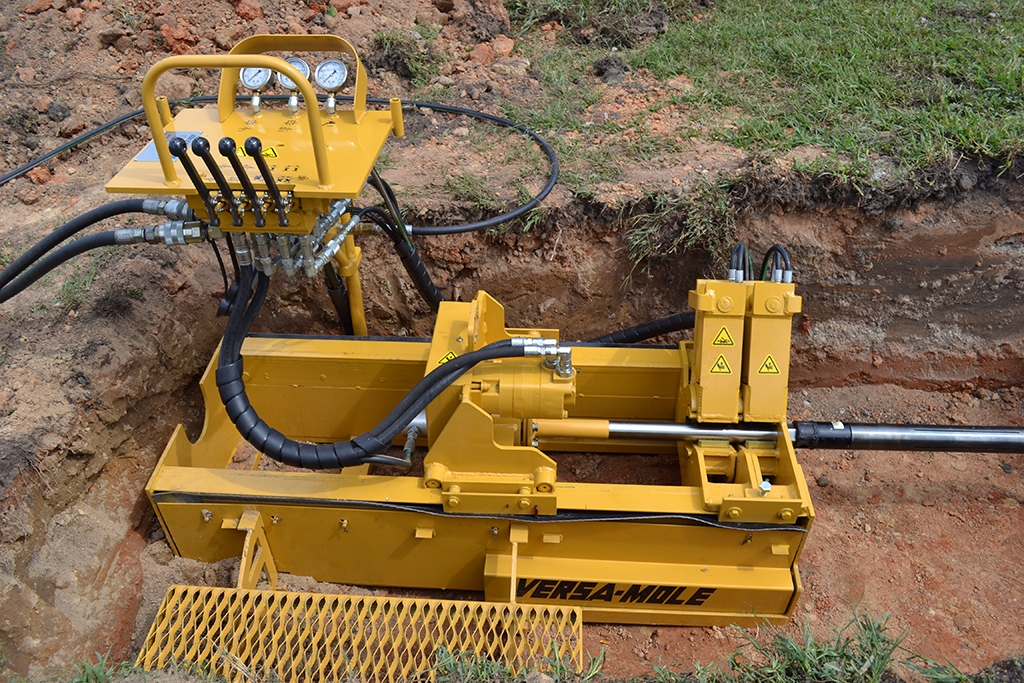

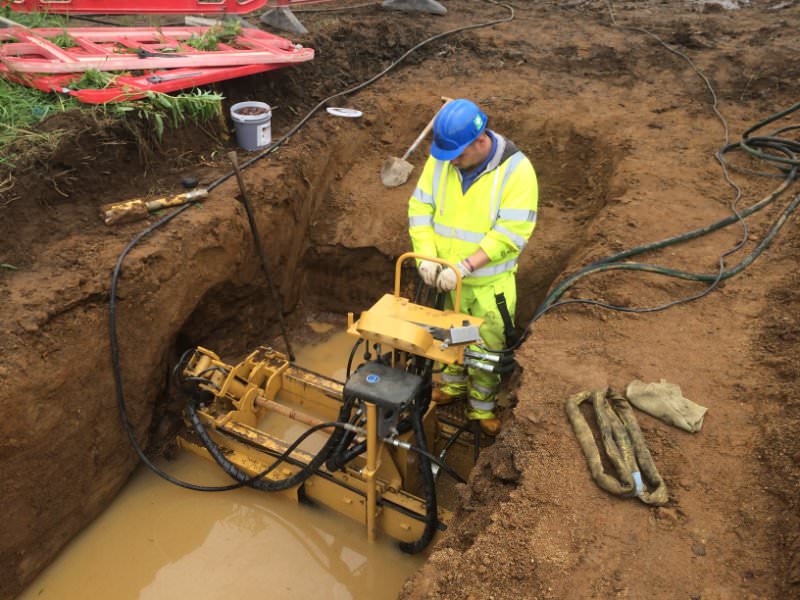

The McL-10 Pit Launch Drill is powerful yet compact with both a 7’ and 5’ drill rack footprint. The McL-10 is an ideal drill for installing water and gas services for projects with set-back restrictions where surface launch HDD machines are challenged to achieve needed bore grade in a short distance.

Key Features

POWERFUL AND COMPACT

Excellent power to footprint ratio for installation up to 10” in diameter. This unit has 1,030 lbs of torque and 13,250 lbs of pullback force.

Powerful and Compact, excellent power to footprint for installations up to 10" in diameter
Easy to operate. Fully hydraulic vices provide fast and reliable rod assembly and disassembly with ease of operation.

EASY TO OPERATE

Fully hydraulic vices provide fast and reliable rod assembly and disassembly with ease of operation.

PROVEN DEPENDABILITY

Firestick 1 Drill Rod for exceptional steering and long drill rod life. It also has a retractable vice assembly provides docking for drill head assembly and back reamers.

RELIABLE SAFETY

Remote throttle and emergency stop as well as water controls are conveniently placed on the operator control station.

SIMPLE CONTROLS

Hydraulic operator controls are simple to use and reliable for thrust, pullback, and vice operation.

Related Products

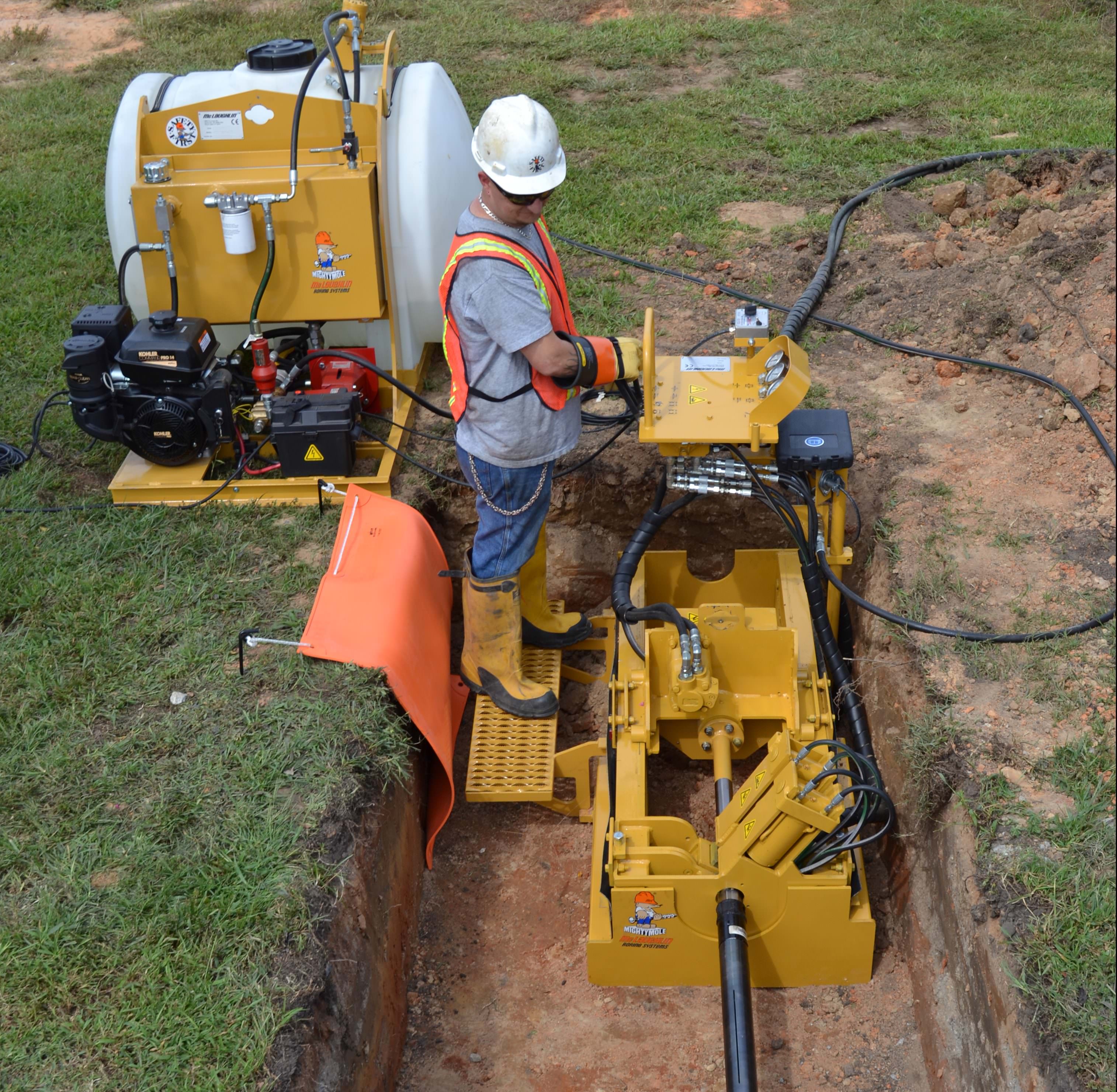

MCL-230P is a high pressure mud system that quickly mixes and delivers either Polymer to the MCL-10 pit launch drill

Mixing System MCL-230P

MCL-230P is a high pressure mud system that quickly mixes and delivers either Polymer to the MCL-10 pit launch drill

Power Pack Engine

Power Pack Engine

The McL-3000 is a hydraulic powerpack used to power the McL-10 Pit Launch Drill. The powerpack comes standard with a full automatic remote emergency stop for operator safety.

Literature

Literature

Specifications

MCL 10H Pit Launch Directional Drill
 5′ Version  7′ Version
 Maximum Pressure  2,500 psi (170 Bar)
 Maximum Flow  25 GPM (95LPM)
 Spindle Speed  0-125 RPM
 Forward Thrust @ 2,500 psi  17,670 lbs (7,860 kg)
 Pullback @ 2,500 psi  13,250 lbs (5,895 kg)
 Spindle Torque @ 2,500 psi  1,030 ft. * lbs. (1,392 Nm)
 Width  45″ (114 cm)  45″ (114 cm)
 Length 60″ (153 cm)  84″ (214 cm)
 Overall Height  51″ (130 cm)  51″ (130 cm)
 Drill Height  26″ (66 cm)  26″ (66 cm)
 Weight  1,100 lbs. (500 kg)  1,200 lbs. (545 kg)
 Weight  12.25″ (31 cm)  12.25″ (31 cm)

Drill Rods Firestick 1
 5′ Version  7′ Version
 Length  28″ (71 cm)  48″ (122 cm)
 Diameter – Joint  1.88″ (4.8 cm)  1.88″ (4.8 cm)
 Diameter – Tube  1.5″ (3.8 cm)  1.5″ (3.8 cm)
 Weight  15 lbs. (7 kg)  19 lbs. (9 kg)

MCL 230P High Pressure Mud System
 Engine  12HP (8.9 kw) Kohler Gasoline Engine, electric start
 Pump  Multiple Piston 6GPM @ 1000psi (22.7 Lpm @ 69 bar)
 Water Tank  230 Gallon (870 L)
 Mixing System  Completely self-contained, hydraulic
 Weight  830 lbs (376 Kg)
 Dimensions  69″ Long X 51.5″ Wide X 50.5″ Height (175 cm x 131 cm x 128 cm)

MCL 3000 Hydraulic Powerpack
 Engine  30 hp Kubota V1505 diesel engine
 Pump  Gear type, fixed displacement, 18 GPM (68 LPM) max, 2500 psi (172 BAR) max operating pressure
 Reservoir  35 gal (132.5 L) capacity with intake and return line filters
 Dimensions/Weights  42″ (107cm) wide x 42″ (107cm) long x 42″ (107cm) high – 1,100 lbs. (499kg)

M500
 5′ Model  7′ Model
 Maximum Pressure  2,500 psi (170 BAR)
 Maximum Flow  25 GPM (95LPM)
 Spindle Flow  0-125 RPM
 Forward Thrust @ 2,500 psi  17,670 lbs (7,860 kg)
 Pullback @ 2,500 psi  13,250 lbs (5,895 kg)
 Spindle Torque  1,030 lbs (1,392 Nm)
 Width  45” (114 cm)  45” (114 cm)
 Length  60” (153 cm)  84” (214 cm)
 Overall Height  51” (130 cm)  51” (130 cm)
 Drill Weight  1,100 lbs (500 kg  1,200 lbs (545 kg)
 Drill Centerline  12.25” (31 cm)  12.25” (31 cm)

Please use the form and information below to get in touch with us.
