About this product
Automatic Depth and Current Index measurements located on all screen modes allows operators to locate on the move.
Two Gain Control Modes
Features both semi-automatic gain ideal for congested environments and manual gain for increased speed and productivity.

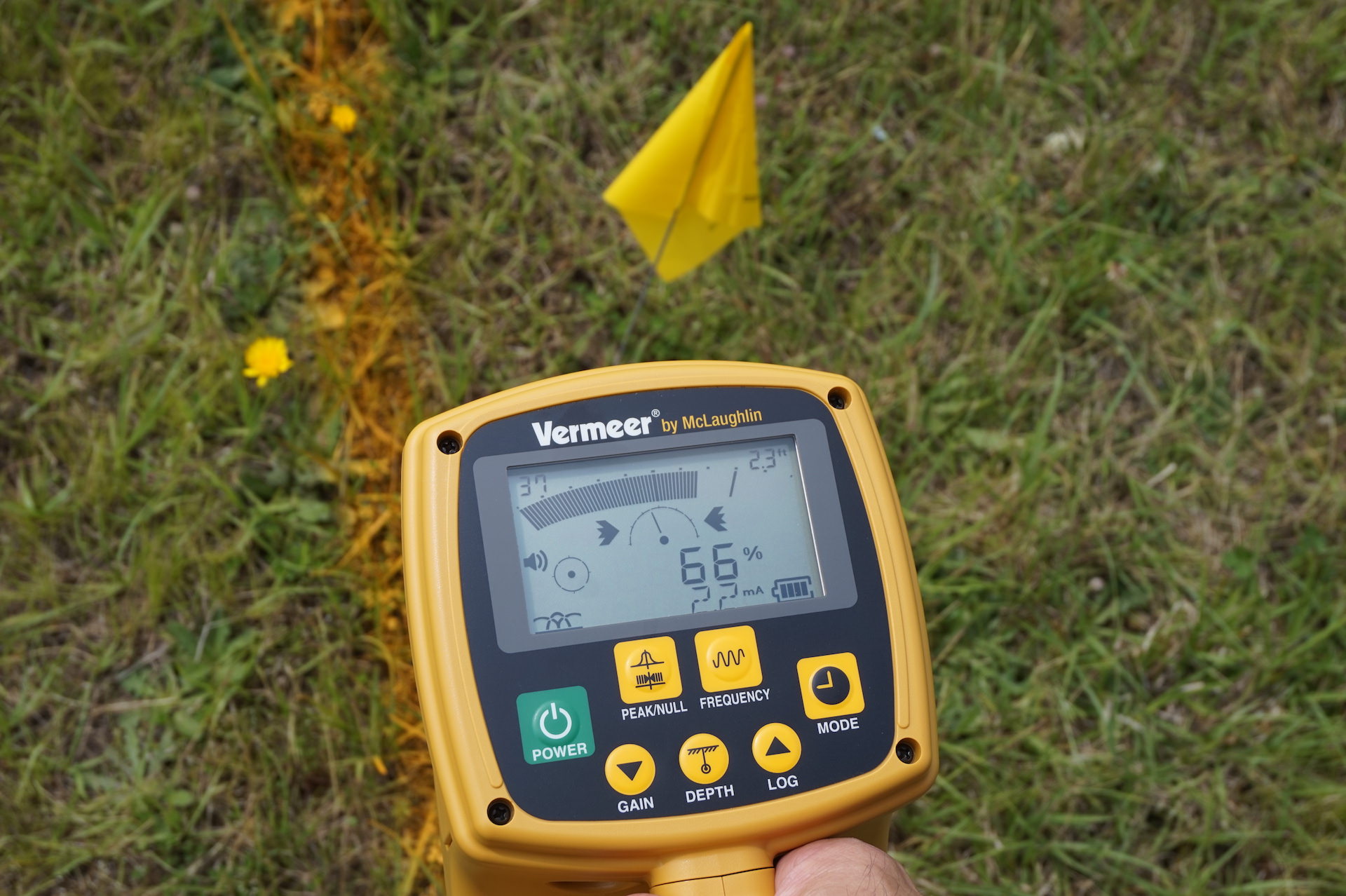

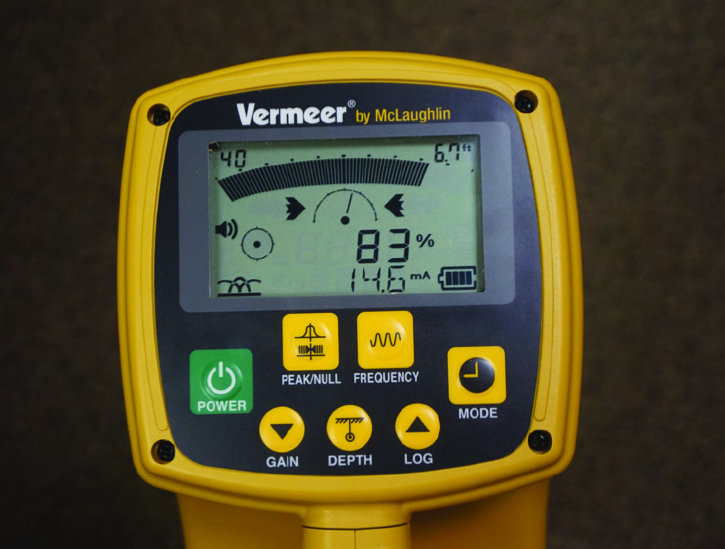

New Locating Mode – Peak/Null
In addition to individual Peak and Null screens the combined Peak/Null operator friendly screen, at a glance shows high accuracy peak data combined with high speed null mode data simultaneously.
The new compass icon feature quickly identifies the direction of the utility path in reference to the receiver which allows direction changes or intersections to be quickly and accurately followed.
STRONG INDUCTIVE CAPABILITIES
Continuing McLaughlin’s heritage of strong accurate induction locating allows for quick painless verification of marks or proposed excavation sweeps without any hookup required.

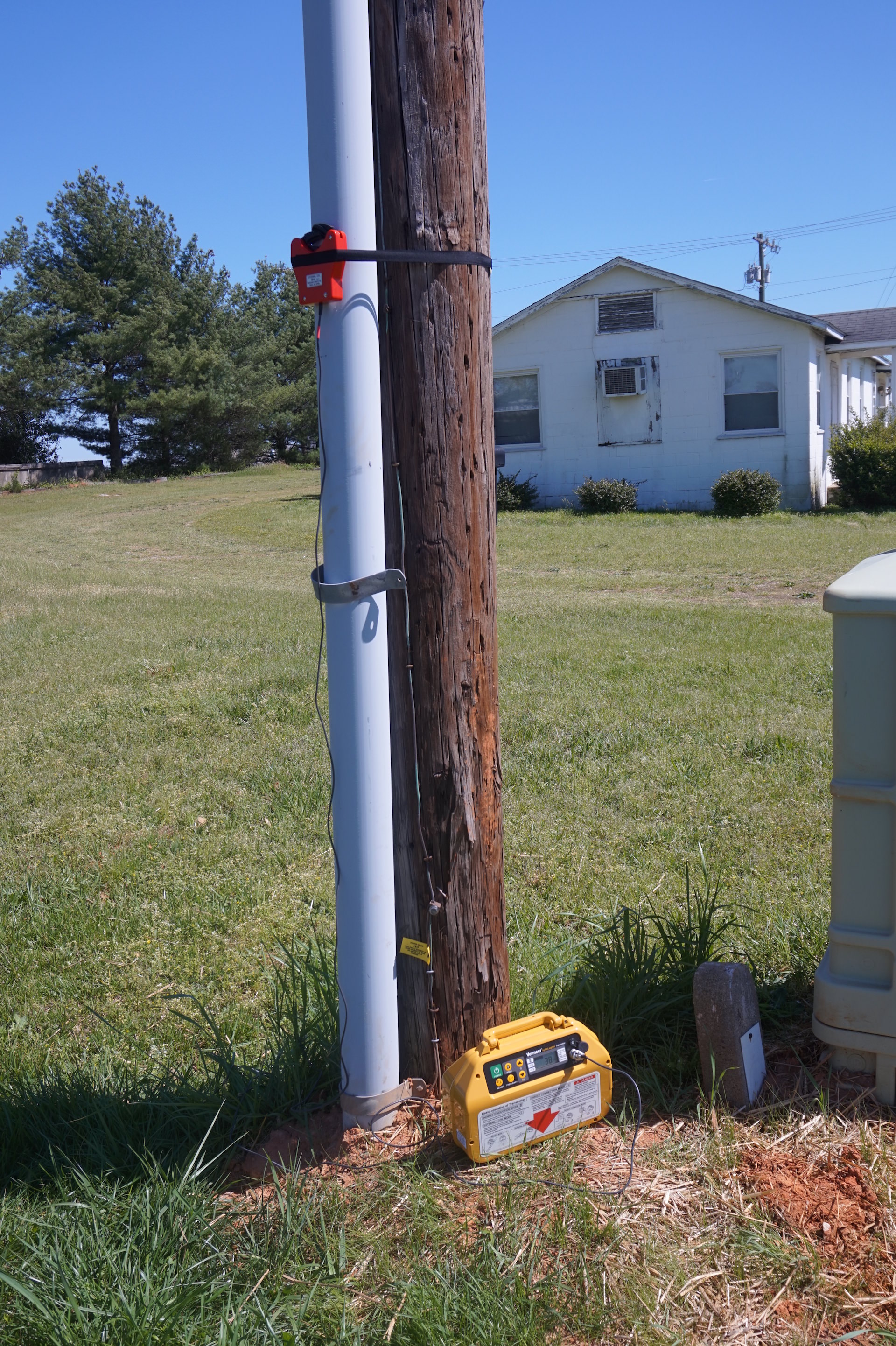

CLAMP NOT LIMITED TO PIPE SIZE
Innovative clamp design that can be attached to utility, does not need to encompass it. Exclusive one size fits all coil clamps that are completely waterproof.

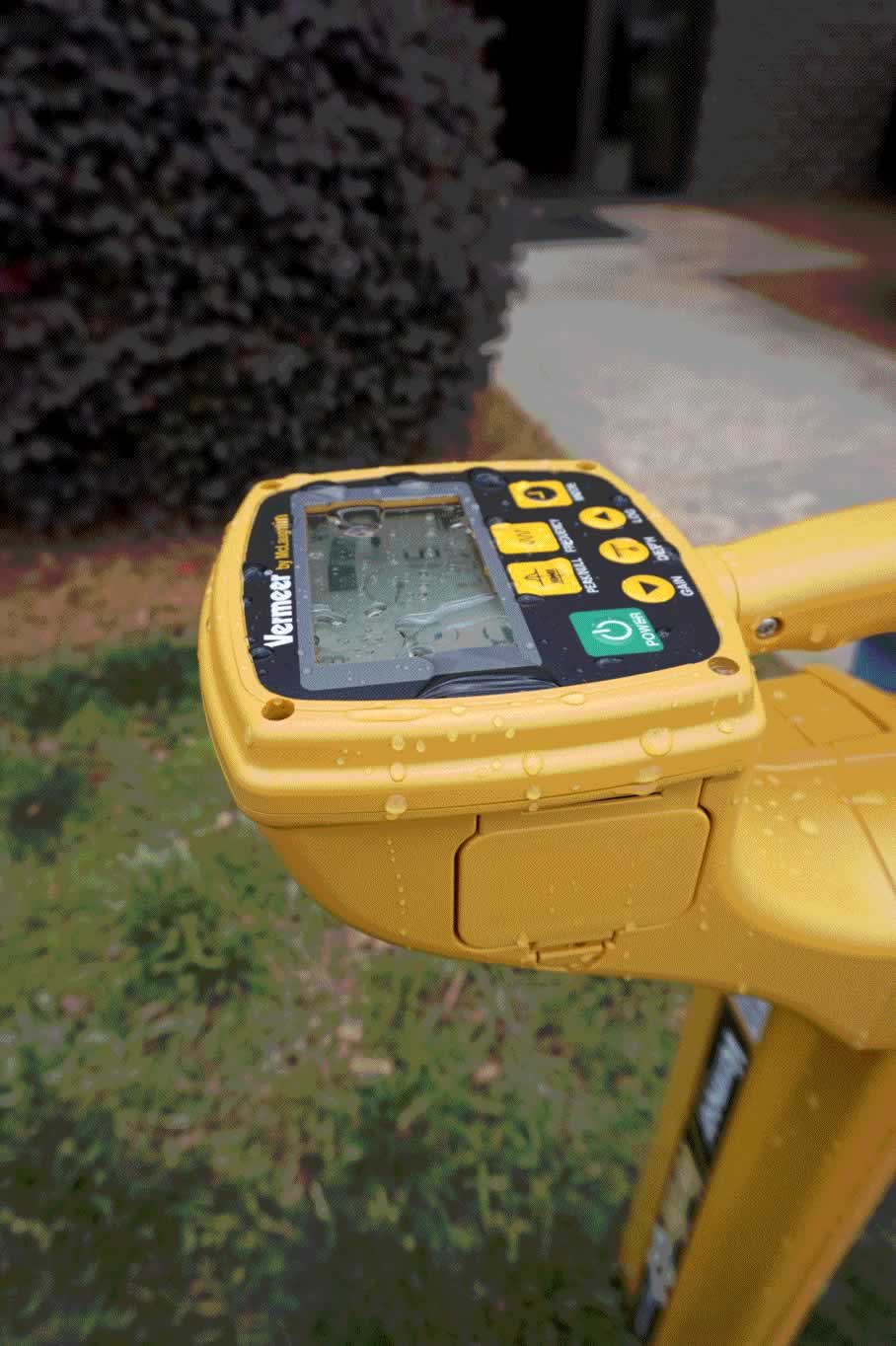

3 Year warranty including water damage. Robust construction and rubber mounted internals equate in an instrument that never needs calibration.
|Active Frequencies||38 kHz : 38 kHz ±2%
9.5 kHz : 9.5 kHz ±2%
80 kHz : 80 kHz ±2%
850 Hz : 850 Hz ±2%
512 Hz : 512 Hz ±2%
|Passive Radio||9 k to 33 kHz (80 bands)|
|Passive Power||POW : 9 k to 33 kHz (80 bands) 120 Hz : 95~125 Hz|
|Battery Type||Six Alkaline LR6 “AA”|
|Battery Life||18 hours (20°C / 68°F)|
|Battery Status||Continuous indication|
|Power Save Function||Automatic power off after 5min of inactivity|
|Visual Indication||LCD: bar graph, digital number & character|
|Depth Display||High precision depth measurement|
|Range||Line: 0 to 5 m /16 ft. ( 0-5 m / 0-16 ft. mode)
0 to 10 m /30 ft. (0-10 m / 0-30 ft. mode)
Probe: 0 to 10 m /30 ft.
Real time depth measurement 0 to 9.9 m / 33ft
|Depth Readout Unit||Meter / Feet & Inch|
|Depth Accuracy*||2.0m / 6.5ft. : ±2.5%
3.0m / 10ft. : ±5%
5.0m / 16.5ft. : ±10%
|Current Value||Current value flowing on the conductor is displayed for line identity in milliamps.|
|Audio Output||Internal Speaker with sound volume adjusting function, Earphone (optional)|
|Data Logging||Memorized 400 points of the depth/ the current measurement/ the date and time data.|
|Interface||6-pin output connector|
|Operating Temperature||-20°C to 50°C / -4°F to 122°F|
|Dimensions||660 x 130 x 270 mm (26.0″ x 5.1″ x 10.6″)|
|Weight||2.1 kg/ 4.7 lbs. approx. including six batteries|
|Output Frequencies||38 kHz :38 kHz±0.02% (Standard frequency)
9.5 kHz :9.5 kHz±0.02%
80 kHz :80 kHz ±0.02%
512 Hz :512 Hz ±0.02% (Direct connection mode ONLY)
Dual :9.5 kHz /38 kHz±0.02% (Direct connection mode ONLY)
|Output Power||5 watts maximum / 80kHz: 1 watts maximum|
|Operating Modes||Direct connection mode, Inductive mode *External coil mode (optional )|
|Battery Type||Eight Alkaline LR20 “D”|
|Battery Life||Direct mode: 50 hours (Output 4 mA , 20°C / 68°F)
Inductive mode: 20 hours (Output 50% , 20°C / 68°F)
Full Power(5W) : 10 hours (20°C / 68°F)
|Battery Status||Low battery indication & press key readout|
|Visual Indication||LCD: Bar graph & Digital number|
|Audio Indication||Internal Speaker : Alarm, Beeping sounds|
|Measuring Function||Output Current : 0 to 300mA
Line Voltage : 0 to 250V
|Output Protection||AC 250V (512Hz: Output is cut off automatically)|
|Operating||-20°C to 50°C / -4°F to 122°F|
|Dimensions||When using: 261 x 314 x 110 mm(10.3″ x 12.4″ x 4.3″)
When storage: 227 x 314 x 110 mm(8.9″ x 12.4″ x 4.3″)
|Weight||3.6 kg/ 7.9 lbs. approx. including eight batteries|
