MOLEING ROD, BITS, REAMERS & ACESSORIES
Request a QuoteAbout this product
McLaughlin has a full line of moleing rods, bits, reamers and accessories.
Dry Compaction
DRY BORING COMPACTION BITS (MOLES)
Dry-Boring Compaction Bits or Moles are for use in clay or other compressible soil. This bit is self-feeding and produces a clean and compacted hole.
DRY COMPACTION REAMERS
The Dry Compaction Reamer should be used in conjuction with the moles listed in the chart below for maximum effectiveness and tool life.

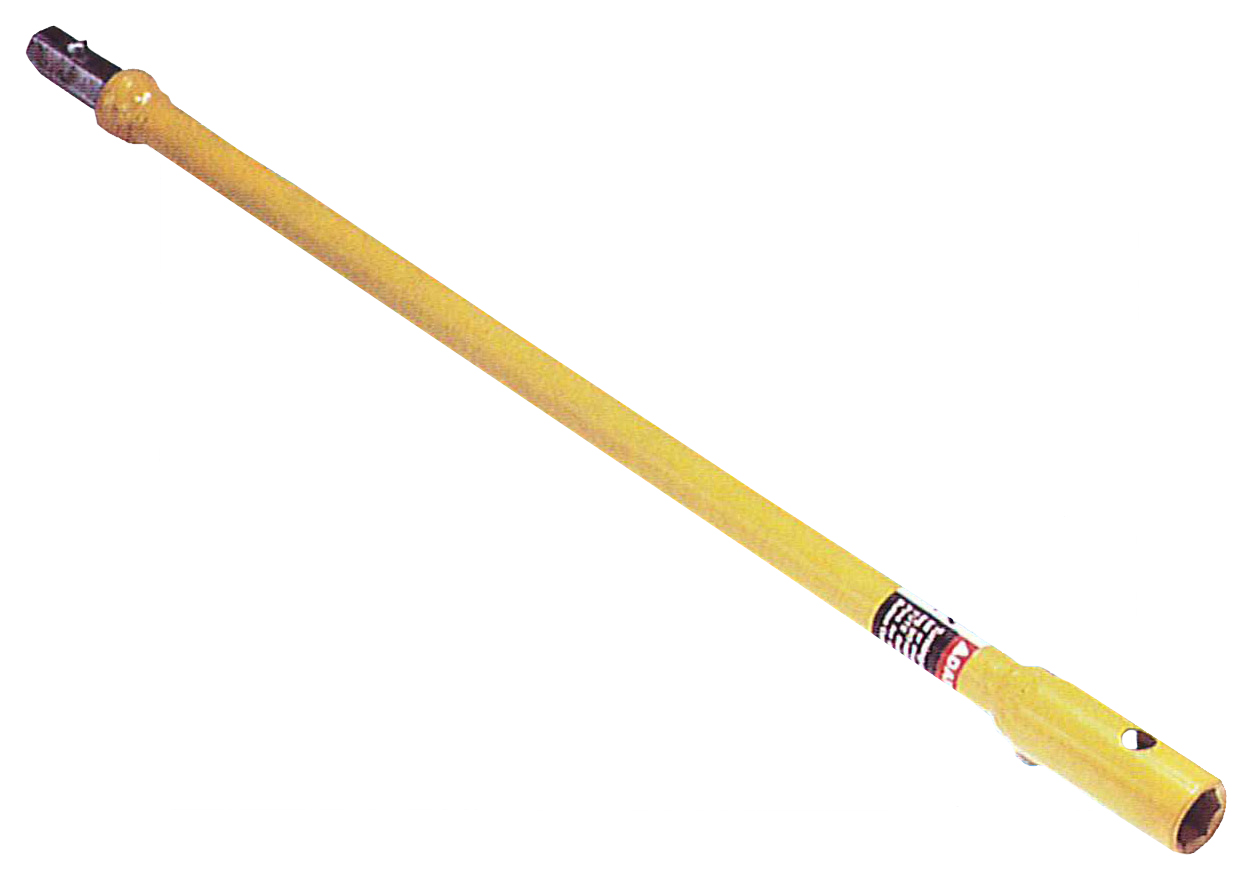

STANDARD AND HEAVY DUTY FLEX-ALLOY™ DRILL RODS
The Standard (7/8” x 1/2”) or Heavy Duty (1” x 9/16”) Flex-Alloy™ Drill Rod is the lightest and perhaps strongest in the industry. Constructed of alloy mechanical quality tubing and heattreated to offer tensile and yield of 120,000 – 180,000 psi, it gives both durability & fl exibility in the most diffi cult boring conditions.

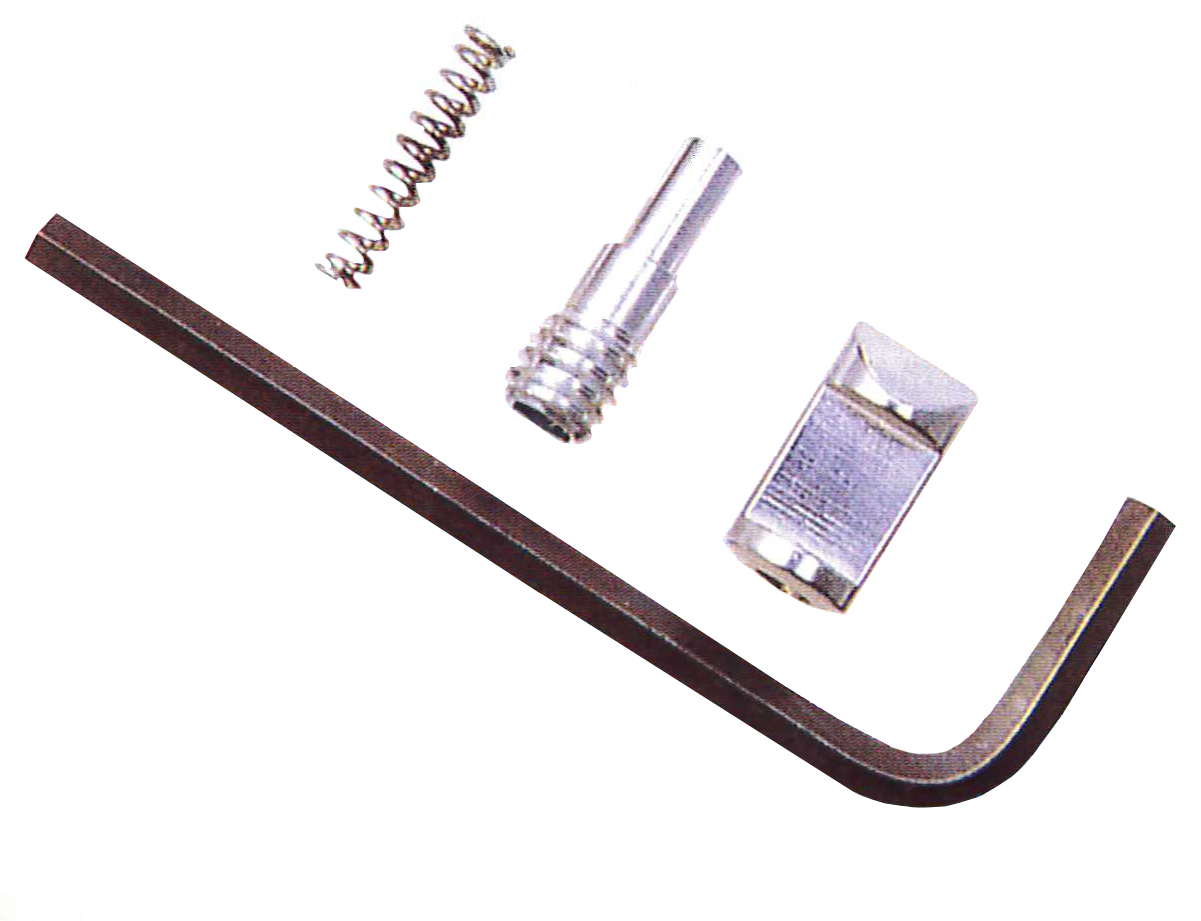

STANDARD AND BULLDOG BUTTON, SPRING AND SCREW REPAIR PARTS
Used to replace buttons, springs and screws in the male connector assembly. Kit consists of 12/each button, spring, screw and 1 Allen wrench. Buttons, springs and screws can be ordered individually-specify part numbers.

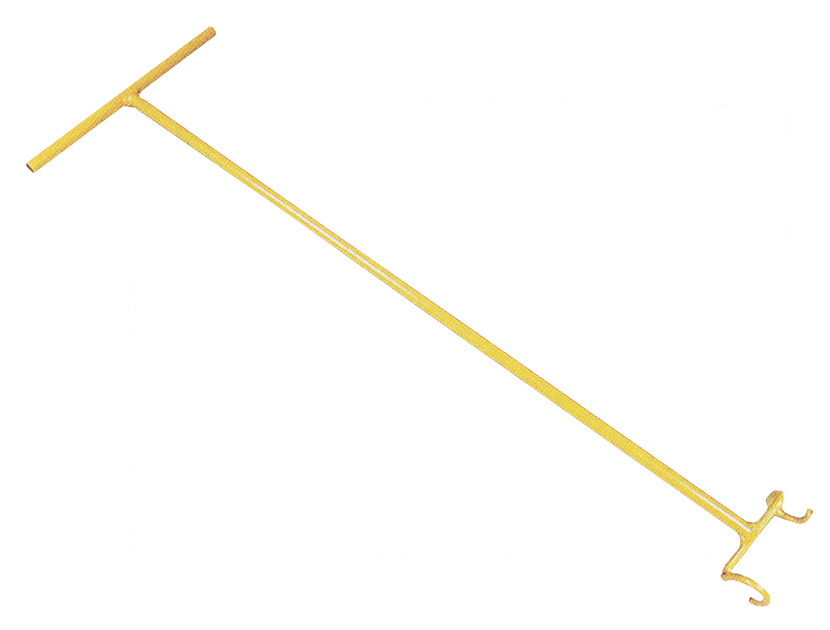

MOLE ROD GUIDE
Used to direct the Mole and Lead section of drill rod at the start of the bore. Comes standard with each Mighty Mole Unit.
ADJUSTABLE MOLE ROD GUIDE
Adjustable height setting, used to direct the Mole and Lead section of drill rod at the start of the bore.
MOLE ROD LEVEL
Used in conjunction with Mole Rod Guide to determine the degree of incline or decline of the Mole Head at the start of the bore.
STANDARD AND BULLDOG REPLACEMENT SHANKS FOR DRILL ROD, MOLES AND REAMERS
Constructed of heat-treated alloy steel to assure 145,000 psi tensile strength. Available with two line up pin diameters (1/2” round for the 7/8” drill steel, and 9/16” round for the 1” drill steel. Refer to chart below when ordering Standard Replacement Shanks.
STANDARD AND BULLDOG REPLACEMENT SOCKETS FOR DRILL ROD
See page 5 of the Mighty Mole Catalog for chart of sockets for drill rods.
UNCOUPLING TOOLS
Provides fast and easy disengagement of male and female snap-button connectors. Tool depresses button and locks to rod, allowing the ue of both hands to disconnect the tools.
SWIVEL SHANKS
Used to pull back service when no further enlargement of the hole is necessary.
Wet Drilling

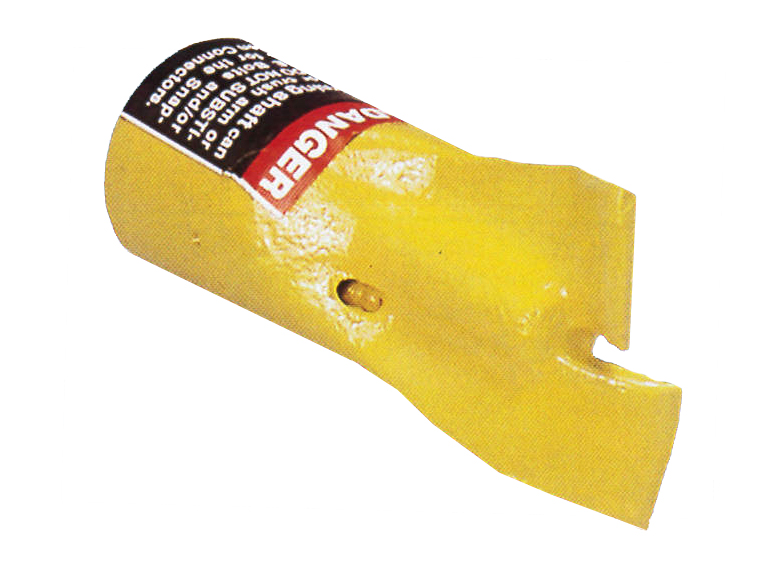

WET TYPE FISHTAIL HEADS
Use for Pilot hole drilling in soft to medium-hard soil conditions.
HARD SOIL WET FINGER BITS
Use in hard soils (sandstone, loose rock, shale).

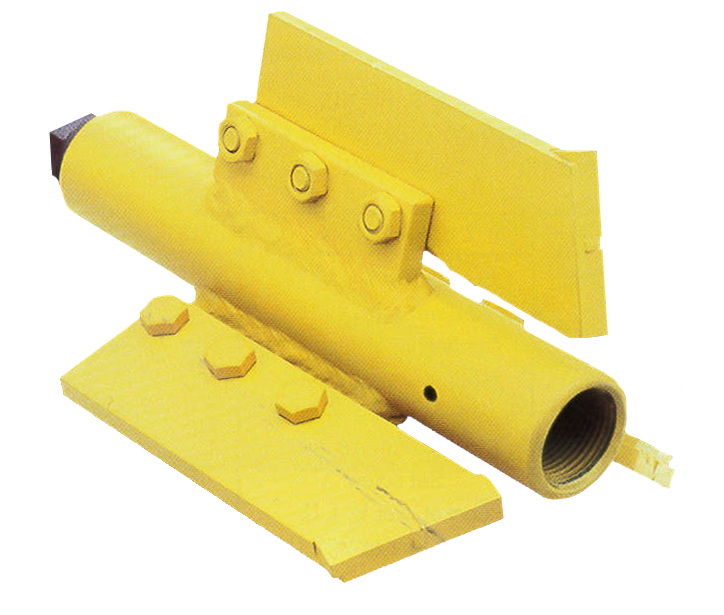

ADJUSTABLE REAMER BODIES
Use with selected blades to enlarge the hole size to 10” diameter
ADJUSTABLE CARBIDE REAMER BLADES
Use with reamer body to enlarge hole to 10” diameter (3 blades required).
MOLE ROD GUIDE
Used to direct the Mole and Lead section of drill rod at the start of the bore. Comes standard with each Mighty Mole Unit.

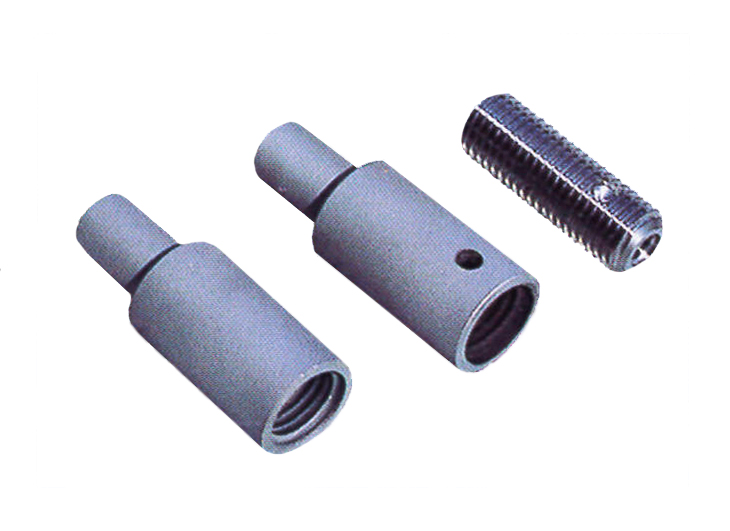

REPAIR ENDS FOR WET DRILLING TOOLS
Use to repair drill rods, heads and reamers. Order by part # to assure correct thread size. All components machined from heat-treated alloy steel.
ADJUSTABLE MOLE ROD GUIDE
Adjustable height setting, used to direct the Mole and Lead section of drill rod at the start of the bore.

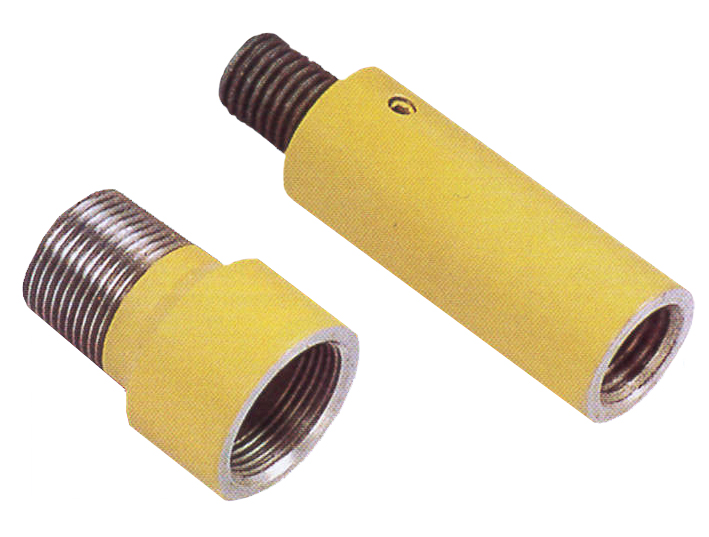

WET ADAPTERS
Use on a variety of air motors (Chicago Pneumatic, Ingersol Rand, Thor, and Uryu) to enable the use of McLaughlin Wet Drilling tools.

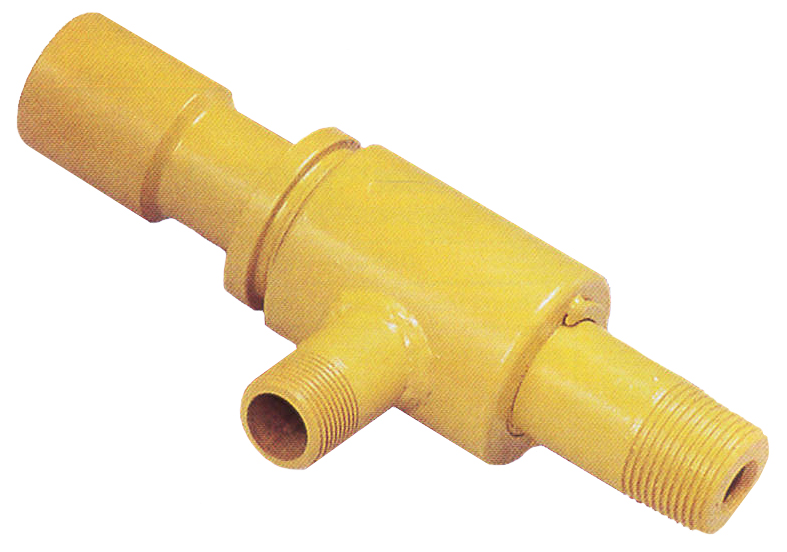

FRONT MOUNTED WATER SWIVEL
Designed for use with a wide variety of air motors. It allows either water or air injection without passing through the air motor body and damaging the seals and greased bearing races.
DRY COMPACTION - TORO®* CONNECTOR
ADJUSTABLE CARBIDE REAMER BLADES
Use with reamer body to enlarge hole to 10” diameter (3 blades required).
MOLE ROD GUIDE
Used to direct the Mole and Lead section of drill rod at the start of the bore. Comes standard with each Mighty Mole Unit.
REPAIR ENDS FOR WET DRILLING TOOLS
Use to repair drill rods, heads and reamers. Order by part # to assure correct thread size. All components machined from heat-treated alloy steel.
ADJUSTABLE MOLE ROD GUIDE
Adjustable height setting, used to direct the Mole and Lead section of drill rod at the start of the bore.
REPAIR ENDS & TOOL HOLDERS - TORO®* CONNECTOR
ADJUSTABLE CARBIDE REAMER BLADES
Use with reamer body to enlarge hole to 10” diameter (3 blades required).
MOLE ROD GUIDE
Used to direct the Mole and Lead section of drill rod at the start of the bore. Comes standard with each Mighty Mole Unit.
REPAIR ENDS FOR WET DRILLING TOOLS
Use to repair drill rods, heads and reamers. Order by part # to assure correct thread size. All components machined from heat-treated alloy steel.
ADJUSTABLE MOLE ROD GUIDE
Adjustable height setting, used to direct the Mole and Lead section of drill rod at the start of the bore.
REPAIR ENDS - TORO® CONNECTOR
See page 10 of the Mighty Mole Catalog for chart showing repair end part numbers.

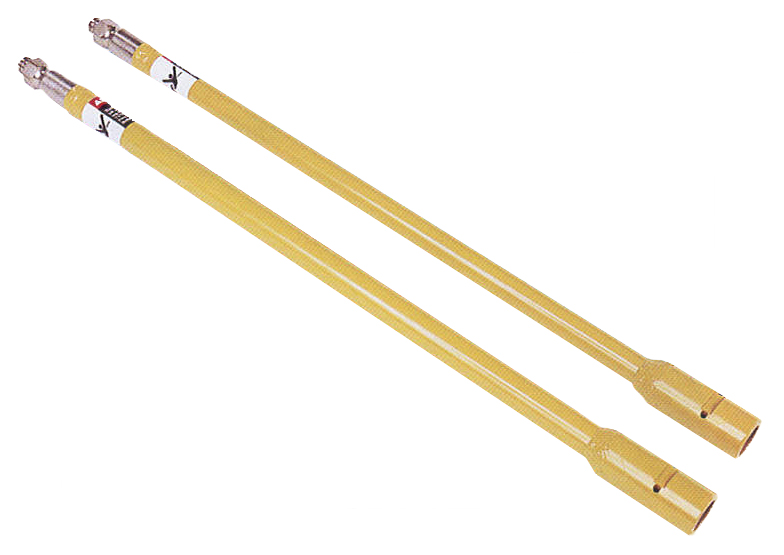

TOOL HOLDERS TO USE 13/16” & 1” HEX SPECIALTY TOOLS WITH 7/8” - 9, 1” - 8 & TORO® CLIP TYPE RODS
See page 10 of the Mighty Mole Catalog for various part numbers for tool holders.

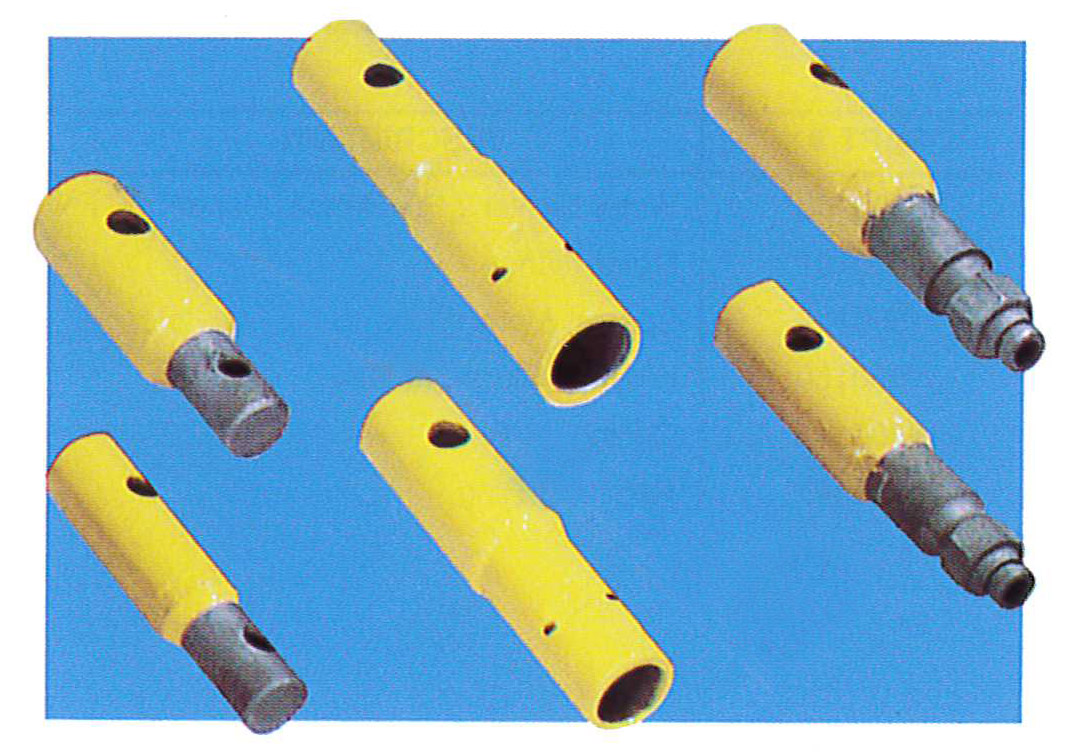

Drilling Tool Adaptors & Specialty Drill Tools

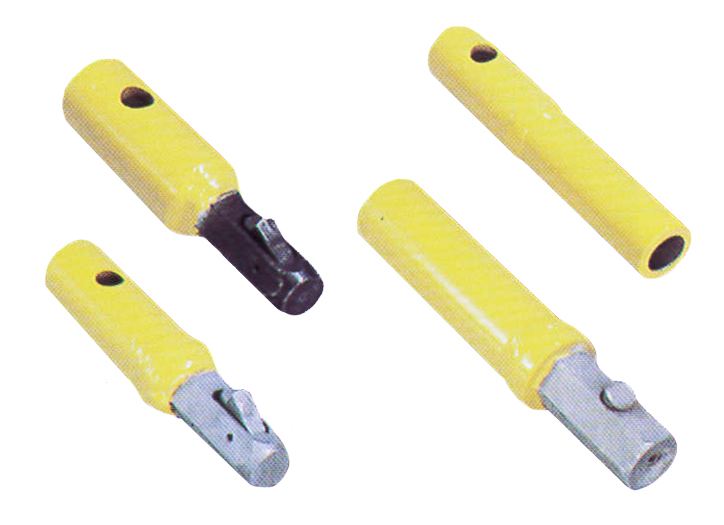

MCLAUGHLIN TO DITCH WITCH
See Page 12 of mighty mole drilling catalog for part numbers
McLaughlin to Toro
See page 12 of the Mighty Mole Drilling Catalog for various part numbers and descriptions.

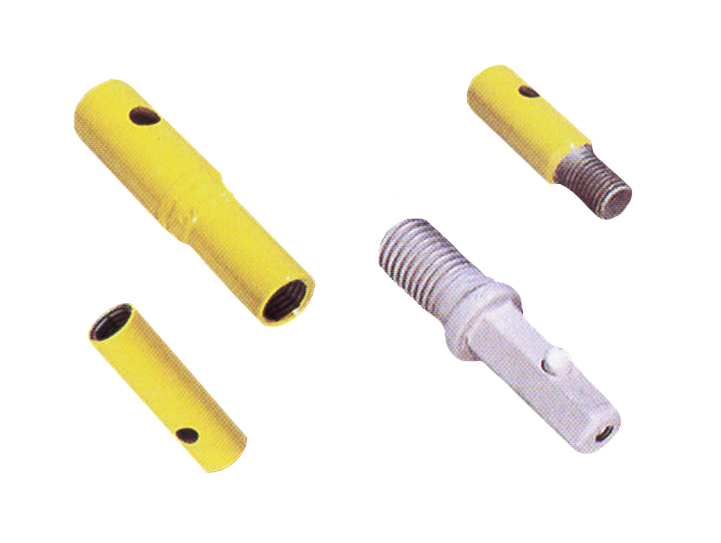

Adapters McLaughlin to Vermeer
See page 13 of Mighty Mole Drilling Tool Catalog for various part numbers and descriptions.
MCLAUGHLIN TO DITCH WITCH
See Page 12 of mighty mole drilling catalog for part numbers
McLaughlin to Toro
See page 12 of the Mighty Mole Drilling Catalog for various part numbers and descriptions.
Adapters McLaughlin to Vermeer
See page 13 of Mighty Mole Drilling Tool Catalog for various part numbers and descriptions.
