Pit Launch Moleing Machine

Request a Quote

About this product

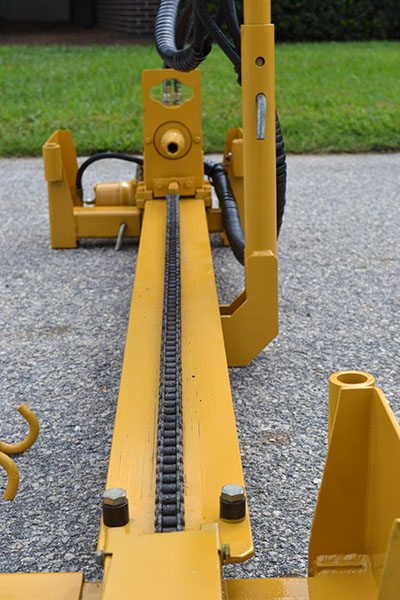

The M5000 Pit Hydraulic Moleing Machine is a low cost solution for installing small diameter service lines under roadways, driveways, and sidewalks. The unit sets up in an excavation of 78” (198.1 cm) long and as small as 18” (45.7 cm) wide, making it the perfect machine to use with mini excavators or small backhoes.

Key Features

GET THE JOB DONE QUICKLY

This in-line boring machine moles at speeds up to 5’ (1.524 m) per minute.

Simple operator control station for rotation and thrust controls

INCREASED STABILITY

The M5000 has telescoping side stabilizers for securing machine in pit.

EASY TO USE

Simple operator control station for rotation and thrust controls.

The M5000 has telescoping side stabilizers for securing machine in pit
Simple operator control station for rotation and thrust controls

JOB VERSATILITY

Bores diameters up to 3 ½” (8.13 cm) and distances 50′ (15.24 m) to 80’ (24.38 m).

Literature

Literature

Specifications

Boring Range
 English Metric
 Bore Reams 1 1/4” – 2 1/2”
2” – 4 1/2”
3.175cm – 6.35cm
7.8cm – 17.71 cm
 Torque 520 ft. lbs @ 2,500 psi 705 Nm @ 170 BAR
 Speed 80 RPM @ 8 GPM 80 RPM @ 30 LPM
 Thrust 1,000 Lbs Push/Pull 4448 N

Dimensions
 English  Metric
 Length 78″ 198 cm
 Width 18″ to 24″ 46 cm to 61 cm
 Height 38 1/2″ 97.79 cm
 Centerline Height 10 1/8″ 26 cm
 Weight 280 lbs 122 kg

Hydraulic Requirements
 English  Metric
 Flow  8-12 GPM  30-48 LPM
 Pressure  2,500 psi  170 BAR
 Hydraulic Quick Disconnects  Parker NS-751 and NS-752 or equivalent.

Pit Dimensions
English Metric
 Length 78″ 198 cm
 Width 18″ to 24″ 46 cm to 61 cm
