Hole Hammer Quarter Turn Reverse

Request a Quote

About this product

Vermeer Hole Hammers can handle a full range of Trenchless installation projects including gas, cable, electric, water and irrigation systems. The Hole Hammer provides a compact, fast and economical solution for short to medium length Trenchless installations. The Moving Head design provides the power to get the job done in the toughest of conditions backed by the industry leading Vermeer Dealer Network.

Product Videos

Key Features

AIR-ON QUARTER TURN REVERSE

All-steel reverse design allows the operator to simply rotate the air hose a quarter turn to reverse the tool with instant audio and visual feedback that the tool has shifted into reverse.

Hole Hammer Quarter Turn

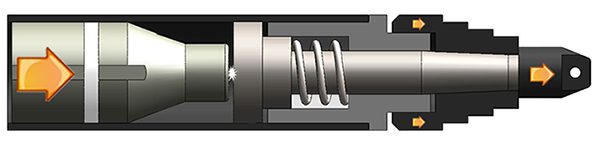

MOVING HEAD DESIGN

Moving head design allows 100% of the striker energy to be delivered to the moving head for increased production and accuracy in compact soil conditions.

SPRING RESET MOVING HEAD DESIGN

Spring reset feature resets the head after each strike to ensure the power is delivered to the soil in front of the tool for greater production in tough soils. It also provides smooth and accurate tool starts and less tool swimming.

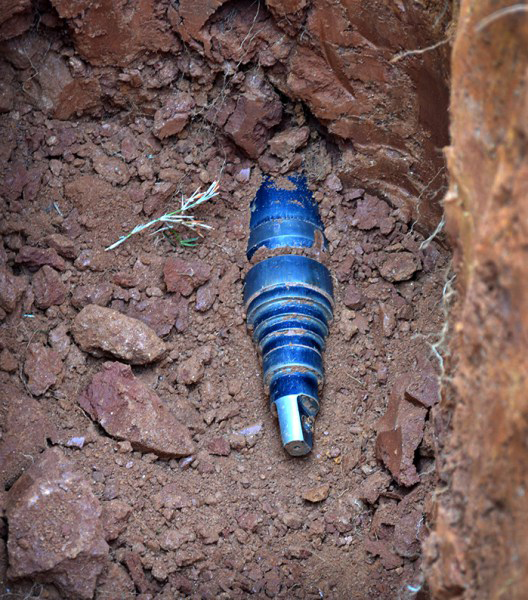

Quarter turn Stich Boring

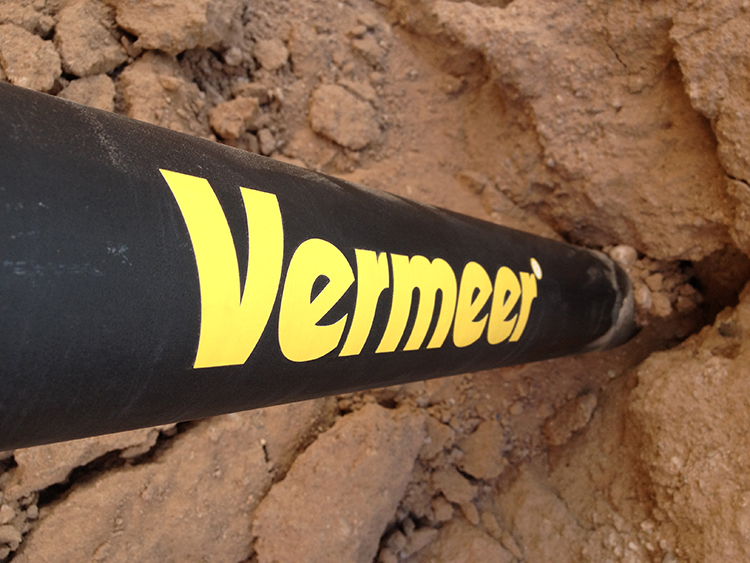

Launching tool

RIBBED TOOL BODY

The ribbed exterior body increases production by adding additional friction between the tool body and the surrounding soil. On the inside, the body bore is honed and precision fit to the striker for improved power and wear ring life.

AIR-ON QUARTER TURN REVERSE

Located on the striker and valve for increased steel component life, easier starting and maintaining tight tolerances between the striker, valve and tool body.

Hole Hammer Field Service

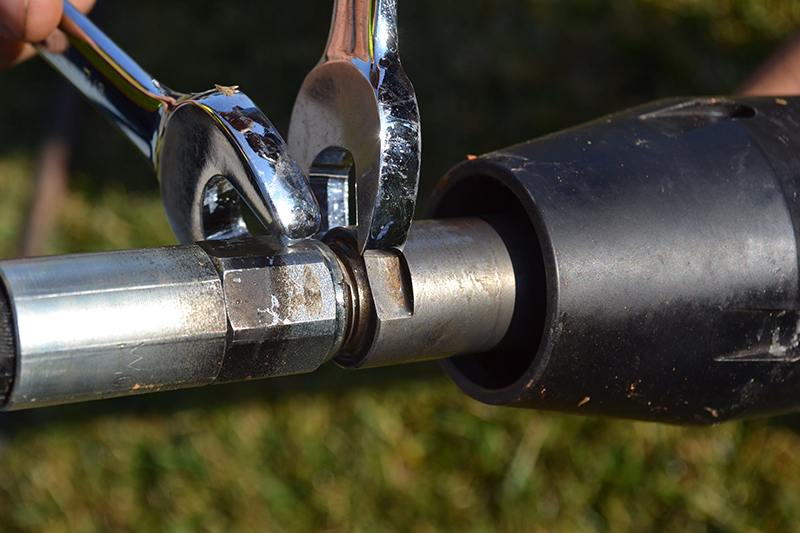

SERVICEABLE REAR TAIL HOSE

Rear hose can be field serviced in minutes with tool disassembly.

Available accessories

Available Options

Hole Hammer Quarter Turn

Vermeer Hole Hammers can handle a full range of Trenchless installation projects including gas, cable, electric, water and irrigation systems.

Moving Head Tools

The moving head design provides the power to get the job done in the toughest of conditions. It allows 100% of the energy to be transferred through the head which increases production and accuracy in compact soil conditions.
Short Tools

Short Tools

Short tools allow customers minimal surface disruptions while maintaining productivity in confined suburban areas.

Literature

Literature

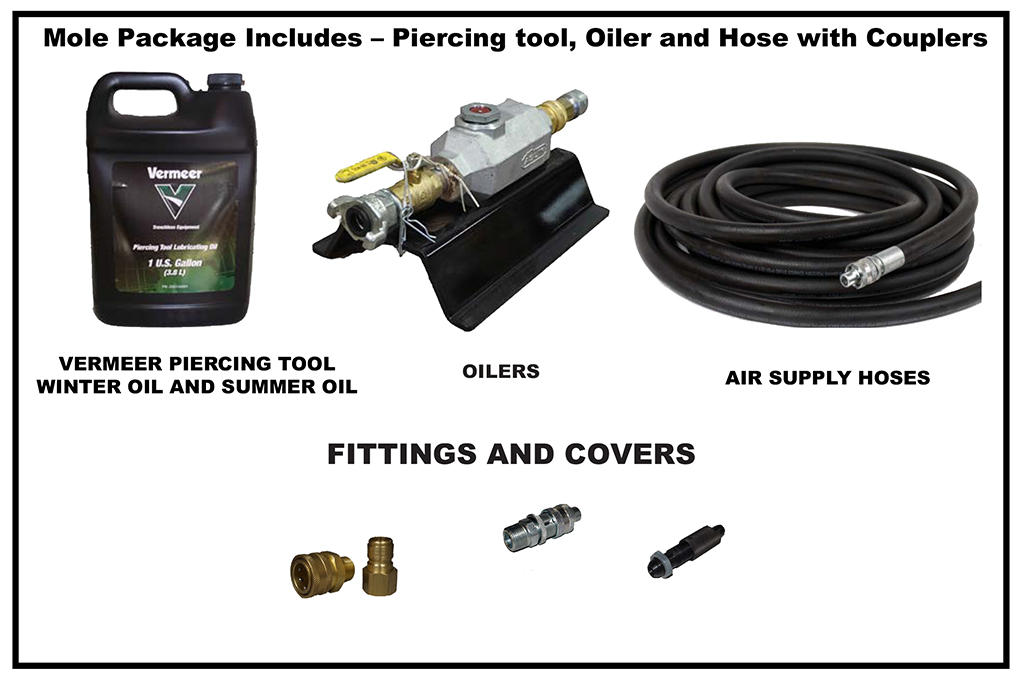

Package

Specifications

VHH180
  • Diameter – 1.8″
  • Length – 37″
  • Weight – 18 lbs
  • Air Consumption – 12 cfm
  • Air Pressure – 110 psi
  • Head Design – Replaceable
  • Blows/min – 580
VHH180RT
  • Diameter – 1.8″
  • Length – 38″
  • Weight – 19 lbs
  • Air Consumption – 12 cfm
  • Air Pressure – 110 psi
  • Head Design – Moving
  • Blows/min – 580
VHH200
  • Diameter – 2″
  • Length – 40″
  • Weight – 25 lbs
  • Air Consumption – 25 cfm
  • Air Pressure – 110 psi
  • Head Design – Replaceable
  • Blows/min – 480
VHH200RT
  • Diameter – 2″
  • Length – 40″
  • Weight – 25 lbs
  • Air Consumption – 25 cfm
  • Air Pressure – 110 psi
  • Head Design – Moving
  • Blows/min – 480
VHH250
  • Diameter – 2.5″
  • Length – 44″
  • Weight – 43 lbs
  • Air Consumption – 28 cfm
  • Air Pressure – 110 psi
  • Head Design – Replaceable
  • Blows/min – 460
VHH250RT
  • Diameter – 2.5″
  • Length – 45″
  • Weight – 44 lbs
  • Air Consumption – 25 cfm
  • Air Pressure – 110 psi
  • Head Design – Moving
  • Blows/min – 460
VHH300
  • Diameter – 3″
  • Length – 53″
  • Weight – 71 lbs
  • Air Consumption – 32 cfm
  • Air Pressure – 110 psi
  • Head Design – Replaceable
  • Blows/min – 400
VHH300RT
  • Diameter – 3″
  • Length – 54″
  • Weight – 72 lbs
  • Air Consumption – 32 cfm
  • Air Pressure – 110 psi
  • Head Design – Moving
  • Blows/min – 400
VHH330
  • Diameter – 3.3″
  • Length – 53″
  • Weight – 87 lbs
  • Air Consumption – 32 cfm
  • Air Pressure – 110 psi
  • Head Design – Replaceable
  • Blows/min – 400
VHH330RT
  • Diameter – 3.3″
  • Length – 54″
  • Weight – 88 lbs
  • Air Consumption – 32 cfm
  • Air Pressure – 110 psi
  • Head Design – Moving
  • Blows/min – 400
