VACUUM EXCAVATOR ACCESSORIES AND TOOLS

Request a QuoteRequest A Demo

About this product

Since you depend on your Vermeer by McLaughlin vacuum excavation system for a variety of tasks, we offer a wide range of additional accessories and tools to support all of your potential needs.

Product Videos

Key Features

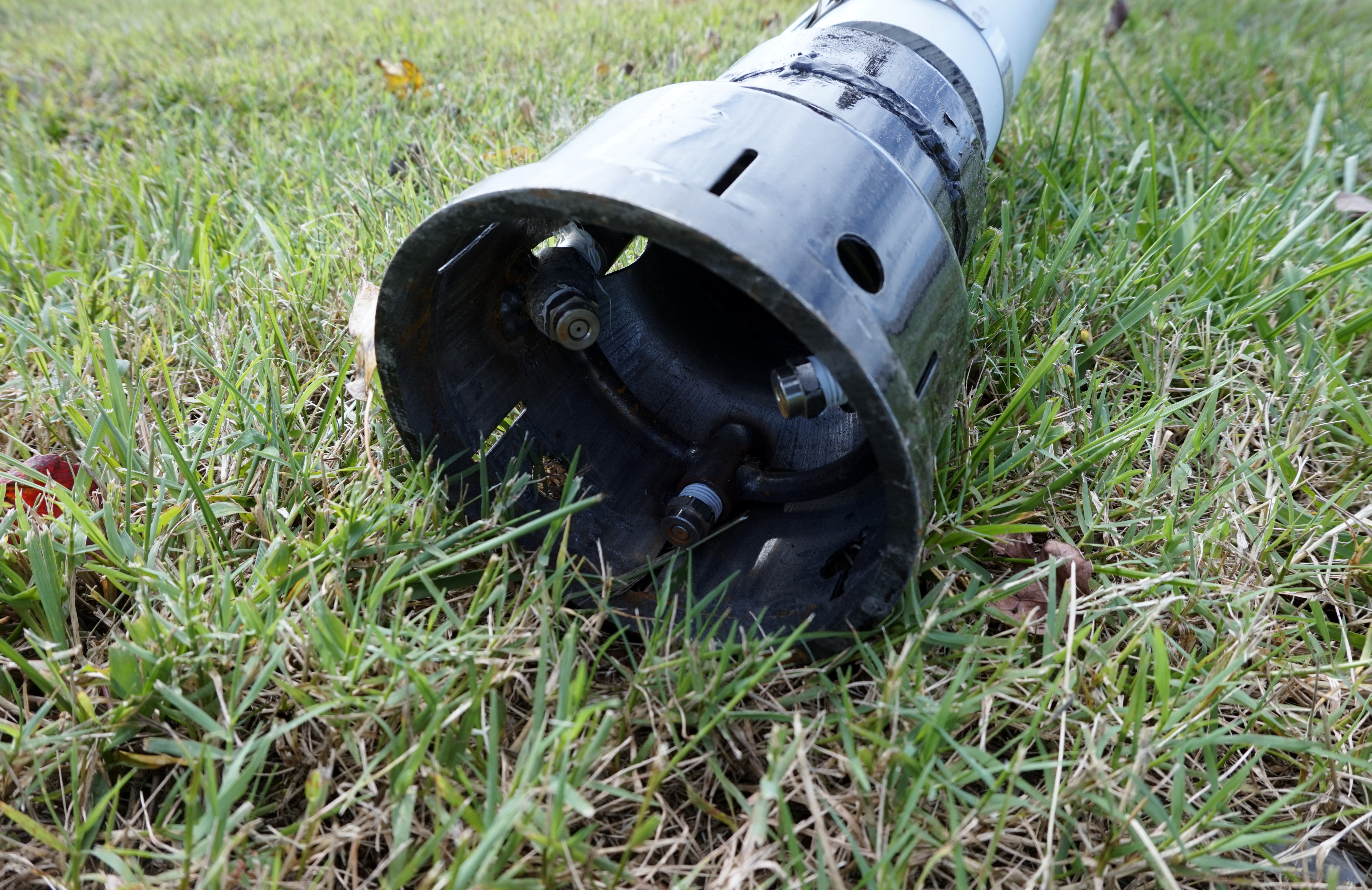

ONE MAN 5′ (1.5 M) 4 NOZZLE STANDARD
REDUCTION TOOL (8043115)

Designed for one man potholing, this patented tool allows for the simultaneous reduction and removal of soil. Four nozzles- two cutting peripheral clearance and two crossing to dislodge the core- provide maximum penetration in most soils.

ONE MAN 5' (1.5 M) 4 NOZZLE STANDARD REDUCTION TOOL

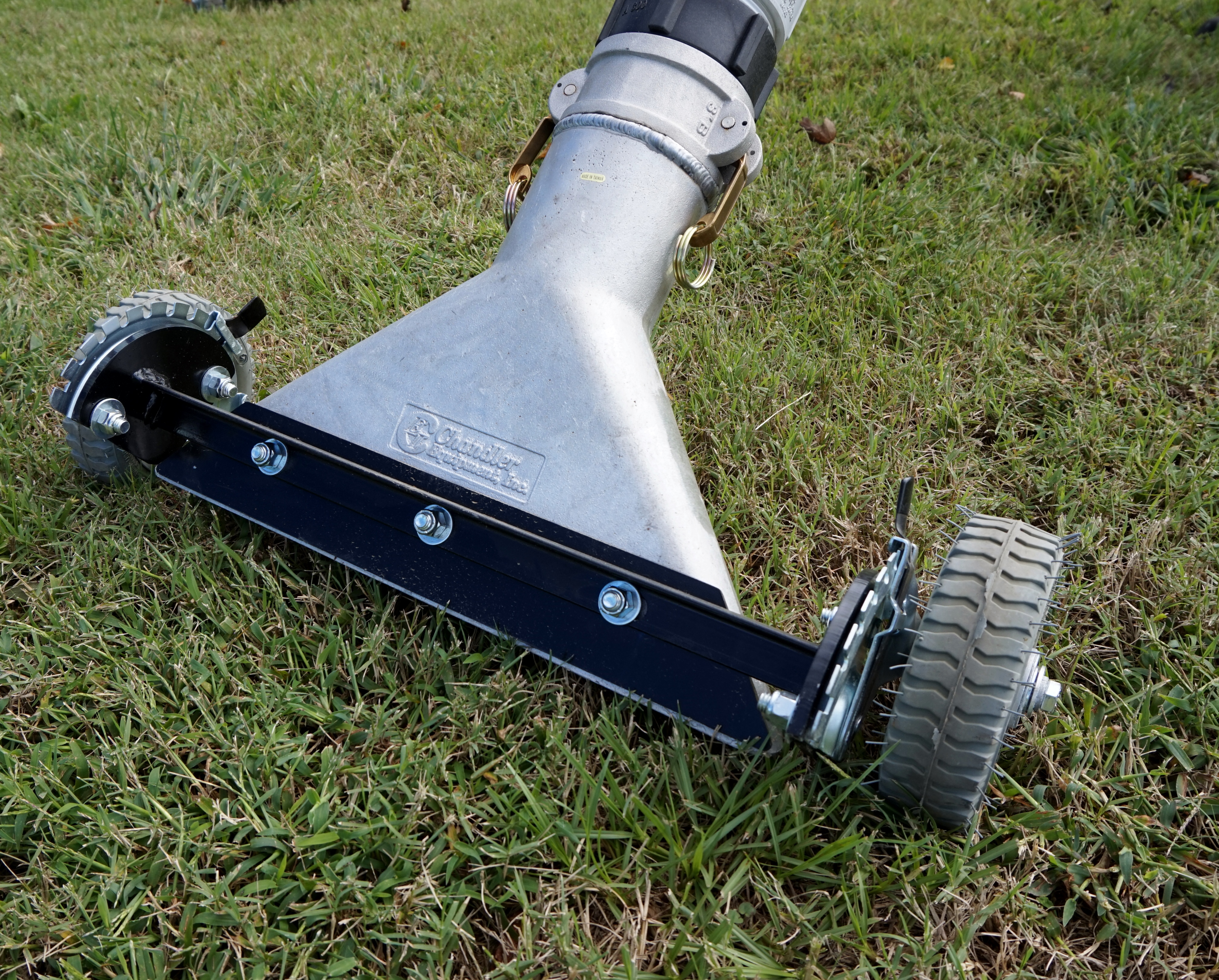

Lawn Sweeper

LAWN SWEEPER (8043935)

Configured with a gentle pick-up head to reduce damage, this sweeper can be used on turf to remove drill fluid (Bentonite and/or polymer) that has seeped to the surface during the drilling operation.

PAVEMENT SWEEPER (8043896)

Useful after a vacuuming or digging operation, the pavement sweeper cleans wet and dry spoils off concrete or asphalt surfaces. The two high-pressure water jets are used to dislodge dirt while the vacuum stream removes debris to a collection tank.

PAVEMENT SWEEPER (8043896)

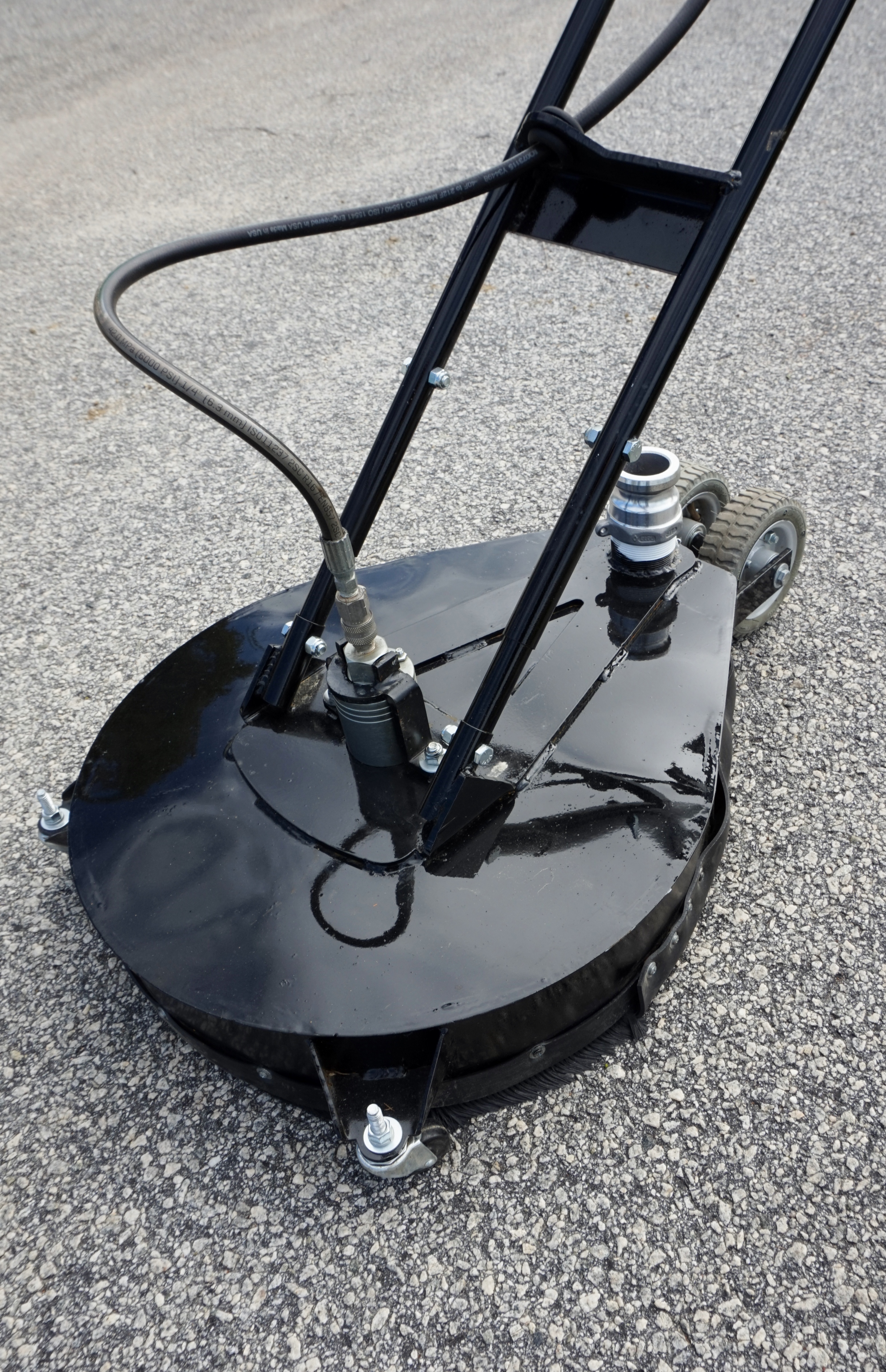

PAVEMENT CLEANER (8043480)

PAVEMENT CLEANER (8043480)

Designed for easy clean up, the pressure washer uses water-powered rotary heads to wash the surface as the vacuum suctions excess water.

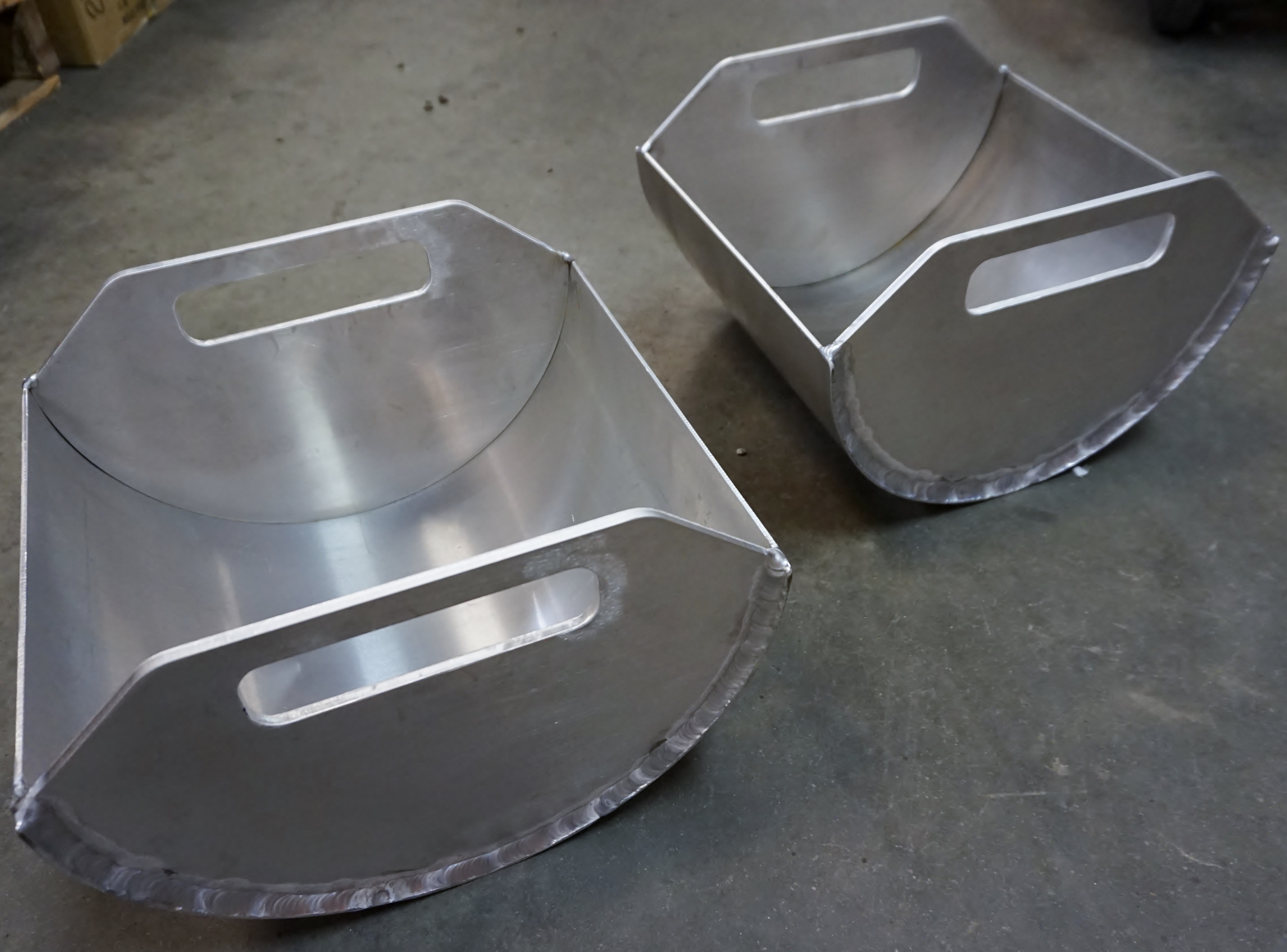

ALUMINUM CYCLONE BUCKET (8042982)

Removes dry material in high-production dry applications such as micro trenching or in-plant clean ups.

ALUMINUM CYCLONE BUCKET (8042982)

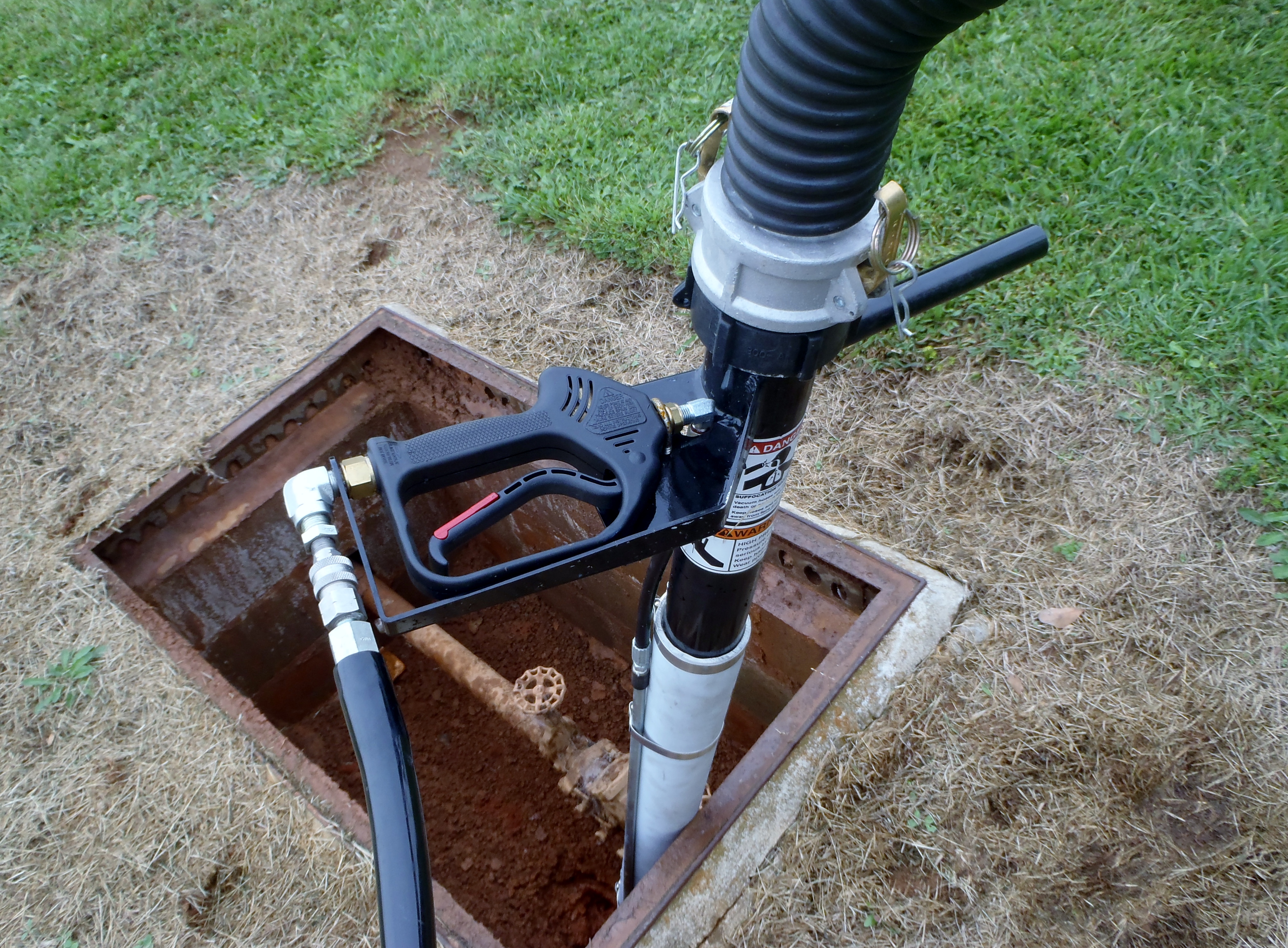

VALVE BOX CLEAN OUT TOOL (8043384)

VALVE BOX CLEAN OUT TOOL (8043384)

The 2-inch (5 cm) hose is used to remove debris from a valve box prior to exercising the valve head or shutting down the line.

Related Products

Verifier G3

McLaughlin is introducing a new utility locator, Vermeer Verifier™ G3 by McLaughlin that combines trusted precision with a simple, user-friendly interface.

VX50 Gen3

The Vermeer VX50 series is a powerful and productive vacuum excavator, equipped with a 4″ suction hose and 1,025 cfm blower it is extremely useful for production pothole applications and drill fluid management.

CS418B

CS418B Core Saw

The Vermeer CS418B core saw is designed to cut 4 – 18 inch (10 – 46 cm) diameter holes in hard surfaces, like asphalt and concrete, to help utility contractors safely locate and excavate underground utilities.

Literature

Literature

Specifications

Vacuum Excavator Accessories and Tools
 Part Number Description
 80441080  Adapter – 3″ (7.6 cm) female to 4″ (10.2 cm) male, cam lock
 8030215  3″ (7.6 cm) vacuum suction tool
 8040983  4″ (10.2 cm) vacuum suction tool
 8043119  Rotary digging lance
 8041000  Inline 3″ (7.6 cm) mister – 4 gph (15.1 L/h)
 8045528  Inline 4″ (10.2 cm) mister – 4 gph (15.1 L/h)
 8042084  Air spade – 150 cfm (4.2 m3 /min)
 8042084-05  Replacement nozzle for air spade –150 cfm (4.2 m3 /min)
 8043833  3′ (0.9 m) extension with coupler
 8042084-2  4′ (1.2 m) extension with coupler
 8042084-1  Air spade handle with trigger
 8042084-10  Adapter angle – 45 degrees
