About this product

The Vermeer VX50 series is a powerful and productive vacuum excavator, equipped with a 4″ suction hose and 1,025 cfm blower it is extremely useful for production pothole applications and drill fluid management. This third generation Vermeer vacuum excavator by McLaughlin features a 49-horsepower (36.5 kW) Tier 4 Final Kubota diesel engine and has a modular design allowing it to be trailer- or truck-mounted simply and quickly.

Product Videos

Key Features

PATENTED HIGH LIFT “CAM-OVER” EXTERNAL HYDRAULIC DOOR

The McLaughlin patented “Cam-Over” hydraulic rear door leads the industry with this simple reliable design with all components being external to the tank. The design provides a consistent 360° seal and mechanical locking mechanism, to keep fluids securely in the debris tank even under reverse pressure.

THREE-STAGE CYCLONIC FILTRATION

Standard three-stage cyclonic filtration system, which allows the vacuum to be used for both wet and dry vacuum excavating where the cyclones reduce airborne particulates from reaching the final filter and vacuum blower. This system prolongs the filter life, reducing maintenance costs.

PATENTED IN TANK WASHDOWN

Delivers a high-pressure water spray to the tank interior helping simultaneously dump material and clean the inside of the tank, Saves clean up time and makes it easier to remove dificult debris.

IN TANK WASHDOWN

REVERSE FLOW – STANDARD

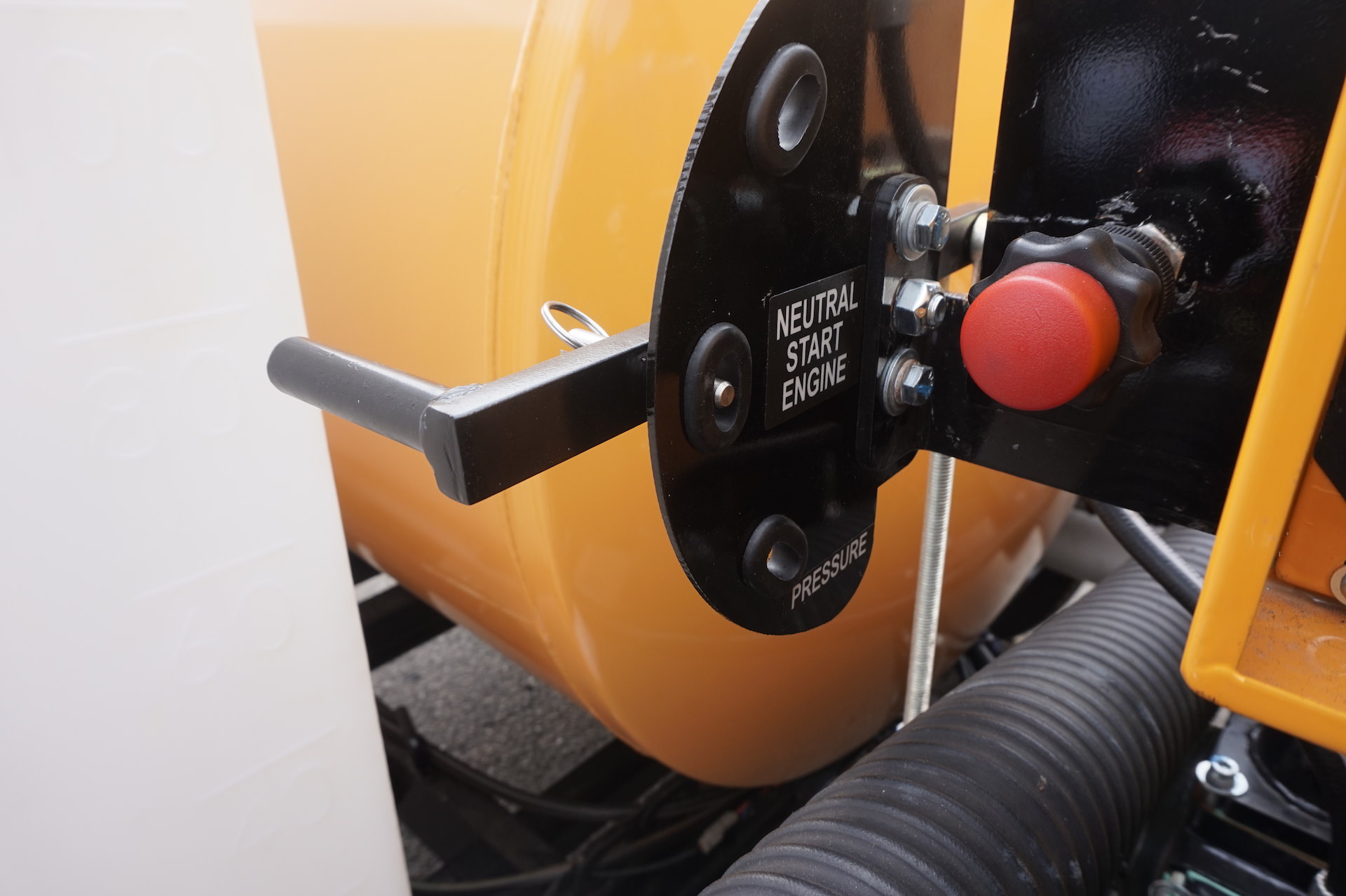

The Reverse Flow option allows for offloading liquids quickly and easily without opening the rear tank door.

NO HASSLE HOSE

Designed to be operator friendly and increase productivity, the suction hose is located conveniently along the side of the machine and can easily be taken on or off.

remote drains

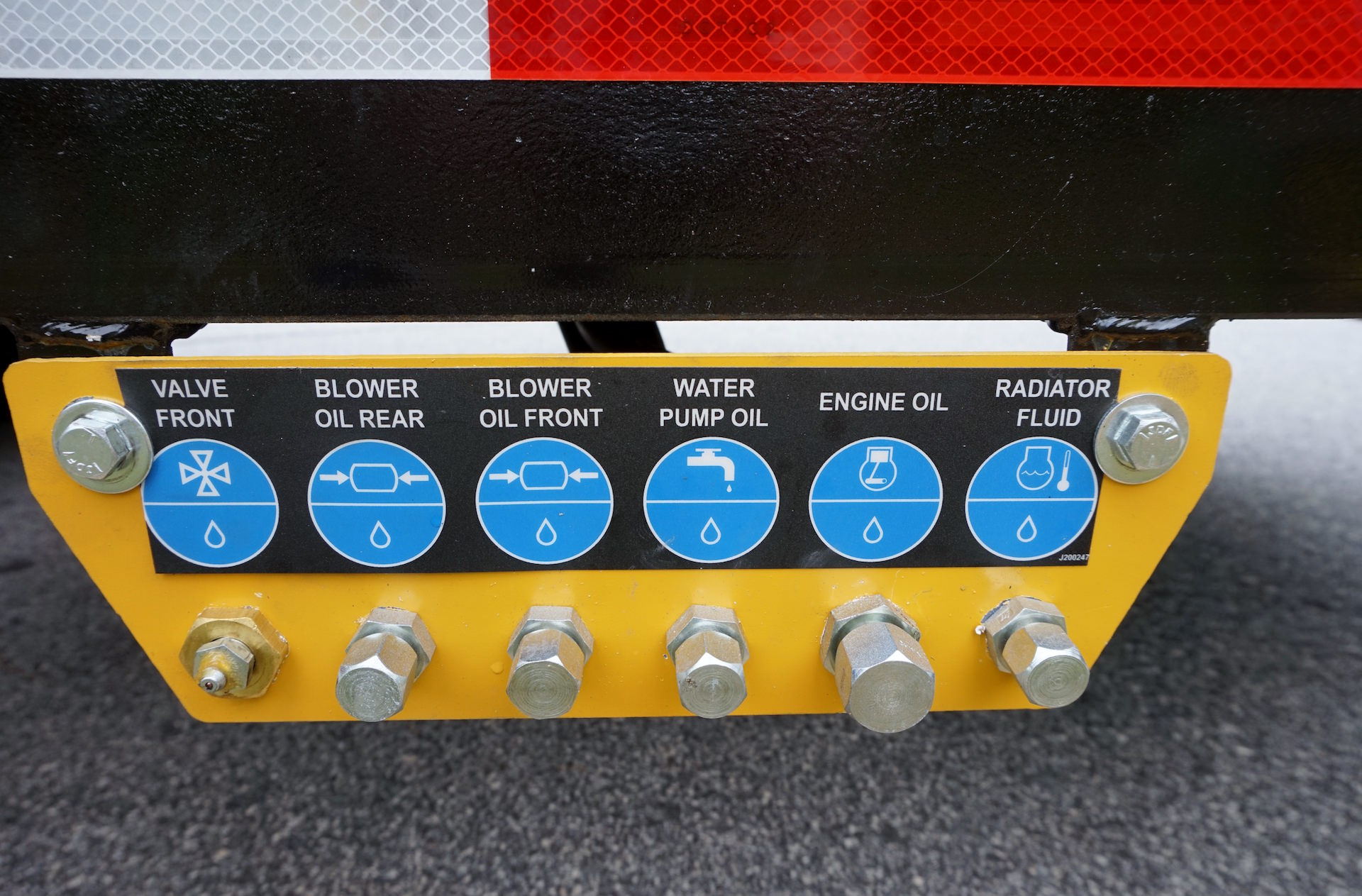

REMOTE DRAINS

Centrally located near the operator controls are the remote fluid drains and grease points.

HIGH CLEARANCE TRAILER

Featuring a high clearance trailer with dexter torsion axles allows for a durable, off-road ready machine.

IN TANK WASHDOWN
Auto Belt Tensioners

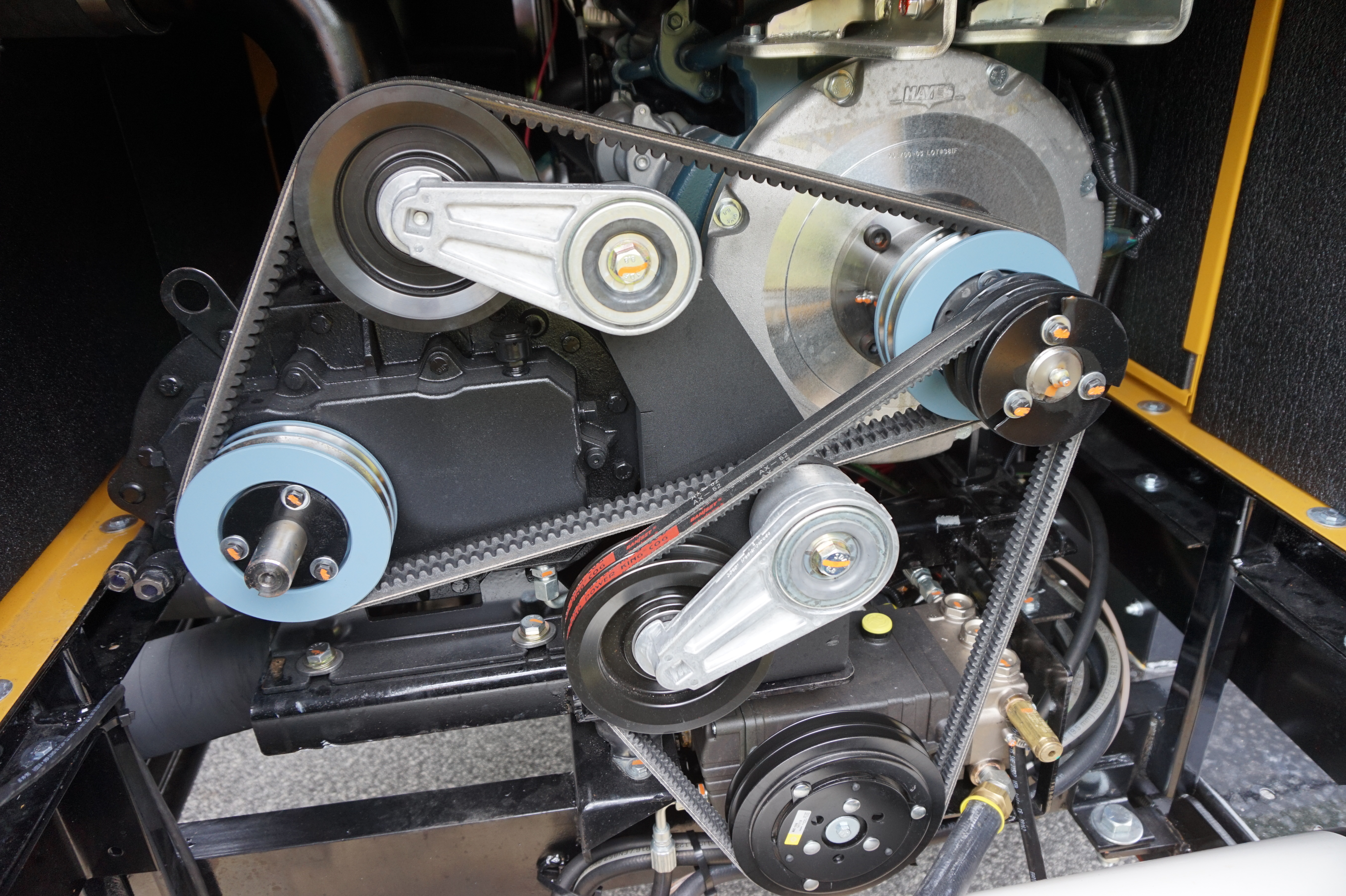

AUTO BELT TENSIONERS

Fully enclosed and protected the automatic belt tensioners keeps proper tension at all times and extends belt life.

Available Options

Strong Arm

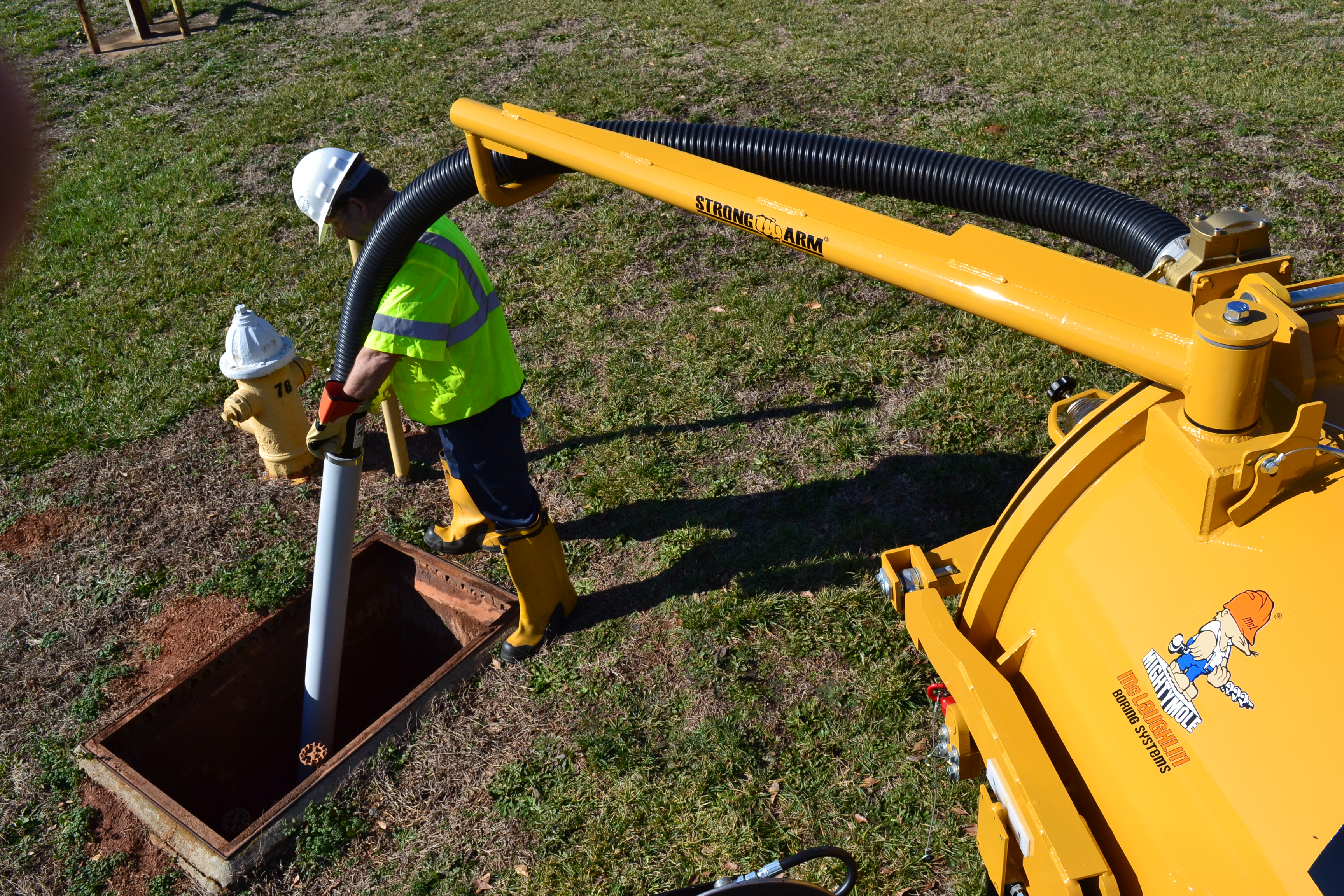

The STRONG ARM is a tank-mounted attachment that carries the weight of the vacuum hose and debris being vacuumed. It helps to reduce operator fatigue and increases job productivity.

hot box

Hot Box Water Heater

The Hot Box option allows you to work with water heated up to 165 degrees F to improve digging in hard conditions.

Hydraulic Boom

Exclusive telescoping boom maintains hose lenght during extension and incorporates a remote controlled hydraulic valve for vacuum shut off. Available with manual or hydraulic rotation.

Literature

Literature

Specifications

Specifications

General Dimensions and Weights - Skid
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Length  203.5″ (519.9 cm)  203.5″ (519.9 cm)  225.8″ (573.7 cm)  225.8″ (573.7 cm)
 Height  86″ (218.4 cm)  86″ (218.4 cm)  91.9″ (233.4 cm)  91.9″ (233.4 cm)
 Width  97.5″ (247.7 cm)  97.5″ (247.7 cm)  99″ (251.5 cm)  99″ (251.5 cm)
 Weight (Empty Weight)  7010 lb (3179.7 kg)  6590 lb (2989.2 kg)  CALL FACTORY  CALL FACTORY



General Dimensions and Weights - Trailer
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Empty Weight  7,000 lbs (3,175.1 kg)  6,250 lbs (2,834.95 kg)  8,500 lbs (3,855 kg)  8,3209 lbs (3,772.9 kg)
 Length  218.69″ (555.47 cm)  218.69″ (555.47 cm)  225.81″ (573.56 cm)  225.81″ (573.56 cm)
 Width  96.87″ (246.05 cm)  96.87″ (246.05 cm)  99″ (251.5 cm)  99″ (251.5 cm)
 Height  88.69″ (225.27 cm)  88.69″ (225.27 cm)  91.88″ (233.38 cm)  91.88″ (233.38 cm)
 Brake Type  Electric  Electric  Electric  Electric
 Hitch Type  Pintle  Pintle  Pintle  Pintle
 Weight (Gross Vehicle Weight)  12,000 lbs (5,443.1 kg)  9999/4535.5  18,000 lbs (8,164.7 kg)  18,000 lbs (8,164.7 kg)
 Trailer Axels  (2) 6,000 lbs (2,721.6 kg)  (2) 6,000 lbs (2,721.6 kg)  (2) 9,000 lbs (4,082.3 kg)  (2) 9,000 lbs (4,082.3 kg)

Engine
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Horsepower  49 Tier 4  49 Tier 4  49 Tier 4  49 Tier 4
 Enclosure  Full Sound Dampening with Lockable Doors  Full Sound Dampening with Lockable Doors  Full Sound Dampening with Lockable Doors  Full Sound Dampening with Lockable Doors
 Fuel Tank Capacity  21 gal (79.5 L)  21 gal (79.5 L)  21 gal (79.5 L)  21 gal (79.5 L)

Water Tank
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Water Tank Capacity  250 gal (946.4 L)  100 gal (378.5 L)  410 gal (1,552 L)  250 gal (946.4 L)
 Number of Tanks  2-125  2–50  2-205  2-125
 High Pressure Pump: Flow Rate  5.6 gpm  5.6 gpm  5.6 gpm  5.6 gpm
 High Pressure Pump: Pressure  3,000 psi  3,000 psi  3,000 psi  3,000 psi
 High Pressure Hose Length  50′ (1.27 m)  50′ (1.27 m)  50′ (1.27 m)  50′ (1.27 m)
 Low Water Shutoff  Electric  Electric  Electric  Electric

Spoil Tank
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Spoil Tank Capacity  500 gal (1,892.7 L)  400 gal (1,514.2 L)  800 gal (3,028.3 L)  800 gal (3,028.3 L)
Door Type  Cam-Over Cam-Over Cam-Over  Cam-Over
In Tank Washdown Standard Standard Standard Standard
Mechanical Full Tank Shutoff Standard Standard Standard Standard
Electric Full Tank Shutoff Standard Standard Standard Standard
Tank Lift Type Dual Cyl  Dual Cyl Dual Cyl Dual Cyl

Vacuum
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Type of Filters  2 Micron Washable  2 Micron Washable  2 Micron Washable  2 Micron Washable
 Cyclonic Filtration System  Standard  Standard  Standard  Standard
 Hose Length  2-14′ (4.3 m)  2-14′ (4.3 m)  2-14′ (4.3 m)  2-14′ (4.3 m)
 Hose Width  4″ (10.2 cm)  4″ (10.2 cm)  4″ (10.2 cm)  4″ (10.2 cm)
 Vacuum Hg Mercury  15  15  15  15
 Vacuum cfm  1025  1025  1025  1025
 Suction Hose Storage  Standard  Standard  Standard  Standard

Control Panel
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Gauges  Vac & Wat  Vac & Wat  Vac & Wat  Vac & Wat

Boom
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Reach 14′ (4.27 m)  N/A 14′ (4.27 m) 14′ (4.27 m)
 Movement 270 Degree Rotation N/A 270 Degree Rotation 270 Degree Rotation
Remote Control Wireless N/A Wireless  Wireless

Available Options
 VX50-500  VX50-500LT  VX50-800  VX50-800LT
 Pressure Offloading (reverse Flow)  Yes  Yes  Yes  Yes
 Strong Arm (Manual Boom)  Yes  Yes  Yes  Yes
 Hydraulic Boom – Manual Rotation  Yes  N/A  Yes  Yes
 Hydraulic Boom – Hydraulic Rotation  Yes  N/A  Yes  Yes
 Hot Box Water Heater  Yes  Yes  Yes  Yes
 Air Compressor  N/A  N/A  N/A  N/A
 Additional Fresh Water Options  N/A  N/A  N/A  N/A
 Sewer Jetter  N/A  N/A  N/A  N/A
 Compact Core Drill  N/A  N/A  N/A  N/A
