About this product

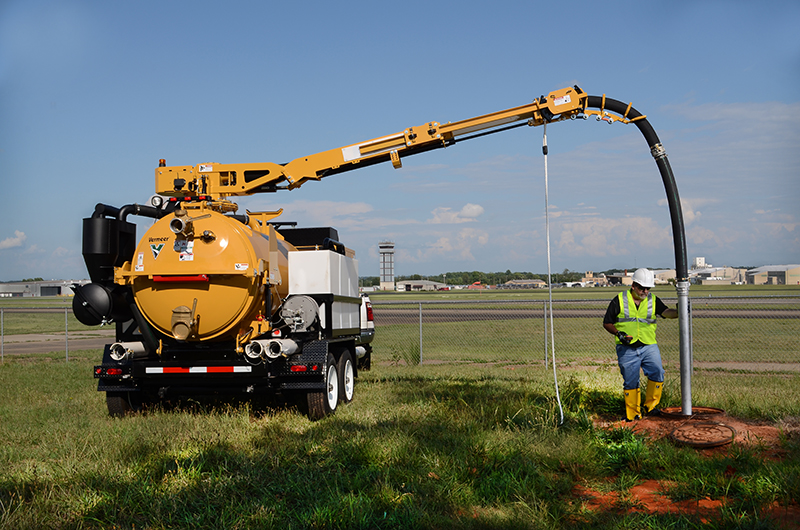

The ECO100 series of Vacuum Excavators were designed to with enough horse power to run both an industry leading 1200 cfm blower with 15” of Mercury and also a 100psi x 185 cfm air compressor as well as our 5.6 gpm water pumps. These packages are available in 500, 800 and 1,200 gallon options and offer contractors the versatility of running both wet or dry Vacuum excavation operations at the flip of a switch from Air to Water excavation. The ECO100 series comes standard like all Vermeer High CFM Vacuum Excavators with Duel large cyclonic separators at the rear of the Vacuum and away from the final filter for TRUE industry leading 3 Stage Cyclonic filtration for both wet and dry Vacuum excavation.

*Ask about our dry spoil tank option for carrying back fill material to the jobsite

Product Videos

Key Features

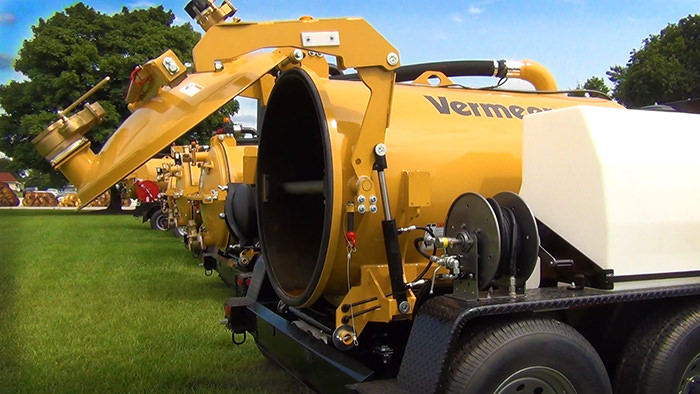

PATENTED CAM-OVER HYDRAULIC REAR DOOR

Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable Cam-Over design has no in-tank moving parts, so all maintenance is external.

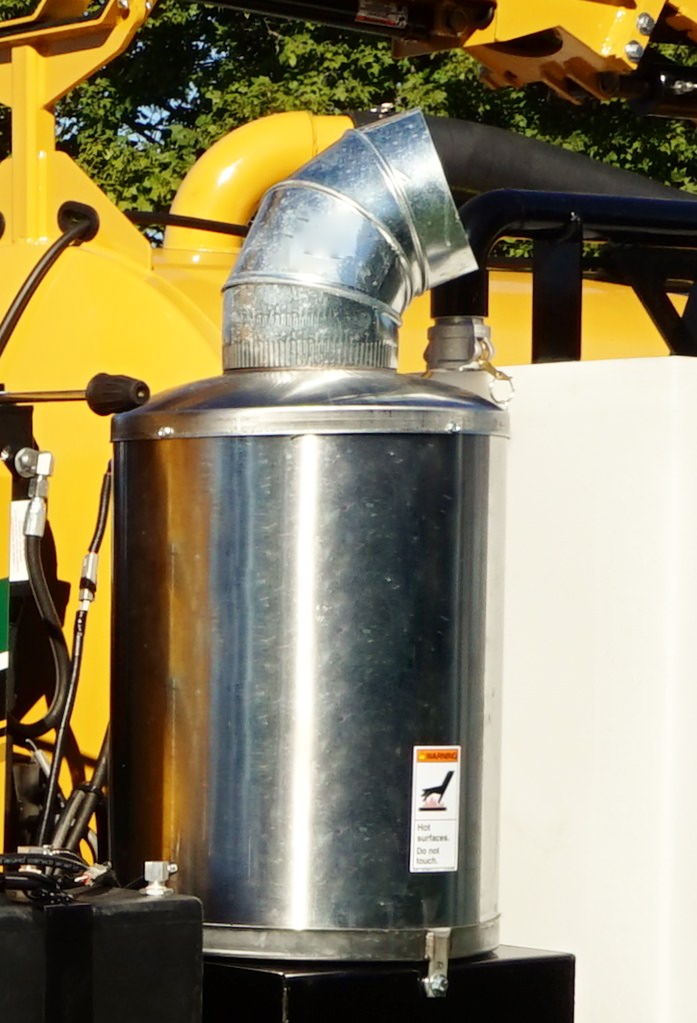

3-STAGE CYCLONIC FILTRATION

Engineered to prolong filter and blower life, the system is suitable for wet and dry applications. The cyclones use a tuned vortex system in which the outer vortex spiral forces small particles to fall into a separate canister. The filtered stream then passes up through the inner cyclone tube and carried to the final poly filter and cleaned to .5 micron.

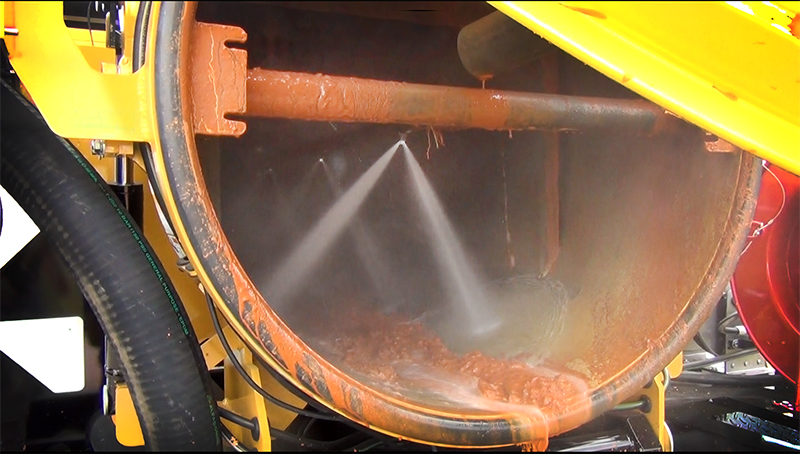

PATENTED IN TANK WASHDOWN SYSTEM

Delivers a high-pressure water spray to the tank interior helping simultaneously dump material and clean the inside of the tank, saves clean up time, and makes it easier to remove dificult debris.

THE ECONOMICAL CHOICE

Over 50% savings on fuel economy when compared to PTO drive. Low engine maintenance costs compared to truck engine services. Mount on new or used double frame truck chassis, on off road crawler carriers.

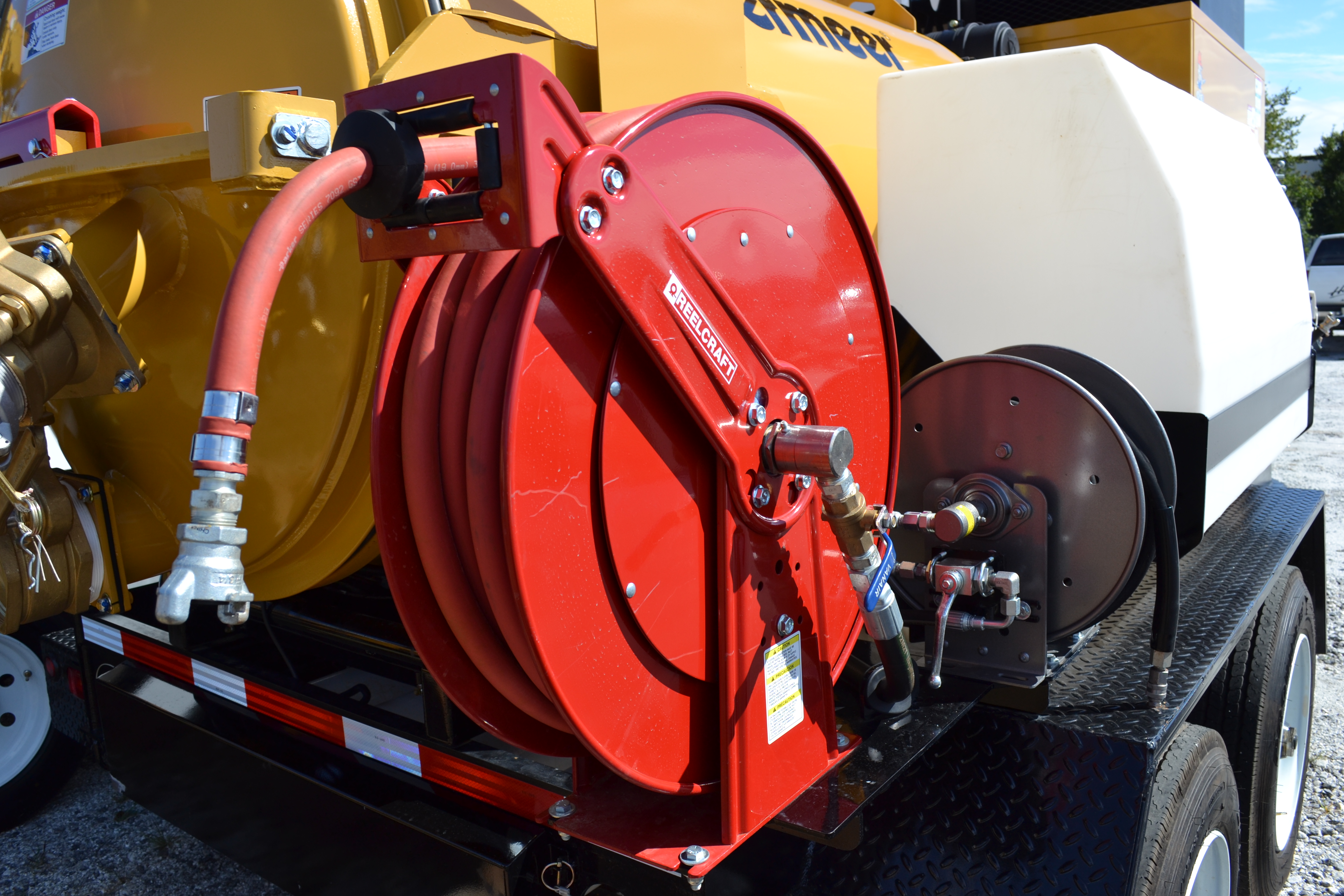

AIR VACUUM EXCAVATION

Offers the versatility of running both wet or dry vacuum excavation operations at the flip of a switch from air to water excavation.

Available Options

Hydraulic Boom

Exclusive telescoping boom maintains hose lenght during extension and incorporates a remote controlled hydraulic valve for vacuum shut off. Available with manual or hydraulic rotation.

Hot Box

The Hot Box option allows you to work with water heated up to 165 degrees F to improve digging in conditions such as frost.

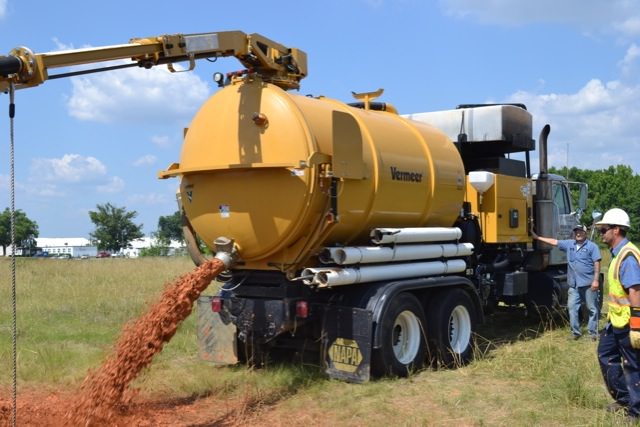

Reverse Flow

The Reverse Flow option allows for offloading liquids quickly and easily without opening the rear tank door.

Literature

Literature

Specifications

GENERAL WEIGHTS AND DIMENSIONS
500 Gallon 800 Gallon 1200 Gallon
 Length 186″ 204″ 245″
 Width 96″ 99″ 99″
 Height 66″ 71″ 86″
 Empty Weight 6,280 lbs 7,600 lbs 9,500 lbs
 Empty weight with Boom 7,480 lbs 8,800 lbs 10,700 lbs
 Spoil Tank Capacity 500 gal 800 gal 1200 gal

ENGINE
 Make and Model Kubota V3800-CR-T(I)E4
 Type Vertical 4 cycle liquid cooled Diesel
 Max Engine RPM 2,600 rpm
 Gross Horsepower 99.9 hp (74.5 kW)
 Displacement 3.769 L (230.0 cu.in)
 Aspiration Natural
 Emissions rating Tier 4 Final (EU Stage IIIB)
 Fuel Tank 22 gal
 Enclosure Full Sound Dampening

Vacuum
 Type of Filters 2 Micron Washable Filter
 Cyclonic Filtration System Standard
 Hose Length (3) 10′
 Hose Diameter 4″
 Vacuum Mercury 15″
 Blower 1200 cfm

SPOIL TANK
 Rear Door Type Cam Over Hydraulic
 In-Tank Washdown Yes
 Full Tank Shut Off Mechanical/Electric
 Tank Lift Type Hydraulic

WATER TANK
 Water Tank Capacity 125 gal
 Number of Tanks 2
 Water Pump 5.6 gpm x 3,000 psi
 High Pressure Hose Length 50′
 Low Water Shutoff Electric

BOOM
 Weight 1,200 lbs
 Reach 14′
 Movement 270 degrees
 Remote Control Wireless

AVALIABLE OPTIONS
 Reverse Flow Optional
 Strong Arm N/A
 Hydraulic Boom Yes
 Hot Box Water Heater Yes
 Air Compressor 185 CFM x 100 PSI Yes
