About this product

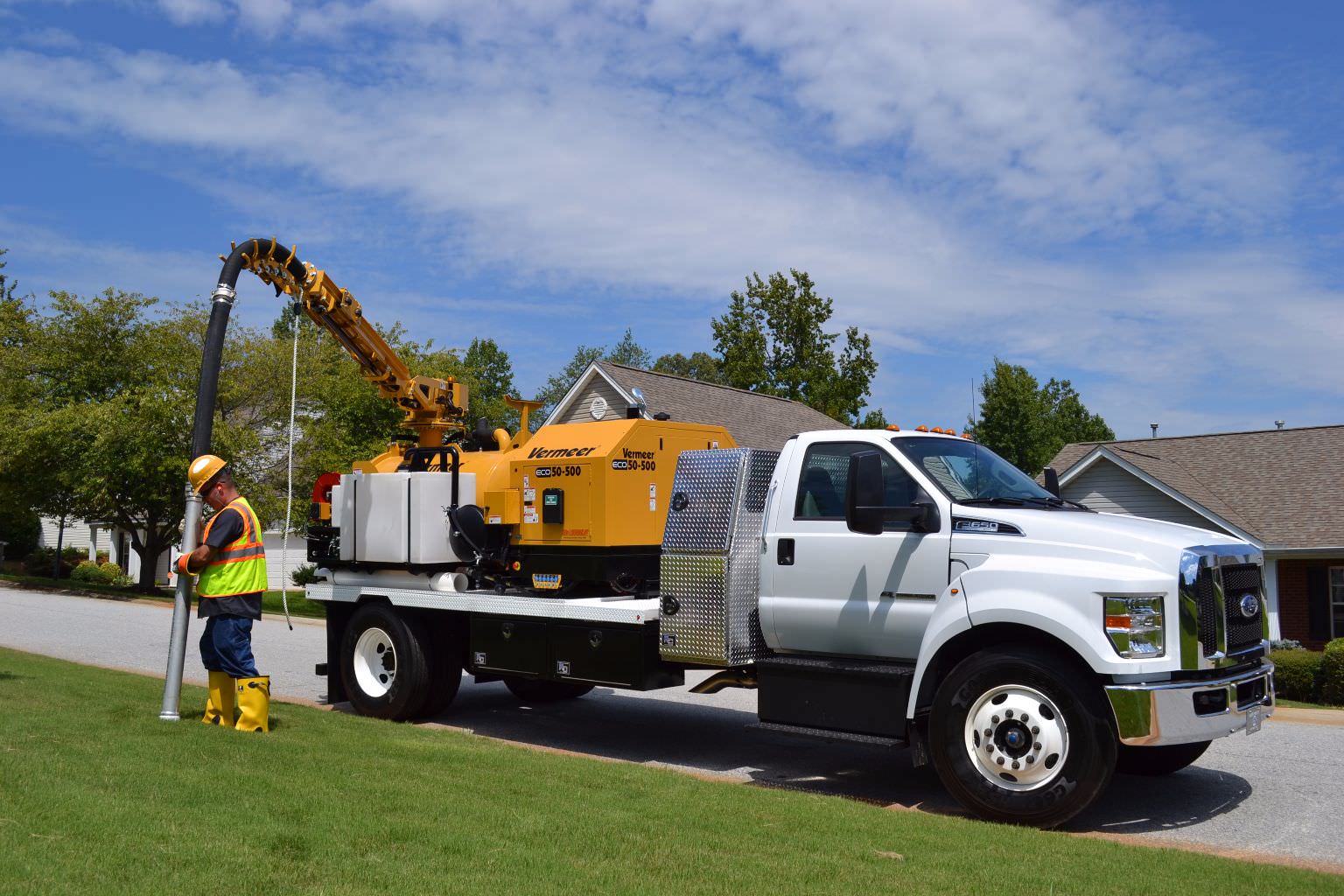

The VSK70 – VSK80 series of Vacuum Excavators are equipped for international markets where a complete Vacuum Excavation package is desired for truck mounting or large scale projects where portability and versatility are critical. Utilizing a 67 HP Kubota diesel engine (VSK70) or 85 HP Kubota diesel engine on a single pick skid assembly using a high 1025 cfm blower at 15” mercury and 5.6 gpm water pump, this package is productive and equipped with 4” suction hose or two hydraulic boom options. This high performing package can be mated up with our compact core saw attachment or sewer jetter reel with high capacity water pump package for the ultimate in versatility. These VSK packages are available in 500, 800 and 1200 gallon options to fit your truck and job site needs.
*Ask about our dry spoil tanks for carrying back-fill material to the job site
Product Videos
Key Features
PATENTED HIGH LIFT “CAM-OVER” EXTERNAL HYDRAULIC DOOR
The McLaughlin patented “Cam-Over” hydraulic rear door leads the industry with this simple reliable design with all components being external to the tank. The design provides a consistent 360° seal and mechanical locking mechanism, to keep fluids securely in the debris tank even under reverse pressure.
THREE-STAGE CYCLONIC FILTRATION
Standard three-stage cyclonic filtration system, which allows the vacuum to be used for both wet and dry vacuum excavating where the cyclones reduce airborne particulates from reaching the final filter and vacuum blower. This system prolongs the filter life, reducing maintenance costs.
PATENTED IN-TANK WASHDOWN
Delivers a high-pressure water spray to the tank interior helping simultaneously dump material and clean the inside of the tank, Saves clean up time and makes it easier to remove dificult debris.
Available Options
Hydraulic Boom
Exclusive telescoping boom maintains hose lenght during extension and incorporates a remote controlled hydraulic valve for vacuum shut off. Available with manual or hydraulic rotation.
Hot Box Water Heater
The Hot Box option allows you to work with water heated up to 165 degrees F to improve digging in hard conditions.
Sewer Jetter
The J12-30 Sewer Jetting system turns your vacuum system into a versatile jetter/vac combination unit.
Compact Core Saw
The McLaughlin Mini Core Drill features an integrated cutting tool available in 6, 8 or 10 inches. A patented vacuum suction base uses a sealing gasket between the core drill base and the pavement surface.
Literature
Specifications
General Dimensions and Weights - Skid
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Length | NA | NA | NA | 186″ (472.4 cm) | 214.9″ (545.8 cm) | 244.8″ (621.8 cm) |
| Height | NA | NA | NA | 66″ (167.6 cm) | 74.3″ (188.7 cm) | 85.8″ (217.9 cm) |
| Empty Weight | NA | NA | NA | 6280 lbs | Call | 9500 lbs (4310 kg) |
| Width | NA | NA | NA | 96″ (243.8 cm) | 96.9″ (246.1 cm) | 98.1″ (249.2 cm) |
General Dimensions and Weights - Trailer
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Empty Weight | 8020 | 11380 | NA | NA | NA | |
| Length | 232″ (589.3 cm) | 259″ (657.9 cm) | 289.8″ (736.1 cm) | NA | NA | NA |
| Width | 96″ (243.8 cm) | 102″ (259.1 cm) | 102.6″ (260.6 cm) | NA | NA | NA |
| Height | 94″ (238.8 cm) | 117″ (297.2 cm) | 109.9″ (279.1 cm) | NA | NA | NA |
| Brake Type | ELECTRIC | ELECTRIC | NA | NA | NA | |
| Hitch Type | PINTLE | PINTLE | PINTLE | NA | NA | NA |
| Weight (Gross Vehicle Weight) | 14000 lbs (6350.3 kg) | 24000 lbs (10886.2 kg) | 24000 lbs (10886.2 kg) | NA | NA | NA |
| Trailer Axles | 7000 lbs (3175.1 kg) | 12000 lbs (5443.1 kg) | 12000 lbs (5443.1 kg) | NA | NA | NA |
Engine
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Horsepower | 99 | 99 | 99 | 99 | 99 | 99 |
| Enclosure | SED AND LOCKABLE | FULLY ENCLOSED AND LOCKABLE | FULLY ENCLOSED AND LOCKABLE | |||
| Fuel Tank Capacity | 22/83.3 | 22/83.3 | 22/83.3 | 22/83.3 | 22/83.3 | 22/83.3 |
Water Tank
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Water Tank Capacity | 250 gal (946.4 L) | 250 gal (946.4 L) | 410 gal (1552 L) | 250 gal (946.4 L) | 250 gal (946.4 L) | 410 gal (1552 L) |
| Number of Tanks | 2-125/473.2 | 2-125/473.2 | 2-205/776 | 2-125/473.2 | 2-205/776 | 2-205/776 |
| High Pressure Pump: Flow Rate | 5.6 gpm (21.2 L/min) | 5.6 gpm (21.2 L/min) | 5.6 gpm (21.2 L/min) | 5.6 gpm (21.2 L/min) | 5.6 gpm (21.2 L/min) | 5.6 gpm (21.2 L/min) |
| High Pressure Pump: Pressure | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| High Pressure Hose Length | 50′ (15.2 m) | 50′ (15.2 m) | 50′ (15.2 m) | 50′ (15.2 m) | 50′ (15.2 m) | 50′ (15.2 m) |
| Low Water Shutoff | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC |
Spoil Tank
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Spoil Tank Capacity | 500 gal (1892.7 L) | 800 gal (3028.3 L) | 1200 gal (4542.5 L) | 500 gal (1892.7 L) | 800 gal (3028.3 L) | 1200 gal (4542.5 L) |
| Door type | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC |
| In Tank Washdown | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Mechanical full tank shut off | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Electric full tank shut off | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Tank Lift Type | DUAL CYL | DUAL CYL | DUAL CYL | DUAL CYL | DUAL CYL | DUAL CYL |
Vacuum
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Type of Filters | 2 MICRON WASHABLE | 2 MICRON WASHABLE | 2 MICRON WASHABLE | |||
| Cyclonic filtration system | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Hose Length | 3-10′ (3.04 m) | 3-10′ (3.04 m) | 3-10′ (3.04 m) | 3-10′ (3.04 m) | 3-10′ (3.04 m) | 3-10′ (3.04 m) |
| Hose Width | 4″ (10.2 cm) | 4″ (10.2 cm) | 4″ (10.2 cm) | 4″ (10.2 cm) | 4″ (10.2 cm) | 4″ (10.2 cm) |
| Vacuum Hg Mercury | 15 | 15 | 15 | 15 | 15 | 15 |
| Vacuum cfm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Suction Hose Storage | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
Control Panel
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Gauges | PRESSURE AND COMPRESSOR TEMPERATURE | PRESSURE AND COMPRESSOR TEMPERATURE | PRESSURE AND COMPRESSOR TEMPERATURE | PRESSURE AND COMPRESSOR TEMPERATURE | PRESSURE AND COMPRESSOR TEMPERATURE | PRESSURE AND COMPRESSOR TEMPERATURE |
Boom
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Reach | 14′ (4.3 m) | 14′ (4.3 m) | 14′ (4.3 m) | 14′ (4.3 m) | 14′ (4.3 m) | 14′ (4.3 m) |
| Movement | 270 DEGREE ROTATION | 270 DEGREE ROTATION | 270 DEGREE ROTATION | |||
| Remote Control | WIRELESS | WIRELESS | WIRELESS | WIRELESS | WIRELESS | WIRELESS |
Available Options
| VX100XT AIR Units | VX100XT-500 AIR | VX100XT-800 AIR | VX100XT-1200 AIR | VSK100XT-500 AIR | VSK100XT-800 AIR | VSK100XT-1200 AIR |
| Pressure offloading (reverse flow) | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL |
| Strong Arm (manual boom) | YES | YES | ||||
| Hydraulic Boom | YES | YES | YES | YES | YES | YES |
| Hot Box water heater | YES | YES | YES | YES | YES | YES |
| Air Compressor | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Additional Fresh water options | YES | YES | YES | YES | YES | YES |
| Sewer Jetter | YES | YES | YES | YES | YES | YES |
| Compact Core Drill | YES | YES | YES | YES | YES | YES |
