About this product
The MEGA VX200 is a truck mounted vacuum excavator that features a 200-horsepower (149 kW) John Deere Tier 3 engine, a 3-stage cyclonic filtration system and spoil tank capacities ranging from 1,200 to 3,000 gallons (4,542.5 to 11,356.2 L) with the standard option of 800 gallons (3,028.3 L) of fresh water. It has a 6-inch (15.2 cm) hose diameter and a 3,500 “free air” cfm (99.1 m3/min) blower capable of 18 inches of mercury. The tank, power pack and water system all have a modular design — versatility that allows a contractor to mount the unit on either a new or a re-purposed truck chassis.
The MEGA VX200 6-inch series was designed after listening to customers who said they wanted a vacuum excavator for their potholing jobs and fluid management needs that fills a gap between smaller trailer-mounted vacuum excavators and the largest truck-mounted units.
3-STAGE CYCLONIC FILTRATION

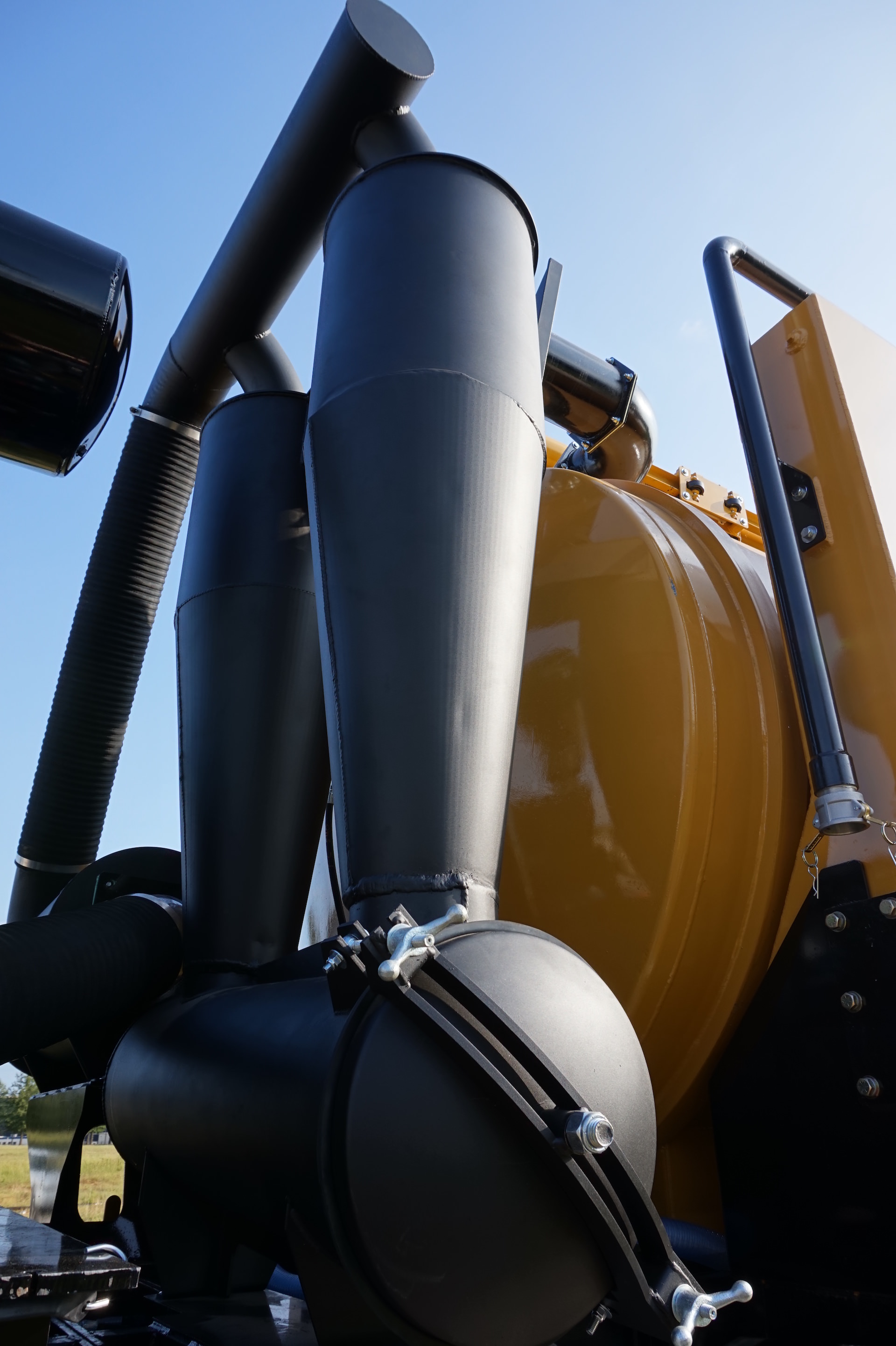

McLaughlin uses TRUE three-stage filtration system that allows for both wet and dry vacuum excavation. The dual 17″ x 55″ cyclones are custom designed for the VX200 with high efficiency dual vertical stems. After material passes through the tank, the air moves to the Cylonic Filtration System where dust-size particles are cyclonically removed. Then the pre-filtered clean air stream passes through a removable, washable micron-poly filter before reaching the blower.
PATENTED “CAM-OVER” HYDRAULIC REAR DOOR

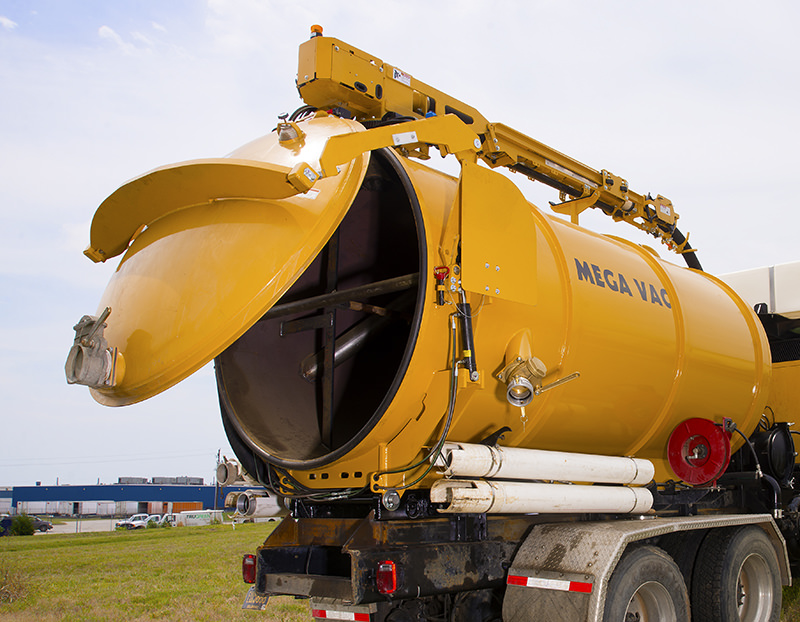

Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable
Cam-Over design has no in-tank moving parts, so all maintenance is external.
FULL-FUNCTION REMOTE CONTROL

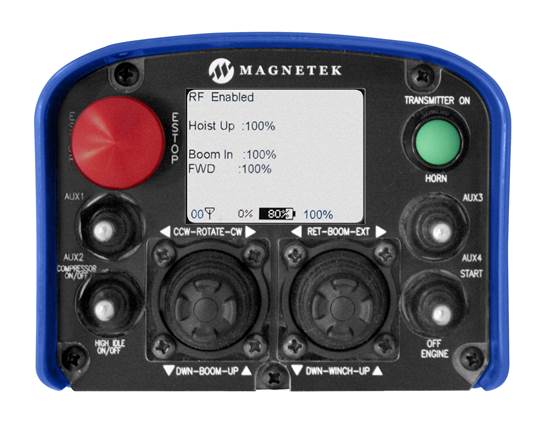

The Magnetek Telemotive Mini-MBT radio remote controls all machine functions and delivers vital machine information through its display. The remote easily straps to operator, and features an emergency stop for safety.
LARGER HOSE DIAMETER
Featuring a 6-inch (15.2 cm) hose diameter with a 3,500 “free air” cfm (99.1 m3/min) blower and 18 inches of hg (.6 bar) to get more work done and take on bigger jobs.
VACUUM NEUTRAL MODE
This safety feature allows the blower to suck “free air” vs. having the hose live at all times. It also allows the engine and blower to “unload” or free run when not in use – proloning blower and engine life.
Tank, power pack and water system all have a modular design — delivering versatility that allows the option of mounting the unit on either a new or repurposed truck chassis.
The industry-leading Hydraulic Boom offers speed, reliability and ease of operation. The telescoping design maintains hose length during boom extension and incorporates a 14″ (35.6 cm) bearing with a 270-degree range of motion. The boom features a 14′ (4.3 m) reach capability.
General Dimensions & Weights
|Length||214.9″ (545.8 cm)|
|Height w/boom||109.7″ (278.6 cm)|
|Empty Weight||14,500 lbs (6,577.1 kg)|
|Width||97.9″ (248.7 cm)|
|Spoil Tank Capacity||2,000 gal (7,570.8 L)|
|Horsepower||200 hp (149.1 kw) John Deer Diesel|
|Fuel Tank Capacity||Plumb to Truck Fuel Tanks|
|Water Tank Capacity||800 gal (3,028.3 L)|
|Number of Tanks||(2) 400 gal (1,514.2 L)|
|Water Pump||10 gpm @ 3,000 psi (37.9 L/min @ 206.8 bar)|
|High Pressure Hose Length||50′ (15.2m)|
|Low Water Shutoff||Electronic|
|Spoil Tank Capacity||1,200, 1,600, 2,000, 2,600, or 3,000 gal (4,542.5, 6,056.7, 7,570.8, 8,327.9, 9,842.1, or 11,356.2 L)|
|In Tank Washdown||Standard|
|Mechanical Full Tank Shutoff||Standard|
|Electric Full Tank Shutoff||Standard|
|Tank Lift Type||Dual Cyl|
|Type of Filters||2 Washable Micron Poly|
|Cyclonic Filtration System||Custom Dual 17″ x 55″ (43.2 cm x 139.7 cm) Cyclones|
|Boom Tool Length||3′-5′ (.9 m – 1.5 m)|
|Hose Diameter||6″ (15.2 cm)|
|Vacuum Mercury||18″ of hg (.6 bar)|
|Vacuum cfm||3,500 “free air” cfm (99.1 m3/min)|
|Blower Silencer||18″ x 6″ (45.7 cm x 1.8 m) Critical Grade Silencer|
|Suction Hose Storage||N/A /min|
|Gauges||Electronic Display w/7″ (17.8 cm) LCD Screen|
|Reach||14′ (4.3 m)|
|Movement||270 Degree Rotation|
|Hydraulic Rotation Boom||Standard|
|Hot Box Water Heater||Yes|
