About this product

The VXT series of MEGA VACS were designed for contractors focused on fast, safe and reliable Vacuum excavation from jobsites to dumpsites. The VXT series are available in 6, 8 and 10 yard spoil tank capacities. Meet project deadlines using a productive 6” PTO Driven MEGA VAC with 3200 cfm (90.6 m3/min) and 18” of mercury.

Industry Leading Support

Vermeer by McLaughlin products are sold and serviced by a network of local dealers who have parts, road service trucks and highly trained technicians.

Product Videos

Key Features

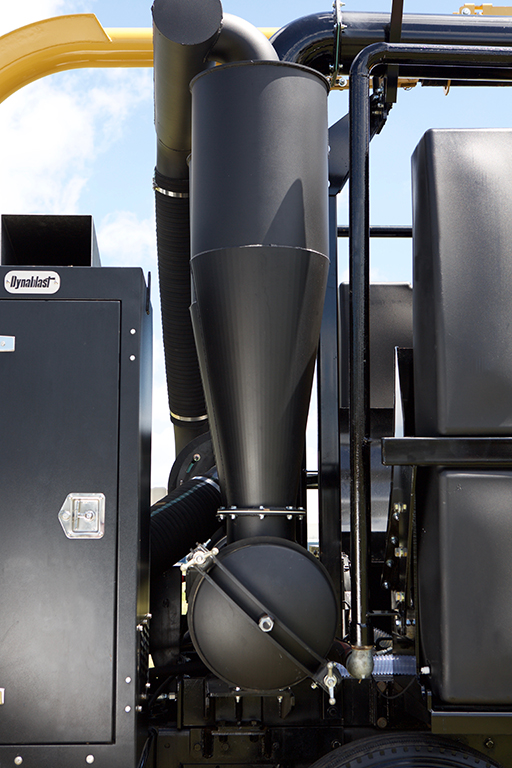

3-STAGE CYCLONIC FILTRATION

Designed specifically for 3,200 cfm (90.6 m3/min) blower systems, this unique filtration system allows for wet or dry vacuum excavation, while prolonging filter life and keeping maintenance costs low.

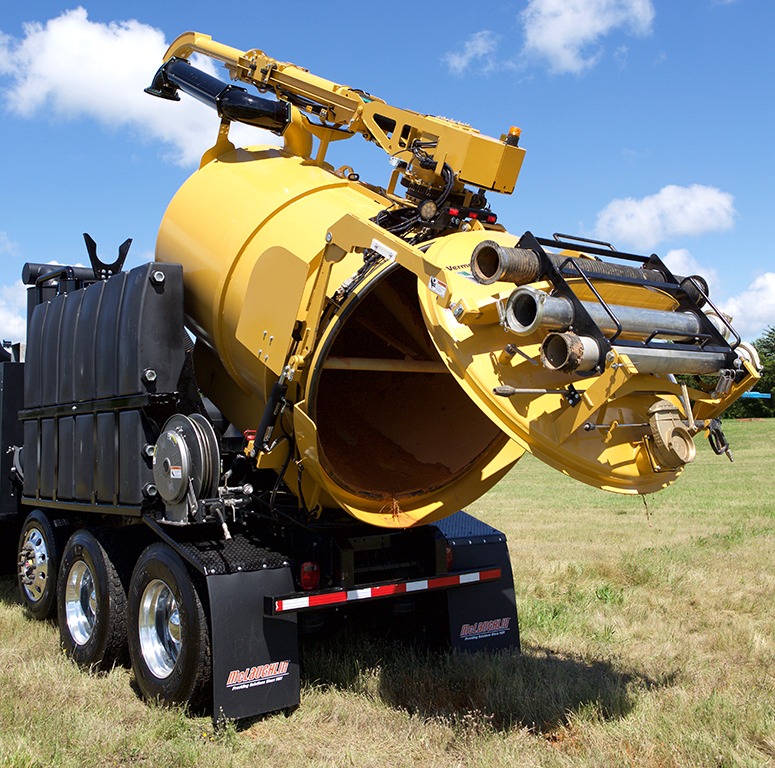

PATENTED “CAM-OVER” HYDRAULIC REAR DOOR

Provides a 360-degree positive seal, without additional clamping requirements. The highly reliable cam-over design has no in-tank moving parts, so all maintenance is external.

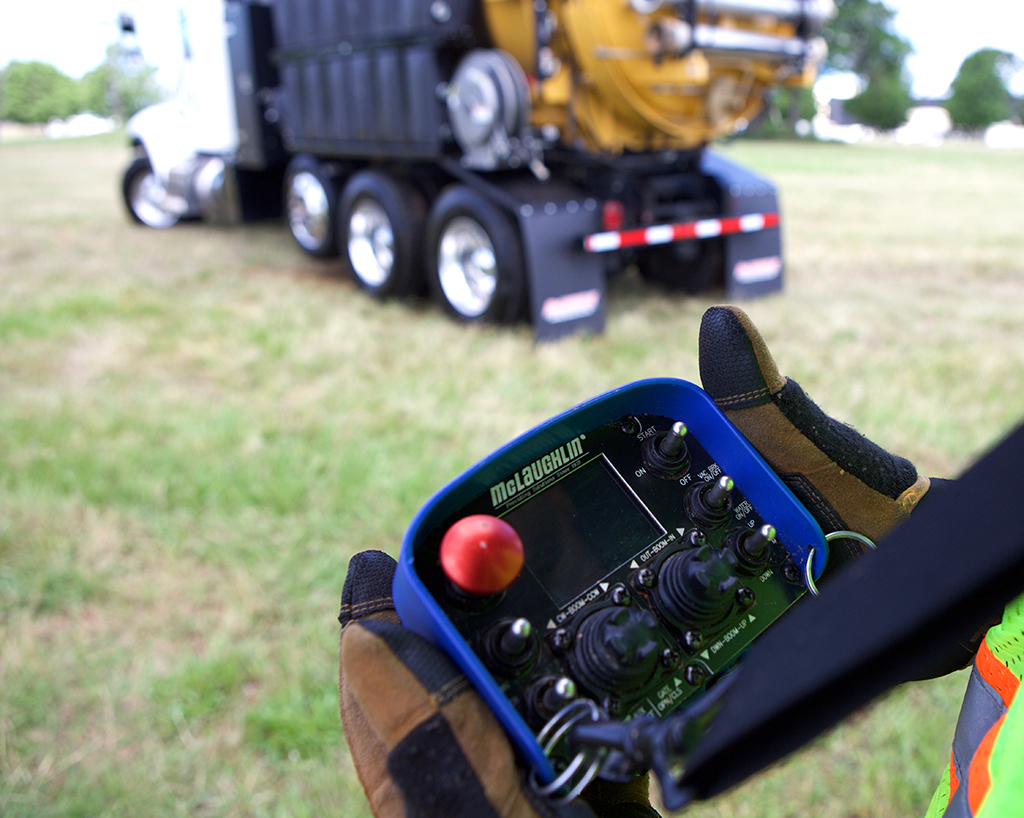

CAN CONTROLS: FULL-FUNCTION REMOTE CONTROL

The Magnetek  Mini-MBT radio remote controls all machine functions and delivers vital machine information through its display. The remote easily straps to the operator, and features an emergency stop.  Includes Vacuum Neutral Mode where air is able to run and circulate through the blower without suction or vacuum in the tank, allowing engine and blower to “unload” or free run when not in use to prolong the blower and engine life.

VX200 Large Hose Diameter

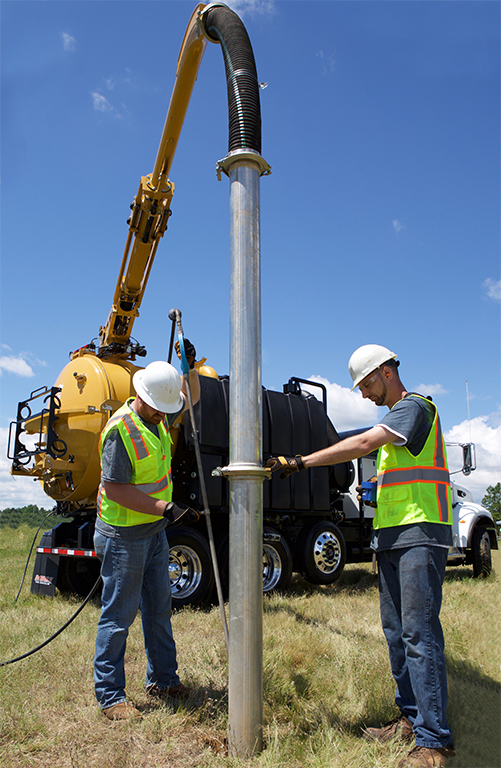

LARGER HOSE DIAMETER

The 6-inch (15.2 cm) , with a 3,200 cfm (90.6 m3/min) blower and 18 inches of hg (.6 bar), gets more work done and lets you take on bigger jobs.

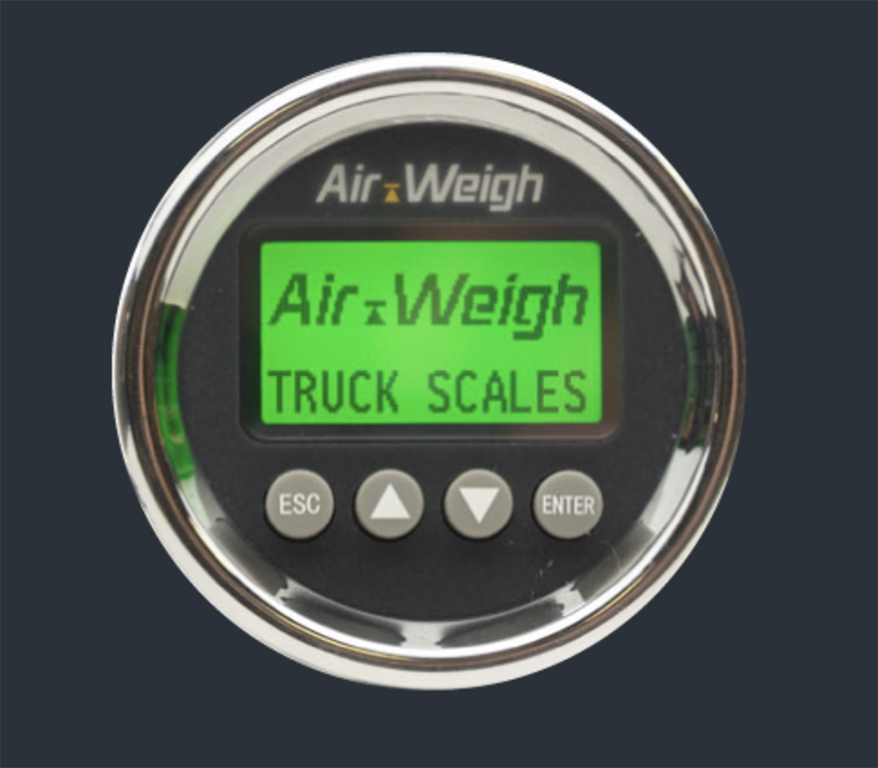

AIRWEIGH SCALE

Provides a second level of security, and clear visibility into what each load is weighing.  “Hit the sweet spot”. Most possible money, least possible risk!. Air Weigh Scale tied into control system – and programmed to provide operator feedback when load limits are reached.

*Scales are subject to calibration and verification by the equipment owner.

PRODUCTIVE 6″ TELESCOPING HYDRAULIC BOOM

Exclusive 19 foot telescoping boom maintains hose length during extension, provides 270 degrees of rotation and incorporates a remote controlled hydraulic valve for vacuum shut off.

OMSI GEARBOX

OMSI air-shift transfer case is a proven design used throughout the industry to provide the power of the engine to all vacuum components for maximum efficiency and power.

Available Options

Hydraulic boom

Hydraulic Boom

The industry-leading Hydraulic Boom offers speed, reliability and ease of operation. The telescoping design maintains hose length during boom extension and incorporates a 14″ (35.6 cm) bearing with a 270-degree range of motion. The boom features a 19′ (5.8 m) reach capability.

Hot Box Water Heater

Hot Box

The Hot Box option allows you to work with water heated up to 165 degrees F to improve digging in conditions such as frost.

Literature

Literature

Specifications

General Dimensions & Weights
 Length  389″ (987.63 cm)
 Height w/boom  155″ (393.70 cm)
 Width  102″ (259.08 cm)
 Wheel Base  273″ (693.42 cm)
 Cab to Tandem  203″ (515.62 cm)

Peterbilt 348 Truck Specifications
 Engine Model  PACCAR PX 9
 Engine  350 HP @ 1,000 ft/lb torque
 Transmission  3000RDS Allison 6-Speed Automatic

Weights -VXT6
 GVWR  54,000 lbs
 Dry Weight  N/A
 Steer Axle 14,600 lbs
 Rear Axle  40,000 lbs
 Pusher Axle  N/A

Weights -VXT8
 GVWR  68,000 lbs
 Dry Weight  N/A
 Steer Axle 14,600 lbs
 Rear Axle  40,000 lbs
 Pusher Axle  13,500 lbs

Weights -VXT10
 GVWR  74,600 lbs
 Dry Weight  N/A
 Steer Axle 14,600 lbs
 Rear Axle  40,000 lbs
 Pusher Axle  20,000 lbs

Water Tanks
 VXT6  410 gal
 VXT8 & VXT10  800 gal
 Water Pump  10 gpm @ 3,000 psi (37.9 L/min @ 206.8 bar)
 High Pressure Hose Length  50′ (15.2m)
 Low Water Shutoff  Electronic

Spoil Tank
 Spoil Tank Capacity VXT6 = 1,200 gal                                                          VXT8 = 1,600 gal                                                  VXT10 = 2,000 gal
 Door Type  Hydraulic
 In Tank Washdown  Standard
 Mechanical Full Tank Shutoff  Standard
 Electric Full Tank Shutoff  Standard
 Tank Lift Type  Dual Cyl

Vacuum
 Type of Filters  2 Washable Micron Poly
 Cyclonic Filtration System  Custom Dual 17″ x 55″ (43.2 cm x 139.7 cm) Cyclones
 Boom Tool Length  3′ – 5′ (.9 m – 1.5 m)
 Hose Diameter  6″ (15.2 cm)
 Vacuum Mercury  18″ of hg (.6 bar)
 Vacuum cfm  3,200 cfm (90.6 m3/min)
 Blower Silencer  18″ x 6″ (45.7 cm x 1.8 m) Critical Grade Silencer

Control Panel
 Gauges  Electronic Display w/7″ (17.8 cm) LCD Screen

Full Hydraulic Boom -Standard
 Reach  19′ (5.8 m)
 Movement  270 Degree Rotation
 Remote Control  Wireless

Available Options
 Hydraulic Rotation Boom  Standard
 Hot Box Water Heater  Yes
